| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | GFBFST20I |
| Additional Information | Overall Dimension 3.27 Inch Length x 1.75 Inch Width x 1.47 Inch Depth; Configuration Type 5-20R; Power Rating 1 HP; Applicable Standard ADA, Federal Specification NEMA WD-6 |
| Amperage Rating | 20 A |
| Application | Commercial Grade |
| Approval | UL, CSA, NEC |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems;Autoguard[R] |
| Carton Quantity | 10 |
| Catalog Number | GFBFST20I |
| Color | Ivory |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Connection | Terminal Screws |
| CountryOfOrigin | CN |
| Current Amperage Rating | 20 A |
| Current Rating | 20 Amp |
| DDCATEGORY | 573 |
| Description Long | Power Protection Devices, Self Test Faceless GFCI, 20A 125V, 2-Pole 3-Wire Grounding, Ivory |
| Description Marketing Copy | AUTOGUARD Self Test Technology 1st introduced by Hubbell over 10 years agoself test monitoring now required in 2015 UL 943 GFCI Safety Standard Hubbell AUTOGUARD GFCI receptacles continually test and monitor for people protection capability? automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur. |
| Description Short | Power Protection Devices, Self Test Faceless GFCI, 20A 125V, 2-Pole 3-Wire Grounding, Ivory |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Patented AUTOGUARD self test technology;Internal back wiring clamp and guide for quick and secure termination;Triple wipe construction |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 125 V |
| Families | 573 |
| Family Description | Receptacles & Surge Protectors |
| Grade | Commercial |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 20A COM SELF TEST FACELESS GFR IVORY;20A COM SLF-TST RCPT |
| Item Number | 12219 |
| Long Description | RECEPTACLE, BLANKFACE, SELF-TEST TYPE; NYLON (FACE/BASE) MATERIAL; IVORY COLOR; 3 WIRE(S); COMMERCIAL GRADE; UL, CSA, NEC APPROVAL; 125 VOLT VOLTAGE RATING; 20 AMP CURRENT RATING; 2 POLE(S); BACK, SIDE WIRING; AUTOGUARD[R] BRAND |
| MSDS Form Number | * |
| Material | Thermoplastic;Nylon (Face/Base) |
| Mounting | Mounting Screws |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Product Description | 20A COM SELF TEST FACELESS GFR IVORY |
| Product Keywords | WEBREADY |

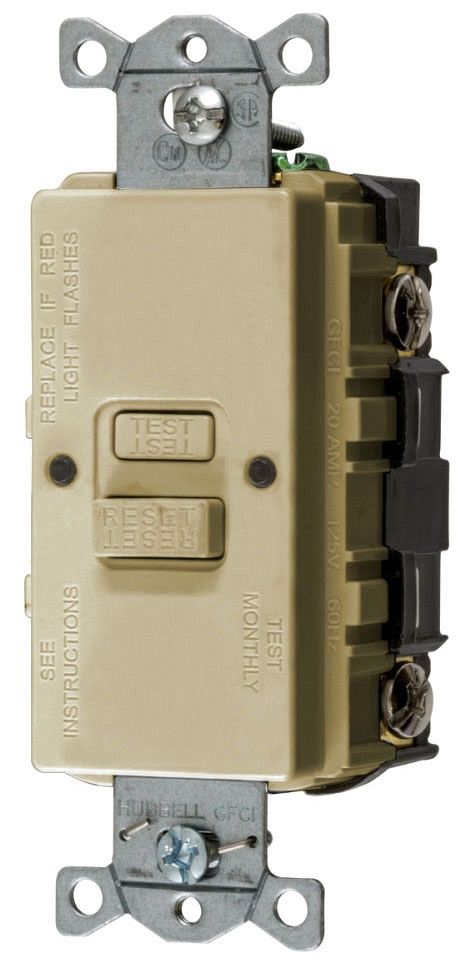

| Product Name | Heavy Duty Commercial AUTOGUARD Self-Test GFCI with Blank Face, 20A, Ivory |
| ProductLine | HUBW |
| Series | Heavy Duty |
| Size | Standard Sized Product |
| Special Features | Blank Face, Self Test |
| Standard | Meets All NEC Requirements |
| Sub Brand | Straight Blade GFCI Receptacles |
| Type | Standard;Blankface, Self-Test |
| UNSPSC | 39121406 |
| UPC | 88377812219 |
| Vendor Name | HUBBELL WIRING SYSTEMS |
| Vendor Number | 883778 |
| Vendor Short Name | HWS |
| Voltage Rating | 125 V;125 Volt |
| Voltage Rating Description | 125 V |
| Wattage | 2,500 W |
| Wire Size | #14 AWG to #12 AWG |
| Wiring | Back, Side |
