| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | GFRST20U |
| Amperage Rating | 20.000000000000000 A |
| Application | Commercial Grade |
| Base Price | 0.0000 |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Connection | Terminal Screws |
| CountryOfOrigin | US |
| Current Amperage Rating | 20 A |
| DDCATEGORY | 573 |
| Description Long | Straight Blade Devices, Receptacle, GFCI, Commercial Grade, Self Test, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Brown, US Product. |
| Description Marketing Copy | AUTOGUARD Self Test Technology 1st introduced by Hubbell over 10 years agoself test monitoring now required in 2015 UL 943 GFCI Safety Standard Hubbell AUTOGUARD GFCI receptacles continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur. |
| Description Short | Straight Blade Devices, Receptacle, GFCI, Commercial Grade, Self Test, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Brown, US Product |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Internal back wiring clamp and guide for quick and secure termination;Patented AUTOGUARD self test technology;Triple wipe construction |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 125 V |
| Families | 573 |
| Family Color | Brown |
| Family Description | Receptacles & Surge Protectors |
| Insulation | Insulated per UL |
| InvoiceDescription | 20A COMM SELF TEST US GFR BROWN;20A US GF RCPT |
| Material Quality | Thermoplastic/Composite |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire Grounding |
| Phase | 1 |
| Product Description | 20A COMM SELF TEST US GFR BROWN |
| Product Keywords | WEBREADY |

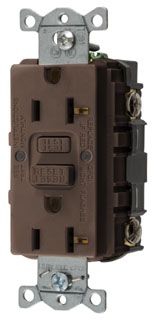

| Product Name | Heavy Duty Commercial AUTOGUARD Self-Test GFCI Receptacle (Assembled In USA), 20A, Brown |
| ProductLine | HUBW |
| Series | Heavy Duty |
| Size | Standard Sized Product |
| Special Features | Self-Test |
| Standard | Meets All NEC Requirements |
| Temperature Rating Maximum | 167.00000 F |
| Temperature Rating Minimum | -40.00000 F |
| Type | Standard |
| UNSPSC | 39121406 |
| UPC | 88377812423 |
| Voltage Rating | 125 V |
| Voltage Rating Description | 125 V |
| Wattage | 2500 W |
| Wire Size | #14 to #12 |
