| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | GFRST20W |
| Additional Information | ADA Compliant; Power Rating 1 HP; Applicable Standard NEMA WD-6 |
| Amperage Rating | 20 A |
| Application | Commercial Grade |
| Approval | UL 943, CSA |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems;Autoguard [R], Style Line [R] |
| Carton Quantity | 10 |
| Catalog Number | GFRST20W |
| Color | White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | 5-20R |
| Connection | Terminal Screws |
| CountryOfOrigin | CN |
| Current Amperage Rating | 20 A |
| Current Rating | 20 Amp |
| DDCATEGORY | 573 |
| Description Long | Power Protection Devices, Receptacle, Self Test, GFCI, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White |
| Description Marketing Copy | AUTOGUARD Self Test Technology 1st introduced by Hubbell over 10 years agoself test monitoring now required in 2015 UL 943 GFCI Safety Standard Hubbell AUTOGUARD GFCI receptacles continually test and monitor for people protection capability? automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur. |
| Description Short | Tamper-Resistant Self Test GFCI 20A Receptacle |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Patented AUTOGUARD self test technology;Internal back wiring clamp and guide for quick and secure termination;Triple wipe construction |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 125 V |
| Families | 573 |
| Family Description | Receptacles & Surge Protectors |
| Grade | Heavy Duty Commercial |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 20A COMM SELF TEST GFR WHITE;20A COM SLF-TST RCPT |
| Item Number | 12215 |
| Long Description | GFCI DUPLEX RECEPTACLE, NYLON FACE/BASE MATERIAL; WHITE COLOR; 5-20R CONFIGURATION; 3 WIRE(S); HEAVY DUTY COMMERCIAL GRADE; UL 943, CSA APPROVAL; 125 VOLT AC AT 60 HERTZ VOLTAGE RATING; 20 AMP CURRENT RATING; 2 POLE(S); BACK, SIDE WIRING |
| MSDS Form Number | * |
| Material | Thermoplastic;Nylon Face/Base |
| Model | GFRST20 |
| Mounting | Mounting Screws |
| NEMA Rating | 5-20R |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Product Description | 20A COMM SELF TEST GFR WHITE |
| Product Keywords | WEBREADY |

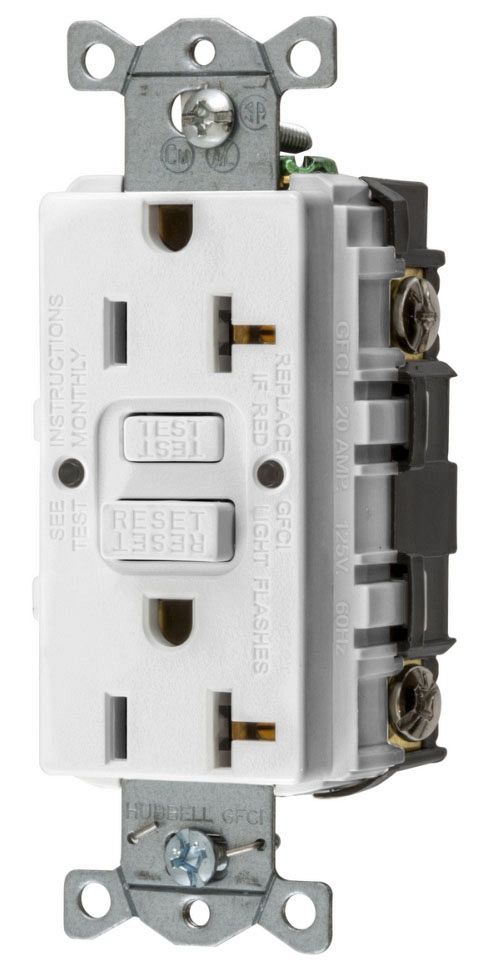

| Product Name | Heavy Duty Commercial AUTOGUARD Self-Test GFCI Receptacle, 20A, White |
| ProductLine | HUBW |
| Series | Heavy Duty |
| Size | Standard Sized Product |
| Special Features | Self-Test |
| Standard | Meets All NEC Requirements |
| Sub Brand | Straight Blade GFCI Receptacles |
| Type | Standard |
| UNSPSC | 39121406 |
| UPC | 88377812215 |
| Vendor Name | HUBBELL WIRING SYSTEMS |
| Vendor Number | 883778 |
| Vendor Short Name | HWS |
| Voltage Rating | 125 V;125 Volt AC at 60 Hertz |
| Voltage Rating Description | 125 V |
| Wattage | 2,500 W |
| Wire Size | #14 AWG to #12 AWG |
| Wiring | Back, Side |
