| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | GFTWRST20GY |
| Additional Information | ADA Compliant; Constructional Feature Tamper and Weather Resistant; Power Rating 1 HP; Material Brass (Contact), Zinc Plated Steel (Strap/Mounting Screw); Applicable Standard NEC, Federal Specification NEMA WD-6 |
| Amperage Rating | 20 A |
| Application | Commercial Grade |
| Approval | UL 943, UL (Canada and US), CSA |
| Base Price | 0.0000 |
| Brand Name | Autoguard [R], Style Line [R] |
| Catalog Number | GFTWRST20GY |
| Color | Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | NEMA 5-20R |
| Connection | Terminal Screws |
| CountryOfOrigin | CN |
| Current Amperage Rating | 20 A |
| Current Rating | 20 Amp |
| DDCATEGORY | 573 |

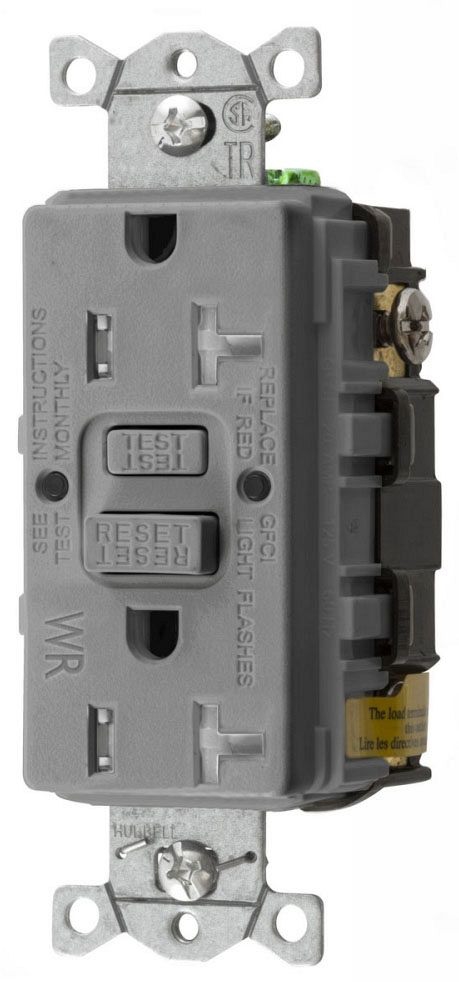

| Description Long | Power Protection Devices, Receptacle, Self Test, GFCI, TRWR, Commercial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Gray |
| Description Marketing Copy | AUTOGUARD Self Test Technology 1st introduced by Hubbell over 10 years agoself test monitoring now required in 2015 UL 943 GFCI Safety Standard Hubbell AUTOGUARD GFCI receptacles continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur. |
| Description Short | Power Protection Devices, Receptacle, Self Test, GFCI, TRWR, Commercial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Gray |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Meets NEC requirements for TR (517-18c) and WR (406.9), UV and corrosion resistance for harsh and damp applications;Patented AUTOGUARD self test technology;Patented shutter design for tamper-resistant protection;Protects against line and load reversal, no power to the face or downstream if device is miswired |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 125 V |
| Families | 573 |
| Family Color | Gray |
| Family Description | Receptacles & Surge Protectors |
| Grade | Commercial |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 20A COMM SELF TEST TRWR GFR GRAY (MS90);SELF TEST GF RCPT |
| Item Number | 12266 |
| Long Description | GFCI RECEPTACLE, STANDARD TYPE; NYLON MATERIAL; GRAY COLOR; NEMA 5-20R CONFIGURATION; 3 WIRE(S); COMMERCIAL GRADE; UL 943, UL (CANADA AND US), CSA APPROVAL; 125 VOLT VOLTAGE RATING; 20 AMP CURRENT RATING; 2 POLE(S); SIDE, BACK WIRING |
| MSDS Form Number | * |
| Material | Nylon |
| Material Quality | Thermoplastic/Composite |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Wires | 3-Wire Grounding |
| Pallet Quantity | 2240 |
| Phase | 1 |
| Product Description | 20A COMM SELF TEST TRWR GFR GRAY |
| Product Keywords | WEBREADY |
| Product Name | Replaced By GFRTW20GRY - Heavy Duty Commercial Weather Resistant AUTOGUARD Self-Test GFCI Receptacle, 20A, Gray |
| ProductLine | HUBW |
| Series | Heavy Duty |
| Size | Standard Sized Product |
| Special Features | Self Test, Tamper and Weather Resistant |
| Standard | Meets All NEC Requirements |
| Type | Tamper-Resistant, Weather Resistant;Standard |
| UNSPSC | 39121406 |
| UPC | 88377812266 |
| Vendor Name | HUBBELL WIRING SYSTEMS |
| Vendor Number | 883778 |
| Vendor Short Name | HWS |
| Voltage Rating | 125;125 Volt |
| Voltage Rating Description | 125 V |
| Wattage | 2500 W |
| Wire Size | #14 to #12 |
| Wiring | Side, Back |
