| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL1204W |
| Action | DPDT |
| Amperage Rating | 15 A |
| Application | Back and Side Wired |
| Base Price | 0.0000 |
| Connection | Back and Side Wired |
| Contact Configuration | Two Position |
| Contact Rating | Per UL 20 |
| CountryOfOrigin | CN |
| Current Amperage Rating | 15 A |
| Current Rating | 15 A |
| DDCATEGORY | 572 |

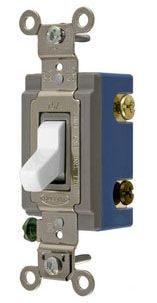

| Description Long | Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Four Way, 15A 120/277V AC, Back and Side Wired, White Toggle |
| Description Short | Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Four Way, 15A 120/277V AC, Back and Side Wired, White Toggle |
| EU RoHS Indicator | No |
| Enclosure | None |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Abuse resistant nylon toggle;Large brass binding head screws with deep slots;Strip gauge for accurate wiring |
| FV Current Amperage Rating | 15 A |
| FV Voltage Rating Description | 120-277 VAC |
| Families | 572 |
| Family Color | White |
| Family Description | General Purpose Switches |
| Insulation | False |
| InvoiceDescription | 4 WAY TOG, IND GRD, 15A 120/277V, WH;15A 120/277V 4WAY SW;4WY 15A 277V TGL SW |
| Mounting | Screw Mount |
| Number Of Poles | Double Pole |
| Operating Cycles | 50,000 |
| Operating Temperature Maximum | 167 F |
| Operating Temperature Minimum | -40 F |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75C, Min. continuous: -40C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Product Description | 4 WAY TOG, IND GRD, 15A 120/277V, WH |
| Product Keywords | WEBREADY |
| Product Name | Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Four Way, 15A 120/277V AC, Back and Side Wired Toggle |
| ProductLine | HUBW |
| Series | Extra Heavy Duty |
| Size | 4.06 in x 1.31 in x 1.87 in |
| Special Features | Standard Product |
| Standard | UL Listed |
| Switch Type | Toggle |
| Temperature Rise Max | 30C maximum at rated current |
| Type | Toggle |
| UNSPSC | 39122211 |
| UPC | 78358518907 |
| Voltage Rating | 120-277 VAC |
| Voltage Rating Description | 120-277 VAC |
| Wattage | 4155 W |
