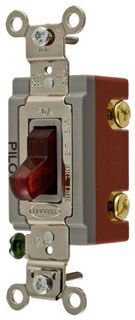

HUBW HBL1221PLU

SP TOG, IND GRD 20A 120/277V PL RD USA

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS
SP TOG, IND GRD 20A 120/277V PL RD USA

Mouse over image to zoom, click to enlarge

Description:
SP TOG, IND GRD 20A 120/277V PL RD USA

UPC:  78358500506

Part Number: HBL1221PLU

UNSPSC: 39122211

Status:  UNKNOWN

Retail Price:  $78.60 / EA
Your Price:  $45.44 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo HBL1221PLU
Action Positive Snap
Amperage Rating 20A A
Application Heavy Duty Industrial
Base Price 0.0000
Connection Side Wired Only
Contact Configuration Two Position
Contact Rating Per UL 20
CountryOfOrigin US
DDCATEGORY 572
Description Long Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Red
Description Short Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Red
EU RoHS Indicator No
Enclosure None
Environmental Conditions Indoor Dry unless protected by additional means
Families 572
Family Color Red
Family Description General Purpose Switches
Insulation False
InvoiceDescription SP TOG, IND GRD 20A 120/277V PL RD USA;20A120V TGL SW
Mounting Screw Mount
Number Of Poles 1
Operating Cycles 50,000
Operating Temperature Maximum 167.00000 F
Operating Temperature Minimum -40.00000 F
Product Description SP TOG, IND GRD 20A 120/277V PL RD USA
Product Keywords WEBREADY
Product Name Toggle switch
ProductLine HUBW
Size Standard Sized
Special Features Made in the USA, Pilot
Standard NEMA WD1, UL20
Switch Type Toggle
Type General Purpose Switches
UNSPSC 39122211
UPC 78358500506
Voltage Rating 120/277 V
Wattage 5540 W

Resources

CatalogNumber HBL1221PLU
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
