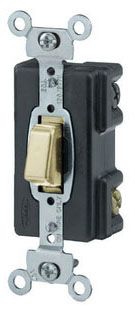

| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL1281I |
| Action | Snap |
| Actuator | Push Button |
| Amperage Rating | 20 A |
| Application | Heavy Duty Industrial;Industrial |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems;PresSwitch[R] |
| Carton Quantity | 10 |
| Catalog Number | HBL1281I |
| Color | Brown;Ivory |
| Commerce Sector | Construction Materials |
| Commodity Code | 45100 |
| Commodity Description | Pressure Switches |
| Connection | Terminal Screws |
| Contact Configuration | Two Position |
| CountryOfOrigin | PR |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A;20 Ampere |
| DDCATEGORY | 2178 |
| Description Long | Switches and Lighting Controls, Industrial Grade, PresSwitch, General Purpose AC, Single Pole, 20A 120/277V AC, Screw Terminals, Ivory |
| Description Short | Switches and Lighting Controls, Industrial Grade, PresSwitch, General Purpose AC, Single Pole, 20A 120/277V AC, Screw Terminals, Ivory |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Large brass binding head screws with deep slots;Thread cleaning captive mounting screw;Strip gauge for accurate wiring |
| FV Voltage Rating Description | 120-277 VAC | |
| Families | 2178 |
| Family Description | Pressure Switches |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | SP PRESSSWITCH, 20A, IV;IV SP 20A AC PB SW |
| Item Number | 01682 |
| Item Type | Single Pole Toggle Switch |
| Long Description | PRESSURE SWITCH, PUSHBUTTON TYPE; THERMOSET (BODY), NYLON (TOGGLE) MATERIAL; 1.5 INCH W X 0.97 INCH D X 3.28 INCH H SIZE; IVORY COLOR; SINGLE POLE OPERATION TYPE; UL, CSA APPROVAL; INDUSTRIAL APPLICATION; 120 TO 277 VAC VOLTAGE RATING |
| MSDS Form Number | * |
| Material | Thermoset (Body), Nylon (Toggle) |
| Model | HBL1281 |
| Mounting | Mounting Screws |
| Noun | * |
| Number Of Poles | 1 |
| Operating Cycles | 10k |
| Operating Temperature | Maximum continuous 75C and minimum -40C without Impact |
| Operation Type | Single Pole |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75C, Min. continuous: -40C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Power Rating | 1 HP at 120 V, 2 HP at 277 V |
| Product Description | SP PRESSSWITCH, 20A, IV |
| Product Keywords | WEBREADY |
| Product Name | Switches and Lighting Controls, Industrial Grade, PresSwitch, General Purpose AC, Single Pole, 20A 120/277V AC, Screw Terminals, Ivory |
| ProductLine | HUBW |
| Series | General Purpose |
| Size | 3.28 in x 1.5 in x 1.45 in;1.5 Inch W x 0.97 Inch D x 3.28 Inch H |
| Special Features | Standard Product |
| Standard | UL Listed |
| Sub Brand | Switches and Lighting Controls |
| Temperature Rise Max | 30C maximum at rated current |
| Type | PresSwitches;Pushbutton |
| UNSPSC | 39122216 |
| UPC | 78358501682 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 120 to 277 VAC |
| Voltage Rating Description | 120-277 VAC |
| Wattage | 5,540 W |
| Wiring | Side |
