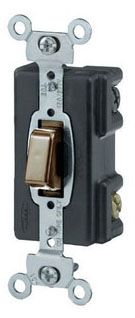

| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL1282 |
| Actuator | Push Button |
| Additional Information | Temperature Rating -40 to 75 Deg C; Includes Ground Screw |
| Amperage Rating | 20 A |
| Application | Heavy Duty Industrial;Industrial |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | PresSwitch[R] |
| Catalog Number | HBL1282 |
| Certified Listed | Buy American Act Compliant, BABA Compliant (All status valid till December 2024) |
| Color | Brown |
| Commerce Sector | Construction Materials |
| Commodity Code | 45100 |
| Commodity Description | Pressure Switches |
| Connection | Screwed Terminal |
| Contact Configuration | Two Position |
| CountryOfOrigin | PR |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A;20 Ampere |
| DDCATEGORY | 2178 |
| Description Long | Switches and Lighting Controls, Industrial Grade, PresSwitch, General Purpose AC, Double Pole, 20A 120/277V AC, Screw Terminals, Brown |
| Description Short | Switches and Lighting Controls, Industrial Grade, PresSwitch, General Purpose AC, Double Pole, 20A 120/277V AC, Screw Terminals, Brown |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Large brass binding head screws with deep slots;Strip gauge for accurate wiring;Thread cleaning captive mounting screw |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | Buy American Act Compliant, BABA Compliant (All status valid till December 2024) |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 120-277 VAC |
| Families | 2178 |
| Family Color | Brown |
| Family Description | Pressure Switches |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | DP PRESSSWITCH, 20A, BR;BRN SP 20A AC PB SW |
| Item Number | 01685 |
| Long Description | PRESSURE SWITCH, PUSHBUTTON TYPE; THERMOSET (BODY), NYLON (TOGGLE) MATERIAL; 1.5 INCH W X 0.97 INCH D X 3.28 INCH H SIZE; BROWN COLOR; DOUBLE POLE OPERATION TYPE; UL, CSA APPROVAL; INDUSTRIAL APPLICATION; 120 TO 277 VAC VOLTAGE RATING |
| MSDS Form Number | * |
| Material | Thermoset (Body), Nylon (Toggle) |
| Model | PresSwitches;HBL1282 |
| Mounting | Mounting Screws |
| Noun | * |
| Number Of Poles | Double Pole |
| Operating Cycles | 10,000 |
| Operating Temperature Maximum | 167 F |
| Operating Temperature Minimum | -40 F |
| Operation Type | Double Pole |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75C, Min. continuous: -40C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Power Rating | 1 HP at 120 V, 2 HP at 277 V |
| Product Description | DP PRESSSWITCH, 20A, BR |
| Product Keywords | WEBREADY |
| Product Name | Switches and Lighting Controls, Industrial Grade, PresSwitch, General Purpose AC, Double Pole, 20A 120/277V AC, Screw Terminals, Brown |
| ProductLine | HUBW |
| Series | General Purpose |
| Size | 3.28 in x 1.5 in x 1.45 in;1.5 Inch W x 0.97 Inch D x 3.28 Inch H |
| Special Features | Standard Product |
| Standard | UL Listed |
| Temperature Rise Max | 30C maximum at rated current |
| Type | PresSwitches;Pushbutton |
| UNSPSC | 39122216 |
| UPC | 78358501685 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 120-277;120 to 277 VAC |
| Voltage Rating Description | 120-277 VAC | |
| Wattage | 5540 W |
| Wiring | Side |
