| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL12SP |
| Actuator | Bat Handle |
| Additional Information | POWER RATING 3/4 HP AT 125 TO 250 VAC; MOUNTING TYPE PANEL |
| Amperage Rating | 10/20 A |
| Application | On/On |
| Base Price | 0.0000 |
| Body Material | IMPACT RESISTANT THERMOPLASTIC |
| Brand Name | HUBBELL. |
| Catalog Number | HBL12SP |
| Color | Metallic |
| Commerce Sector | Construction Materials |
| Commodity Code | 51100 |
| Commodity Description | General Purpose Switches |
| Connection | Spade Terminal |
| Contact Configuration | Two Position;SPDT |
| Contact Rating | As Indicated |
| CountryOfOrigin | CN |
| Current Amperage Rating | 10/20 A |
| Current Rating | 20 AMPERE AT 125 VAC, 10 AMPERE AT 250 VAC |
| DDCATEGORY | 572 |

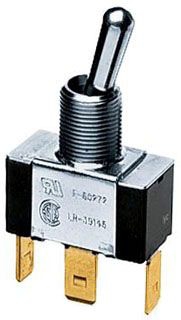

| Description Long | Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Single Pole Double Throw, 10A 250V/10A 125V, Spade Terminals, |
| Description Short | Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Single Pole Double Throw, 10A 250V/10A 125V, Spade Terminals, |
| Directory | CIS |
| EU RoHS Indicator | No |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Nickel Plated for Corrosion Resistance |
| FV Current Amperage Rating | 10/20 A |
| Families | 572 |
| Family Description | General Purpose Switches |
| Horsepower Maximum | 0.75 |
| Image Location | * Image |
| Indicator | Comes with Indicator Plate |
| Industry | ELX |
| Interrupt Rating | 10A 250V AC, 20A 125V AC |
| InvoiceDescription | PANEL SW, SPDT, SPADE TERM;SPDT BAT HDL PNL-MT SW |
| Item Number | 01675 |
| Long Description | PANEL SWITCH, HEAVY DUTY BAT HANDLE TYPE; 0.56 INCH W X 1.13 INCH H SIZE; SPDT CONTACT CONFIGURATION; MAINTAINED ON/MAINTAINED ON OPERATION TYPE; 125/250 VAC VOLTAGE RATING; 0.47 INCH-32 TPI BUSHING MOUNTING |
| MSDS Form Number | * |
| Material | Metallic Handle |
| Model | HBL |
| Mounting | Panel Mount;0.47 INCH-32 TPI BUSHING |
| Mounting Method | Panel Mount |
| Noun | * |
| Number Of Poles | Single Pole |
| Operating Cycles | Not Rated |
| Operating Temperature | Maximum continuous 75C and minimum -40C without Impact |
| Operation Type | MAINTAINED ON/MAINTAINED ON |
| Performance | Environmental - Operating Temperatures - Max Continuous- 75 C, Minimum -40 C Without Impact |
| Product Description | PANEL SW, SPDT, SPADE TERM |
| Product Keywords | WEBREADY |
| Product Name | Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Single Pole Double Throw, 10A 250V/10A 125V, Spade Terminals, |
| ProductLine | HUBW |
| Series | Single Pole/Double Throw |
| Size | 2.09 in x 0.56 in x 1.12 in;0.56 INCH W X 1.13 INCH H |
| Special Features | Standard Product |
| Standard | UL Listed |
| Terminal Type | 0.25 INCH MALE TAB SPADE |
| Toggle Material | NICKEL PLATED BRASS |
| Type | General Purpose;HEAVY DUTY BAT HANDLE |
| UNSPSC | 39122239 |
| UPC | 78358501675 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 250/125 VAC;125/250 VAC |
| Wattage | 2500 W |
