| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL13R92D |
| Additional Information | Includes Enclosure; Wiring Style Side |
| Application | Red Slide;Outdoor |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Circuit-Lock[R] |
| Catalog Number | HBL13R92D |
| Commerce Sector | Construction Materials |
| Commodity Code | 31720 |
| Commodity Description | Non-Fusible Disconnect Safety Switches |
| Connection | Pressure Screw Terminals |
| CountryOfOrigin | PR |
| Current Amperage Rating | 30 A |
| Current Rating | 30;30;30 Ampere |
| DDCATEGORY | 1719 |
| Description Long | Switches and Lighting Controls, Industrial Grade, Toggle Switches, Motor Disconnects, Double Pole, 30A 600V AC, Back and Side Wired, Aluminum, NEMA 3R Enclosure with Switch |
| Description Short | Switches and Lighting Controls, Industrial Grade, Toggle Switches, Motor Disconnects, Double Pole, 30A 600V AC, Back and Side Wired, Aluminum, NEMA 3R Enclosure with Switch |
| Directory | CIS |
| EU RoHS Indicator | No |
| Enclosure | NEMA 3R |
| Enclosure Type | NEMA 3R |
| FEATURES Bullets | Hubbell Wiring Devices, Switches and Lighting Controls, IndustrialGrade, Toggle Switches, Motor Disconnects, Double Pole, 30A 600V AC,Back and Side Wired, Aluminum, NEMA 3R Enclosure with Switch |
| FV Current Amperage Rating | 30 A |
| Families | 1719 |
| Family Description | Non-Fusible Disconnect Safety Switches |
| Horsepower Maximum | 15 |

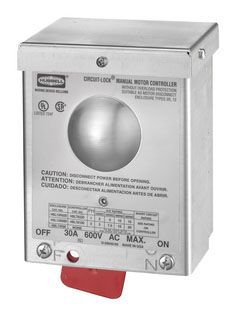

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 30A 600V 2P DISC SW W/NEMA 3R (MS90);30A 600V 2P DISC SW |
| Item Number | 20270 |
| Long Description | DISCONNECT SWITCH, 4.4 INCH W X 3.3 INCH D X 5.52 INCH H SIZE; 1 PHASE(S); UL, CSA APPROVAL; OUTDOOR APPLICATION; 120/240/480/600 VAC VOLTAGE RATING; NEMA 3R ENCLOSURE; 30 AMPERE CURRENT RATING |
| MSDS Form Number | * |
| Material Mounting Hardware | Screw Mounting |
| Mounting | Screw Mount |
| Noun | * |
| Number Of Phases | Single |
| Number Of Poles | 2 |
| Power Rating | 18000 W;2 HP at 120 VAC 1-Phase, 5 HP at 240 VAC 1-Phase, 10 HP at 480 VAC 1-Phase, 15 HP at 600 VAC 1-Phase |
| Product Description | 30A 600V 2P DISC SW W/NEMA 3R (MS90) |
| Product Keywords | WEBREADY |
| Product Name | Industrial Grade, Toggle Switches, Motor Disconnects, Double Pole, 30A 600V AC, Back and Side Wired, Aluminum, NEMA 3R Enclosure with Switch |
| ProductLine | HUBW |
| Series | Non-Fused |
| Size | 5.52 in x 4.4 in x 3.3 in;4.4 Inch W x 3.3 Inch D x 5.52 Inch H |
| Special Features | Standard Product |
| Standard | UL508 |
| Standards RoHS Compliance Status | CM |
| Temperature Rating | Minimum Continuous -40 Deg C without Impact |
| Terminals | Terminal Screws |
| Type Of Motor Starter | Disconnect Switches |
| UNSPSC | 39121521 |
| UPC | 78358520270 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 600 V;120/240/480/600 VAC |
