HUBBELL WIRING DEVICES/KELLEMS

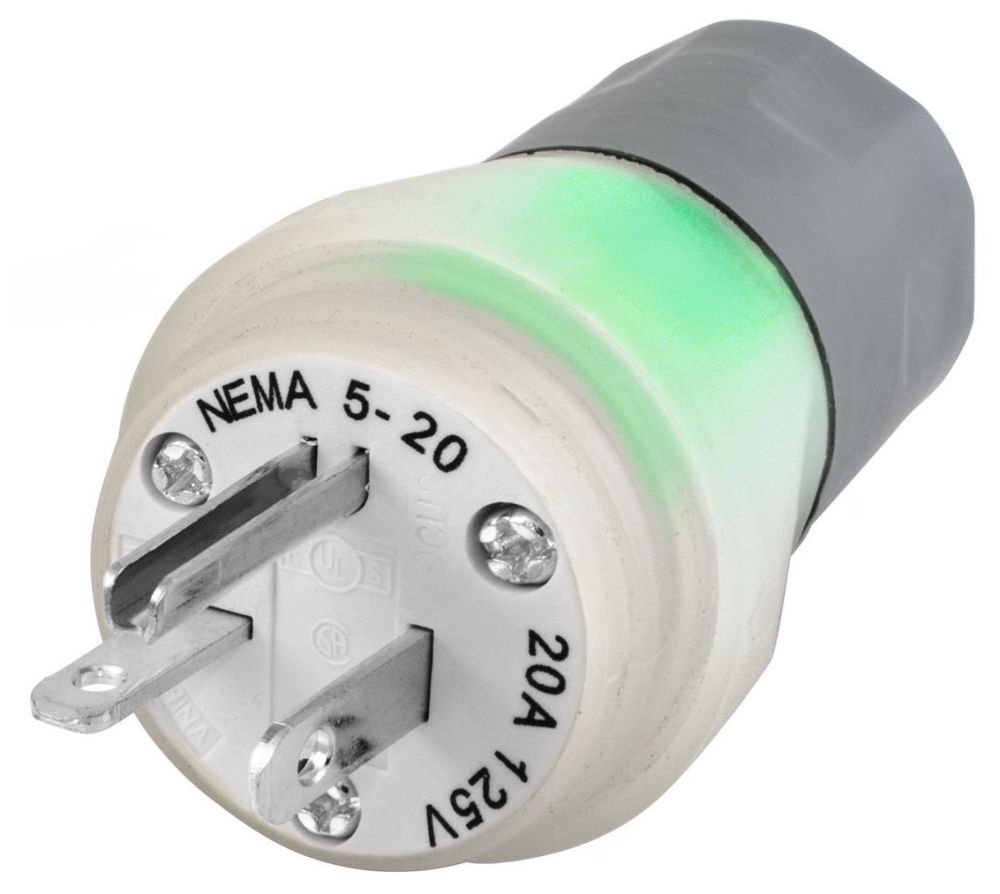

PLUG, W/TIGHT, 5-20P, 20A 125V, CL, WIRE

Mouse over image to zoom, click to enlarge

Description:
PLUG, W/TIGHT, 5-20P, 20A 125V, CL, WIRE

UPC:  78358558059

Part Number: HBL14W33AWC

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $77.80 / EA
Your Price:  $56.20 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo HBL14W33AWC
Accessories Watertight Connector, Watertight Receptacle with Lift Cover, Watertight Duplex Receptacle
Amperage Rating 20 AMP
Application Wet and Moist Environments
Base Price 0.0000
Connection Screwed Terminal
Cord Diameter 0.375-0.625 in
Cord Type All Portable
CountryOfOrigin PR
Current Amperage Rating 20 A
Current Rating 20 A
DDCATEGORY 0
Decorative Color Clear
Description Long Straight Blade Watertight Clear Plug 20A, 5-20P 125V, Thermoplastic Elastomer
Description Short Straight Blade Watertight Clear Plug 20A
EU RoHS Indicator Contact Manufacturer
Environmental Conditions Watertight
FEATURES Bullets Power indicating LED also confirms wiring condition of the device;Smooth body design minimizes collection points simplifying the wash down process;Strain relief nut always seals on the body, minimizing debris collection
FV Current Amperage Rating 20 A
FV Voltage Rating Description 125 V
Families 0
Family Description UnCategorized
InvoiceDescription PLUG, W/TIGHT, 5-20P, 20A 125V, CL, WIRE;2P 20A 125V PLUG
Material Elastomeric/Composite
Mounting Cord
NEMA Rating 5-20P
Number Of Poles 2 Pole
Number Of Wires 3 Wire
Performance "Electrical: Current Interrupting- Rated for current interruption per UL498;Electrical: Dielectric Voltage- 2500V AC;Electrical: Max Working Voltage- As marked;Electrical: Temperature Rise- 30C max per UL498 at rated current;Environmental: Moisture Resistance- UL Listed 4, 4X, 12, 6, 6P;Environmental: Operating Temperature- -40C (without impact) to +60C continuous;Environmental: UV resistance- All exposed materials are UV stabilized;Mechanical: Cord Accomodation- 0.375""-0.625"" (9.5-15.9)"
Phase 1
Product Description PLUG, W/TIGHT, 5-20P, 20A 125V, CL, WIRE
Product Keywords WEBREADY
Product Name PLUG, WATERTIGHT, 5-20P, 20A 125V, CLEAR, WIRING CONDITION
ProductLine HUBW
Series Watertight
Size Standard Sized
Special Features Illuminated
Standard Meets NEMA WD-1, WD-6 And ANSI Standards
Type PLUG
UNSPSC 39121402
UPC 78358558059
Voltage Rating 125
Voltage Rating Description 125 V
Wattage 2500 W
Wire Size #14 to #12
