| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL15DFGN |
| Amperage Rating | 150 A |
| Application | Temporary Electrical Power |
| Base Price | 0.0000 |
| Color | Green |
| Connection | Plug In |
| CountryOfOrigin | CN |
| Current Amperage Rating | 150 A |
| Current Rating | 150 A |
| DDCATEGORY | 579 |

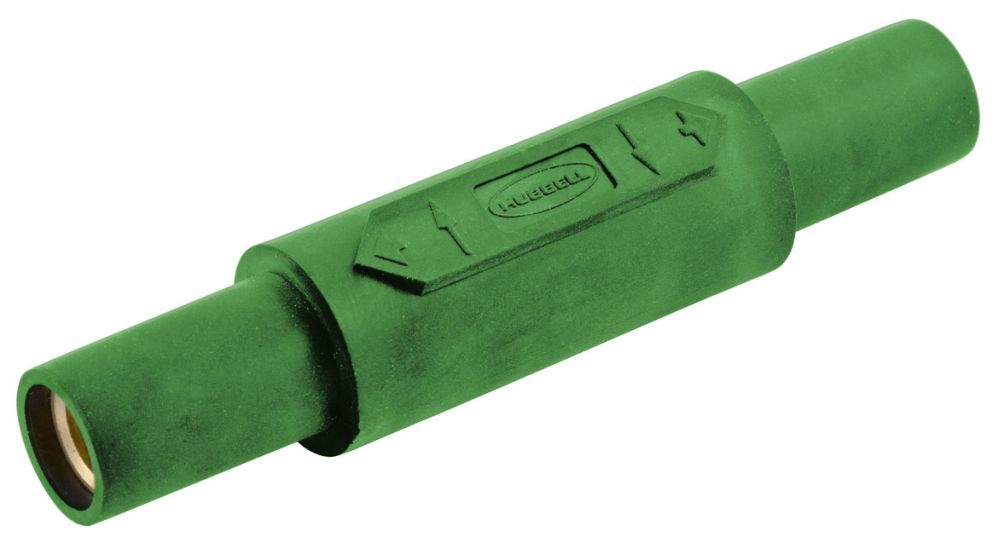

| Description Long | Single Pole Products, Double Female Coupler, 150 Amp Series, Green |
| Description Marketing Copy | Hubbell Wiring DeviceKellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve. |
| Description Short | Single Pole Products, Double Female Coupler, 150 Amp Series, Green |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | 150 Amp Series;Double Female Coupler;Green |
| FV Current Amperage Rating | 150 A |
| FV Voltage Rating Description | 600V AC/DC |
| Families | 579 |
| Family Description | Miscellaneous Wiring Devices |
| Insulation | Insulated Body |
| InvoiceDescription | SINGLE POLE SER 15 DOUBLE FEM, GN;SP DOUBLE FEMALE BDY |
| Material | Brass and Non-Metallic |
| Material Mounting Hardware | Cord Mounted |
| Mounting | Cord |
| NEMA Rating | Non-NEMA |
| Number Of Conductors | 1 Conductor |
| Number Of Poles | 1-Pole |
| Product Description | SINGLE POLE SER 15 DOUBLE FEM, GN |
| Product Keywords | WEBREADY |
| Product Name | Single Pole Products, Double Female Coupler, 150 Amp Series, Green |
| ProductLine | HUBW |
| Series | Series 15 |
| Size | Standard |
| Special Features | Standard Product |
| Standard | National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12 |
| Temperature Rating Maximum | 167 F |
| Temperature Rating Minimum | -13 F |
| Type | Gender Reversing Devices |
| UNSPSC | 39121421 |
| UPC | 78358545869 |
| Voltage Rating | 600 AC or 250 DC Max |
| Voltage Rating Description | 600V AC/DC |
