HUBW HBL15FCAPR

SINGLE POLE SER 15 FEMALE CAP, RED

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS

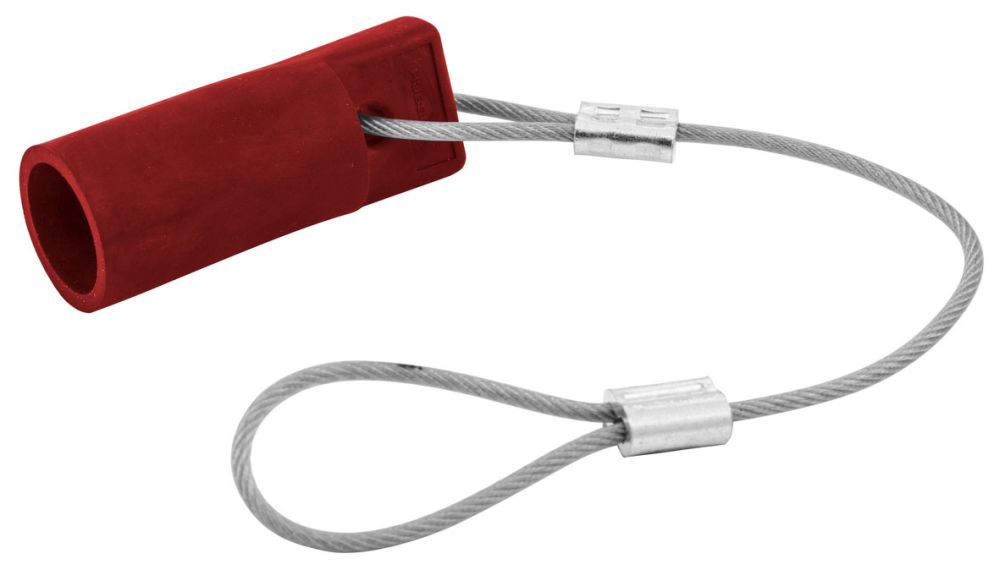

SINGLE POLE SER 15 FEMALE CAP, RED

Mouse over image to zoom, click to enlarge

Description:
SINGLE POLE SER 15 FEMALE CAP, RED

UPC:  78358545854

Part Number: HBL15FCAPR

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $27.70 / EA
Your Price:  $20.00 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo HBL15FCAPR
Amperage Rating 150 AMP
Application High Ampacity Connections
Base Price 0.0000
Cord Type SC/PPC
CountryOfOrigin CN
DDCATEGORY 579
Description Long Single Pole Products, Female Device Cap, 150 Amp Series, Red
Description Marketing Copy Hubbell Wiring DeviceKellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
Description Short Single Pole Products, Female Device Cap, 150 Amp Series, Red
EU RoHS Indicator Contact Manufacturer
Environmental Conditions Indoor Dry unless protected by additional means
FEATURES Bullets 150 Amp Series;Female Device Cap;Red
Families 579
Family Color Red
Family Description Miscellaneous Wiring Devices
InvoiceDescription SINGLE POLE SER 15 FEMALE CAP, RED;SP FEMALE CAP
Material Brass and Elastomer
Mounting Cord
NEMA Rating Non-NEMA
Number Of Poles 1
Number Of Wires None
Phase 1
Product Description SINGLE POLE SER 15 FEMALE CAP, RED
Product Keywords WEBREADY
Product Name Single Pole Products, Female Device Cap, 150 Amp Series, Red
ProductLine HUBW
Series Series 15
Size Standard Sized
Special Features Standard Product
Standard National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Standards RoHS Compliance Status CM
Type Protective Cap
UNSPSC 39121402
UPC 78358545854
Voltage Rating For use with 150A deices
Wire Size #8 to #2

Resources

CatalogNumber HBL15FCAPR
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
