HUBBELL WIRING DEVICES/KELLEMS
SINGLE POLE SER 15 FEM PLUG, 150A, OR

Mouse over image to zoom, click to enlarge

Description:

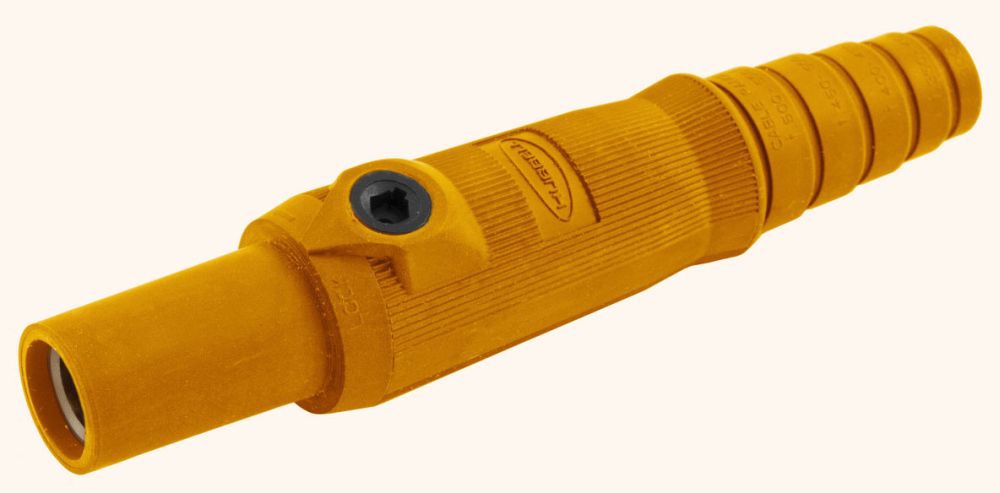

SINGLE POLE SER 15 FEM PLUG, 150A, OR

UPC:  78358547305

Part Number: HBL15FO

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $43.55 / EA
Your Price:  $31.47 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo HBL15FO
Amperage Rating 150 A
Application High Ampacity Connections
Base Price 0.0000
Connection Screwed Terminal
Cord Type All Listed Portable
CountryOfOrigin CN
Current Amperage Rating 150 A
DDCATEGORY 574
Description Long Single Pole Products, Female Plug, 150A 600V AC/DC Max, Orange
Description Marketing Copy Hubbell Wiring DeviceKellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
Description Short Single Pole Products, Female Plug, 150A 600V AC/DC Max, Orange
EU RoHS Indicator Contact Manufacturer
Environmental Conditions Indoor Dry Unless Protected by Additional Means
FEATURES Bullets 150A 600V AC/DC Max;Orange
FV Current Amperage Rating 150 A
FV Voltage Rating Description 600V AC/DC
Families 574
Family Color Orange
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
InvoiceDescription SINGLE POLE SER 15 FEM PLUG, 150A, OR;150A SP F PLUG
Material Composite
Mounting Cord
NEMA Rating Non-NEMA
Number Of Poles 1
Phase 1
Product Description SINGLE POLE SER 15 FEM PLUG, 150A, OR
Product Keywords WEBREADY
Product Name Single Pole Products, Female Plug, 150A 600V AC/DC Max, Orange
ProductLine HUBW
Series Series 15
Size Standard Sized Product
Special Features Standard Product
Standard UL/CSA
Type Plugs
UNSPSC 39121402
UPC 78358547305
Voltage Rating 250 DC/600 AC
Voltage Rating Description 600V AC/DC
Wattage 90000 W

Resources

CatalogNumber HBL15FO
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
