| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL15FRBK |
| Additional Information | Includes Nylon Retaining Screw; Applicable Standard ANSI/NFPA 70 |
| Amperage Rating | 150 A |
| Application | Extra Heavy Duty Industrial |
| Approval | UL 1691, CUL, UL (Canada and US) |
| Base Price | 0.0000 |
| Cable Size | 8 to 2 AWG |
| Catalog Number | HBL15FRBK |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Connection | Double Set Screw |
| Connection Type | Double Set Screw |
| Contact Material | Brass |
| CountryOfOrigin | CN |
| Current Amperage Rating | 150 A |
| Current Rating | 150 A;150 Ampere |
| DDCATEGORY | 573 |

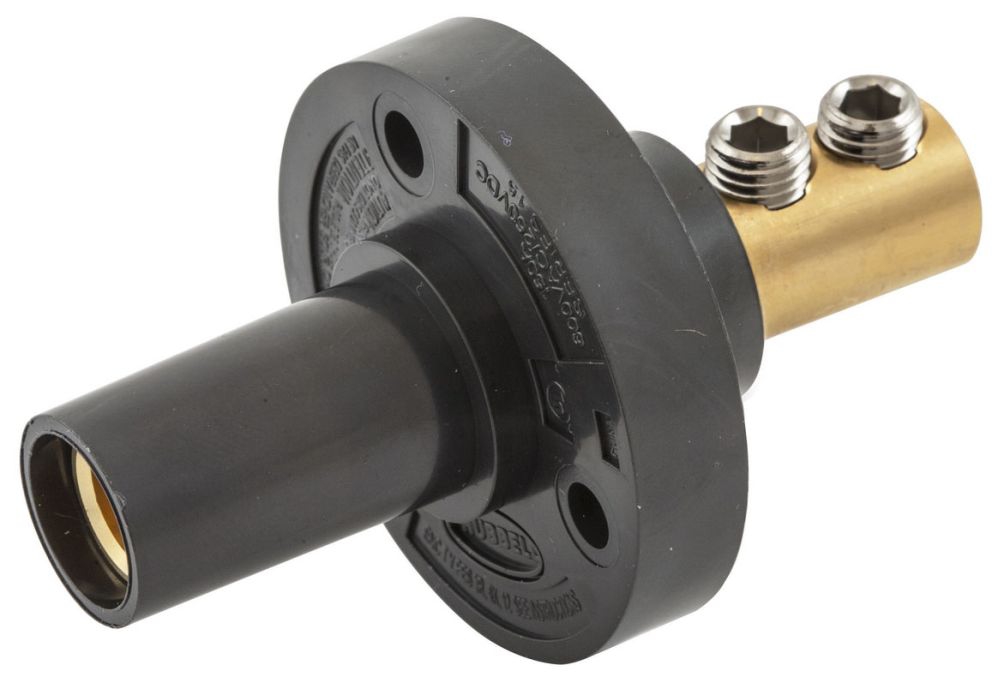

| Description Long | Single Pole Products, Female Receptacle, Double Set Screw Termination, 150 Amp Series, Black |
| Description Marketing Copy | Hubbell Wiring DeviceKellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve. |
| Description Short | Single Pole Products, Female Receptacle, Double Set Screw Termination, 150 Amp Series, Black |
| Directory | CIS |
| EU RoHS Indicator | No |
| Enclosure | NEMA 3R/4X/12 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | 150 Amp Series;Black;Double Set Screw Termination |
| FV Current Amperage Rating | 150 A |
| FV Voltage Rating Description | 600V AC/DC |
| Families | 573 |
| Family Color | Blue |
| Family Description | Receptacles & Surge Protectors |
| Image Location | * Image |
| Industry | ELX |
| Insulator Color | Black |
| Insulator Material | Polybutylene Terephthalate |
| InvoiceDescription | SINGLE POLE SER 15 RECEP, DBLSET SCR, BK;SP DBLSET SCR RCPT |
| Item Number | 45817 |
| Long Description | CAM TYPE RECEPTACLE, FEMALE TYPE; 1.86 INCH DIA X 2.95 INCH L SIZE; DOUBLE SET SCREW CONNECTION TYPE; 8 TO 2 AWG CABLE SIZE; UL 1691, CUL, UL (CANADA AND US) APPROVAL; EXTRA HEAVY DUTY INDUSTRIAL APPLICATION; 600 VAC/250 VDC VOLTAGE RATING |
| MSDS Form Number | * |
| Material Mounting Hardware | Screw Mounting |
| Material Quality | Brass/Thermoplastic |
| Mounting | Screw Mount;Panel |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Poles | 1-Pole;1 |
| Number Of Wires | None |
| Pallet Quantity | 4500 |
| Performance | 250V DC Maximum;Electrical - Amperage Rating - 150A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #8 to #2 AWG |
| Phase | 1 |
| Product Description | SINGLE POLE SER 15 RECEP, DBLSET SCR, BK |
| Product Keywords | WEBREADY |
| Product Name | Single Pole Products, Female Receptacle, Double Set Screw Termination, 150 Amp Series, Black |
| ProductLine | HUBW |
| Series | Series 15 |
| Size | Standard Sized Product;1.86 Inch Dia x 2.95 Inch L |
| Special Features | Standard Product |
| Standard | National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12 |
| Type | Receptacle;Female |
| UNSPSC | 39121406 |
| UPC | 78358545817 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 250 DC, 600 AC;600 VAC/250 VDC |
| Voltage Rating Description | 600V AC/DC |
| Wattage | 90000 W |
| Wire Size | #4 Type SC/PPC Wire |
