| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL15MRGY |
| Additional Information | Applicable Standard NEC, ANSI/NFPA 70 |
| Amperage Rating | 150 A |
| Application | Supplying Temporary Electrical Power Distribution for Entertainment, Theme Parks, Carnival Equipment, Concretes, Movie Making |
| Approval | UL, CUL |
| Base Price | 0.0000 |
| Cable Size | 8 to 2 AWG |
| Catalog Number | HBL15MRGY |
| Commerce Sector | Construction Materials |
| Commodity Code | 51500 |
| Commodity Description | Pin & Sleeve Devices |
| Connection Type | Double Set Screw |
| Contact Material | Brass |
| CountryOfOrigin | CN |
| Current Amperage Rating | 150 A |
| Current Rating | 150 Ampere |
| DDCATEGORY | 575 |

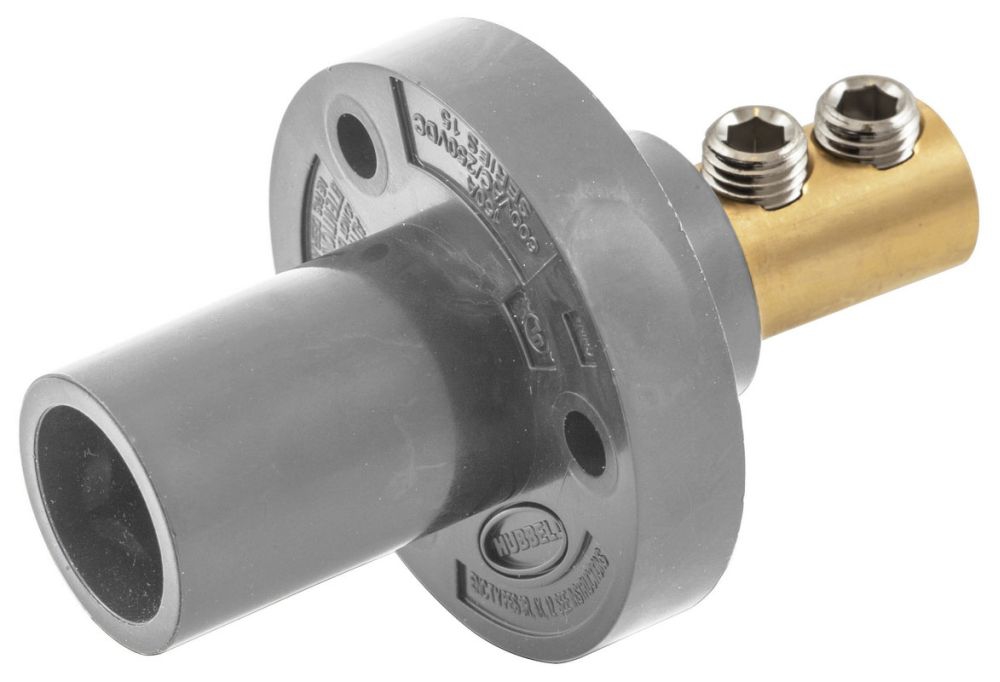

| Description Long | Single Pole Products, Male Inlet, 150A 600V AC/DC, Double Set Screw, Gray |
| Description Marketing Copy | Hubbell Wiring DeviceKellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve. |
| Description Short | Single Pole Products, Male Inlet, 150A 600V AC/DC, Double Set Screw, Gray |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Enclosure | NEMA 3R/4X/12 |
| FEATURES Bullets | 150A 600V AC/DC;Double Set Screw;Gray |
| FV Current Amperage Rating | 150 A |
| FV Voltage Rating Description | 600V AC/DC |
| Families | 575 |
| Family Color | Gray |
| Family Description | Wall Plates & Covers |
| Image Location | * Image |
| Industry | ELX |
| Insulator Color | Gray |
| Insulator Material | Thermoplastic |
| InvoiceDescription | SINGLE POLE SER 15 INLET, DBLSET SCR, GY;150A RCP |
| Item Number | 53906 |
| Long Description | CAM TYPE RECEPTACLE, MALE TYPE; 1.86 INCH DIA X 2.9 INCH L SIZE; DOUBLE SET SCREW CONNECTION TYPE; 8 TO 2 AWG CABLE SIZE; UL, CUL APPROVAL |
| MSDS Form Number | * |
| Mounting | Panel |
| Noun | * |
| Number Of Poles | 1 |
| Product Description | SINGLE POLE SER 15 INLET, DBLSET SCR, GY |
| Product Keywords | WEBREADY |
| Product Name | Single Pole Products, Male Inlet, 150A 600V AC/DC, Double Set Screw, Gray |
| ProductLine | HUBW |
| Series | Series 15 |
| Size | 1.86 Inch Dia x 2.9 Inch L |
| Type | Receptacle;Male |
| UNSPSC | 39121406 |
| UPC | 78358553906 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 600 VAC/250 VDC |
| Voltage Rating Description | 600V AC/DC |
