| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL15MRR |
| Amperage Rating | 150 A |
| Application | Extra Heavy Duty Industrial |
| Base Price | 0.0000 |
| Connection | Double Set Screw |
| CountryOfOrigin | CN |
| Current Amperage Rating | 150 A |
| Current Rating | 150 A |
| DDCATEGORY | 574 |

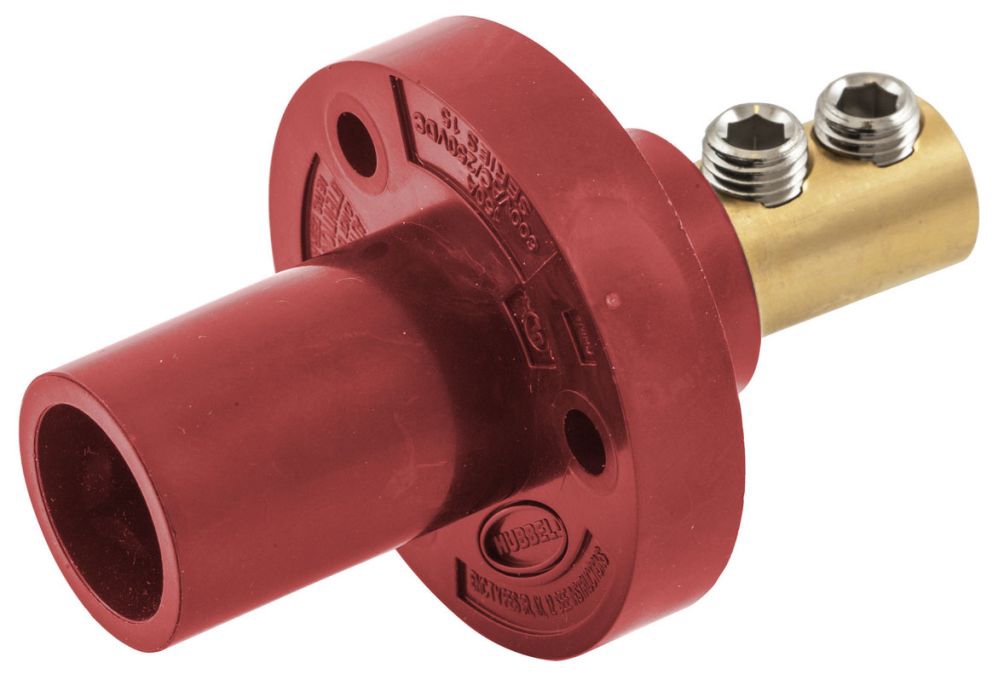

| Description Long | Single Pole Products, Male Inlet, Double Set Screw Termination, 150 Amp Series, Red |
| Description Marketing Copy | Hubbell Wiring DeviceKellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve. |
| Description Short | Single Pole Products, Male Inlet, Double Set Screw Termination, 150 Amp Series, Red |
| EU RoHS Indicator | No |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | 150 Amp Series;Double Set Screw Termination;Red |
| FV Current Amperage Rating | 150 A |
| FV Voltage Rating Description | 600V AC/DC |
| Families | 574 |
| Family Color | Red |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| InvoiceDescription | SINGLE POLE SER 15 INLET, DBLSET SCR, RD;SP DBLSET SCR INLET |
| Material Mounting Hardware | Screw Mounting |
| Material Quality | Brass/Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | Non-NEMA |
| Number Of Poles | 1-Pole |
| Number Of Wires | None |
| Performance | 250V DC Maximum;Electrical - Amperage Rating - 150A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #8 to #2 AWG |
| Phase | 1 |
| Product Description | SINGLE POLE SER 15 INLET, DBLSET SCR, RD |
| Product Keywords | WEBREADY |
| Product Name | Single Pole Products, Male Inlet, Double Set Screw Termination, 150 Amp Series, Red |
| ProductLine | HUBW |
| Series | Series 15 |
| Size | Standard Sized Product |
| Special Features | Standard Product |
| Standard | National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12 |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC | 78358545814 |
| Voltage Rating | 250 DC, 600 AC |
| Voltage Rating Description | 600V AC/DC |
| Wattage | 90000 W |
| Wire Size | #4 Type SC/PPC Wire |
