| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL15W47 |
| Additional Information | Contact Material 0.04 Inch Copper Alloy; Enclosure Rating IP55; Temperature Rating -40 to 75 Deg C |
| Amperage Rating | 15 A |
| Application | Industrial/Commercial |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems;Elastogrip[R] |
| Catalog Number | HBL15W47 |
| Color | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Conductor Range | #18 AWG to #12 AWG |
| Configuration | 5-15R |
| Connection | Screw Terminals |
| Constructional Feature | Water Tight |
| Cord Range | "0.250""-0.655"" (6.4-16.6)" |
| Cord Size | 0.3 to 0.655 Inch |
| CountryOfOrigin | US |
| Current Amperage Rating | 15 A |
| Current Rating | 15 A;15 Amp |
| DDCATEGORY | 574 |

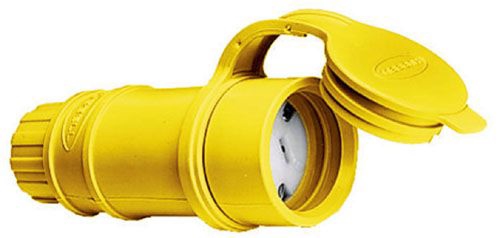

| Description Long | Straight Blade Devices, Female Connector Body, Elasto-Grip Water Tight, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 125V, 15A 5-15R, Yellow, Single Pack. |
| Description Short | Straight Blade Devices, Female Connector Body, Elasto-Grip Water Tight, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 125V, 15A 5-15R, Yellow, Single Pack |
| Directory | CIS |
| EU RoHS Indicator | No |
| Environmental Conditions | Watertight |
| FEATURES Bullets | Thermoplastic elastomer housing;Integral weatherproofing shroud seals connection between plug and connector;Nylon compression nut keeps water and dust from getting into the body around the cord |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Horsepower Maximum | 0.50 |
| Image Location | * Image |
| Industry | ELX |
| Insulation | Insulated Body |
| InvoiceDescription | ELASTOGRIP W/T CONN, 15A 125V, 5-15R;15A WT ELSTGRP CONN |
| Item Number | 01302 |
| Item Type | Elastogrip | |
| Long Description | STRAIGHT BLADE CONNECTOR, THERMOPLASTIC ELASTOMER MATERIAL; YELLOW COLOR; 5-15R CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2 APPROVAL; 125 VOLT AC VOLTAGE RATING; 15 AMP CURRENT RATING; GROUNDING; 2 POLE(S); WATER TIGHT; 0.3 TO 0.655 INCH CORD SIZE |
| MSDS Form Number | * |
| Material | Composite;Thermoplastic Elastomer |
| Mounting | Cord Mounted |
| NEMA Rating | 5-15R |
| Noun | * |
| Number Of Conductors | 3-Wire Grounding |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical: Current Interrupting: Certified for current interrupting at full rated current;Dielectric Voltage: Withstands 2,000V minimum;Mechanical: Product Identification:Terminal Accommodation: #18-#12 AWG. Stranded copper wire only. Terminal Identification: Terminals identified in accordance with UL 498 and CSA;Environmental: Flammability UL 94 HB or better;IP Suitability: IP55;Operating Temperatures: Maximum continuous 75C;minimum -40C (w/o impact) |
| Product Description | ELASTOGRIP W/T CONN, 15A 125V, 5-15R |
| Product Keywords | WEBREADY |
| Product Name | Straight Blade Devices, Female Connector Body, Elasto-Grip Water Tight, Industrial/Commercial Grade, Straight, 125V, 15A 5-15R |
| ProductLine | HUBW |
| Series | Elastogrip |
| Size | 4.03 in x 1.76 in x 4.03 in |
| Special Features | Watertight |
| Standard | CSA Certified to C22.2 No. 42 File 280C;NEMA WD-6 Compliant;UL Listed to UL498 File E1706 |
| Sub Brand | Straight Blade |
| Temperature Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Type | Connector Body |
| UNSPSC | 39121421 |
| UPC | 78358501302 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125 VAC;125 Volt AC |
| Voltage Rating Description | 125 V |
