| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL18203ICN |
| Action | SPDT |
| Additional Information | Includes Ground Screw |
| Amperage Rating | 15 A |
| Application | General Purpose;Industrial |
| Approval | CSA |
| Base Price | 0.0000 |
| Brand Name | HBL[R] |
| Catalog Number | HBL18203ICN |
| Color | Ivory |
| Commerce Sector | Construction Materials |
| Commodity Code | 51100 |
| Commodity Description | General Purpose Switches |
| Connection | Back and Side Wired |
| Contact Configuration | Two Position |
| Contact Rating | Per UL 20 |
| CountryOfOrigin | CN |
| Current Amperage Rating | 15 A |
| Current Rating | 15 A;15 Ampere |
| DDCATEGORY | 572 |
| Decorative Color | Ivory |

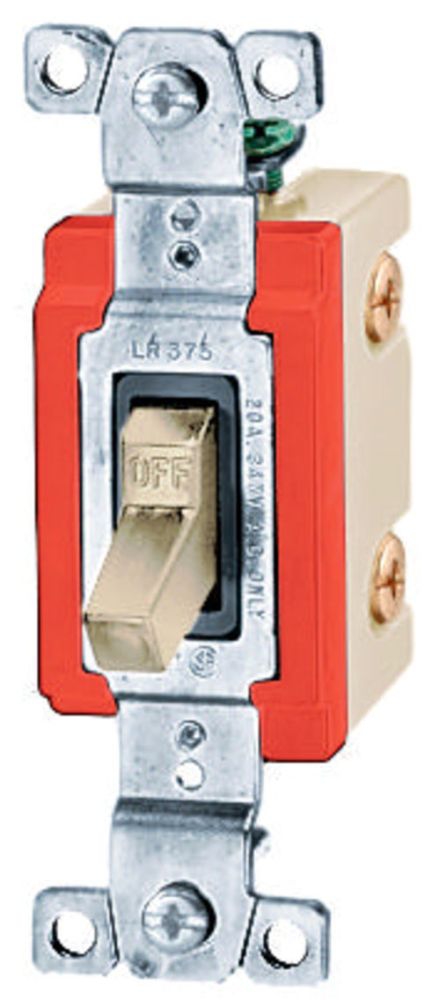

| Description Long | Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 15A 347V AC, Terminal Screws, Ivory |
| Description Short | Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 15A 347V AC, Terminal Screws, Ivory |
| Directory | CIS |
| EU RoHS Indicator | No |
| Enclosure | None |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Abuse resistant nylon toggle;Large brass binding head screws with deep slots;Strip gauge for accurate wiring |
| FV Current Amperage Rating | 15 A |
| FV Voltage Rating Description | 347 VAC |
| Families | 572 |
| Family Description | General Purpose Switches |
| Image Location | * Image |
| Industry | ELX |
| Insulation | False |
| InvoiceDescription | 3 WAY TOG, IND GRD, 15A 347V, IV;15A 347V IV 3W SW |
| Item Number | 92471 |
| Long Description | TOGGLE SWITCH, TOGGLE TYPE; THERMOSET (BODY), NYLON (TOGGLE) MATERIAL; 1.31 INCH W X 1.13 INCH D X 4.06 INCH H SIZE; IVORY COLOR; THREE WAY OPERATION TYPE; CSA APPROVAL; INDUSTRIAL APPLICATION; 347 VAC VOLTAGE RATING; 15 AMPERE CURRENT RATING |
| MSDS Form Number | * |
| Material | Thermoset (Body), Nylon (Toggle) |
| Model | HBL18203CN |
| Mounting | Screw Mount |
| Noun | * |
| Number Of Poles | Single Pole |
| Operating Cycles | 50,000 |
| Operating Temperature Maximum | 167 F |
| Operating Temperature Minimum | -40 F |
| Operation Type | Three Way |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75C, Min. continuous: -40C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Power Rating | 2 HP at 277 V |
| Product Description | 3 WAY TOG, IND GRD, 15A 347V, IV |
| Product Keywords | WEBREADY |
| Product Name | Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 15A 347V AC, Terminal Screws, Ivory |
| ProductLine | HUBW |
| Series | Extra Heavy Duty |
| Size | 4.06 in x 1.3 in x 1.86 in;1.31 Inch W x 1.13 Inch D x 4.06 Inch H |
| Special Features | Standard Product |
| Standard | UL Listed |
| Switch Type | Toggle |
| Temperature Rise Max | 30C maximum at rated current |
| Type | Toggle |
| UNSPSC | 39122211 |
| UPC | 78358592471 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 347 VAC |
| Voltage Rating Description | 347 VAC |
| Wattage | 5540 W |
| Wiring | Back, Side |
