| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL21414B |
| Additional Information | Overall Dimension 2.44 Inch Diameter x 6 Inch Length; Contact Material Brass; Enclosure Rating IP30; Temperature Rating -40 to 75 Deg C; Applicable Standard UL 94V-0 |
| Amperage Rating | 20/30 A |
| Application | Heavy Duty Industrial |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Hubbell Wiring Device-Kellems;Hubbellock [R], Twist-Lock [R] |
| Cable Range | 0.700 - 1.200 in |
| Catalog Number | HBL21414B |
| Color | Black/White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Conductor Range | #12AWG to #8AWG |
| Configuration | Non-NEMA Locking |
| Connection | Pressure Screw Terminal |
| Connector Rating | 600 Volt AC 250 Volt DC 30 Amp |
| Cord Diameter | 0.700-1.200 in |
| Cord Range | "0.70""-1.20"" (17.78-30.5)" |
| Cord Size | 0.7 to 1.2 Inch |
| CountryOfOrigin | US |
| Current Amperage Rating | 20/30 A |
| Current Rating | 30 A |
| DDCATEGORY | 574 |

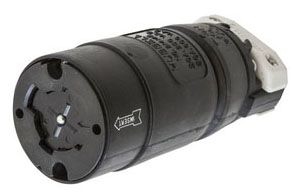

| Description Long | Locking Devices, Hubbellock, Industrial, Female Connector Body, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding, Black nylon housing, thermoplastic interior, Non-NEMA, Screw Terminal, Black and White |
| Description Short | Locking Devices, Hubbellock, Industrial, Female Connector Body, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White. |
| Directory | CIS |
| EU RoHS Indicator | No |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Spring loaded safety shutter contains arcing when mating or un-mating devices under load;Spring loaded safety shutter automatically ejects the plug eliminating contact teasing;Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependabilit;Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Image Location | * Image |
| Industry | ELX |
| Insulation | Insulated Body |
| InvoiceDescription | H/LOCK CONN, 3P4W, 30A 600V;3P 4W ARMRD CONN |
| Item Number | 01729 |
| Item Type | 30A Grounding Hubbellock Female Connector |
| Long Description | LOCKING DEVICE CONNECTOR, NYLON MATERIAL; BLACK/WHITE COLOR; NON-NEMA LOCKING CONFIGURATION; 4 WIRE(S); UL 498, CSA C22.2 APPROVAL; GROUNDING; 3 POLE(S); 0.7 TO 1.2 INCH CORD SIZE; 600 VOLT AC 250 VOLT DC 30 AMP CONNECTOR RATING |
| MSDS Form Number | * |
| Material | Nylon |
| Material Mounting Hardware | Cord Mounted |
| Mounting | Cord Mounted |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Conductors | 3-Wire Non-Grounding |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage Withstand - 2,000V minimum;Environmental - Flammability - UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors;Environmental - Moisture Resistance - IP30 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C, Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Product Description | H/LOCK CONN, 3P4W, 30A 600V |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Hubbellock, Industrial, Female Connector Body, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal and White. |
| ProductLine | HUBW |
| Size | 6 in x 2.44 in x 2.44 in |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Listed to UL 498 |
| Sub Brand | Hubbellock |
| Temperature Rating | Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact. |
| Type | Connector Body |
| UNSPSC | 39121421 |
| UPC | 78358501729 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 250 VDC/600 VAC |
| Voltage Rating Description | 250 VDC/600 VAC |
