| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2182 |
| Additional Information | Contact Material Brass; Strap Material Galvanized Steel; Operating Temperature -40 to 75 Deg C |
| Amperage Rating | 20 A |
| Application | Style Line Decorator Hospital Grade |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Hubbell Wiring Device-Kellems;Style Line[R] |
| Catalog Number | HBL2182 |
| Color | Brown |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | 5-20R |
| Connection | Back and Side Wired Screw Terminals |
| Constructional Feature | Impact Resistant |
| CountryOfOrigin | PR |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A;20 Ampere |
| DDCATEGORY | 573 |
| Description Long | Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown, Single Pack. |
| Description Short | Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown, Single Pack |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Aesthetic Style Line decorator design;High impact resistant face;Triple wipe contacts |
| Families | 573 |
| Family Description | Receptacles & Surge Protectors |
| Grade | Heavy-Duty, Hospital |
| Ground Type | Grounding |
| Horsepower Maximum | 1 |

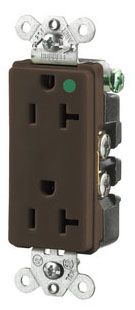

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | STYLE HG DUP RCPT, 20A 125V, 5-20R, BR;20A 125V DPLX RCPT |
| Item Number | 06064 |
| Item Type | Decorator Duplex |
| Long Description | STRAIGHT BLADE DUPLEX RECEPTACLE, DECORATOR DUPLEX TYPE; NYLON (FACE), POLYBUTYLENE TEREPHTHALATE (BASE) MATERIAL; BROWN COLOR; 5-20R CONFIGURATION; 3 WIRE(S); HEAVY-DUTY, HOSPITAL GRADE; UL 498, CSA C22.2 APPROVAL; 125 V VOLTAGE RATING |
| MSDS Form Number | * |
| Material | Nylon;Nylon (Face), Polybutylene Terephthalate (Base) |
| Material Mounting Hardware | Screw Mounting |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - TOP: UL 94 V-2 BASE: UL 94 V-0;Environmental - Operating Temperatures - Maximum continuous 75C, minimum -40C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Phase | 1 |
| Product Description | STYLE HG DUP RCPT, 20A 125V, 5-20R, BR |
| Product Keywords | WEBREADY |
| Product Name | Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown, Single Pack |
| ProductLine | HUBW |
| Series | Hospital Grade |
| Size | 3.28 in x 1.36 in x 1.03 in |
| Special Features | Standard, Self Grounding |
| Standard | CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Sub Brand | Straight Blade Devices |
| Type | Duplex Receptacle;Decorator Duplex |
| UNSPSC | 39121406 |
| UPC | 78358506064 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125 VAC;125 V |
| Voltage Rating Description | 125 V |
| Wattage | 2,500 W |
| Wire Size | #12 AWG to #10 AWG |
| Wiring | Back, Side |
