| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL23014HGB |
| Amperage Rating | 20 A |
| Application | Hospital Use Devices |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems;Hubbellock[R] |
| Carton Quantity | 20 |
| Catalog Number | HBL23014HGB |
| Color | Black/White;Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | Non-NEMA Locking |
| Connection | Terminal Screws |
| Cord Size | 0.33 to 0.66 Inch |
| Cord Type | All Portable |
| CountryOfOrigin | PR |
| Current Rating | 20 Ampere |
| DDCATEGORY | 574 |

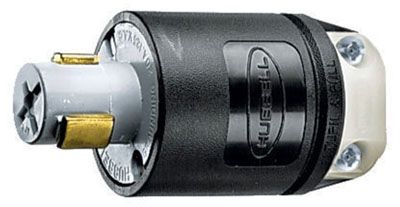

| Description Long | Locking Devices, Hubbellock, HospitalUse, Male Plug, 20A 125V, 2-Pole 3-Wire Grounding, Non-NEMA, ScrewTerminal, Black and White |
| Description Marketing Copy | The Hubbellock devices feature an exclusive design unlike any other in the industry. The unique design is built to provide the safest heavy duty device even in some of the harshest environments. These Hubbellock plugs and connector bodies are built with a super tough nylon housing for high impact resistance and a one of kind interior design for superior safety that Hubbell is known for. The male contacts are molded into the nose for damage resistance and completely eliminate the chance of deformity. Additionally, the plug as well as the connector retains power mechanical cord grips that not only secure the cable but also clamp down on the conductors in order to provide unrivaled strain relief. Inside the connector is Hubbell's unique safety design. With unparalleled box terminations the connector interior holds a spring-loaded safety shutter to provide the ultimate arc protection. Furthermore the exceptional heat and impact resistance is maintained by the thermoplastic interior contributing toa longer lasting device. In all, the one of a kind function of the Hubbellock devices provide a safe and dependable performance in the most demanding applications. |
| Description Short | Locking Devices, Hubbellock, HospitalUse, Male Plug, 20A 125V, 2-Pole 3-Wire Grounding, Non-NEMA, ScrewTerminal, Black and White |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Three-piece thermoplastic clamp assembly;Impact resistance in the interior of the female device;Arcs are snuffed out, when devices are mated or unmated under load |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | H/LOCK PLUG, 2P3W, 20A 125V HOSP USE;NM PLUG 2P3W125V |
| Item Number | 01562 |
| Long Description | LOCKING PLUG, POLARIZED TYPE; NYLON COVER, THERMOSET INTERIOR MATERIAL; BLACK COLOR; NON-NEMA LOCKING CONFIGURATION; 3 WIRE(S); UL, CSA APPROVAL; 125 VAC VOLTAGE RATING; 20 AMPERE CURRENT RATING; GROUNDING; 2 POLE(S); 0.33 TO 0.66 INCH CORD SIZE |
| MSDS Form Number | * |
| Material | Composite;Nylon Cover, Thermoset Interior |
| Model | HBL |
| Mounting | Cord Mounted |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Product Description | H/LOCK PLUG, 2P3W, 20A 125V HOSP USE |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Hubbellock, HospitalUse, Male Plug, 20A 125V, 2-Pole 3-Wire Grounding, Non-NEMA, ScrewTerminal, Black and White |
| ProductLine | HUBW |
| Size | Standard Sized |
| Special Features | Standard Product |
| Standard | UL 498 |
| Sub Brand | Hubbellock |
| Type | Male Plug;Polarized |
| UNSPSC | 39121402 |
| UPC | 78358501562 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125 V;125 VAC |
| Wattage | 2,000 W |
| Wire Size | #12 AWG |
