| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL23030 |
| Additional Information | Overall Dimension 3.28 Inch Length x 1.62 Inch Width x 1.65 Inch Height; Wattage 2500 Watt; Enclosure IP30; Operating Temperature -40 to 75 Deg C |
| Amperage Rating | 20 A |
| Application | Heavy Duty Industrial |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Hubbellock[R], Twist-Lock[R] |
| Catalog Number | HBL23030 |
| Color | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Connection | Screw Terminal |
| CountryOfOrigin | PR |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A |
| DDCATEGORY | 573 |

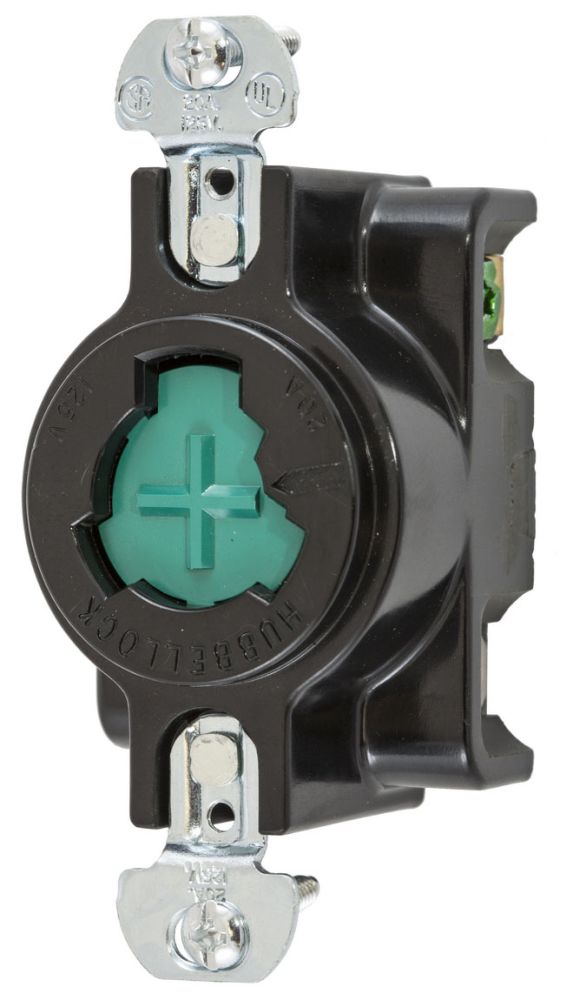

| Description Long | Hubbellock Industrial Flush Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, Non-NEMA phenolic, back Wired, Screw Terminal |
| Description Marketing Copy | The Hubbellock devices feature an exclusive design unlike any other in the industry. The unique design is built to provide the safest heavy duty device even in some of the harshest environments. These Hubbellock plugs and connector bodies are built with a super tough nylon housing for high impact resistance and a one of kind interior design for superior safety that Hubbell is known for. The male contacts are molded into the nose for damage resistance and completely eliminate the chance of deformity. Additionally, the plug as well as the connector retains power mechanical cord grips that not only secure the cable but also clamp down on the conductors in order to provide unrivaled strain relief. Inside the connector is Hubbell's unique safety design. With unparalleled box terminations the connector interior holds a spring-loaded safety shutter to provide the ultimate arc protection. Furthermore the exceptional heat and impact resistance is maintained by the thermoplastic interior contributing to a longer lasting device. In all, the one of a kind function of the Hubbellock devices provide a safe and dependable performance in the most demanding applications. |
| Description Short | Hubbellock Industrial Flush Receptacle 20A |
| Directory | CIS |
| EU RoHS Indicator | No |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability;Spring loaded safety shutter automatically ejects the plug eliminating contact teasing;Spring loaded safety shutter contains arcing when mating or un-mating devices under load;Thermoset molded housing provides maximum heat resistance |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 125 V |
| Face Outer Diameter | 1.38 Inch |
| Families | 573 |
| Family Color | Black |
| Family Description | Receptacles & Surge Protectors |
| Ground Type | Grounding |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | H/LOCK RCPT, 2P3W, 20A 125V;LKG RCPT 2P3W20A125V |
| Item Number | 01754 |
| Long Description | TWIST-LOCK RECEPTACLE, SINGLE TYPE; PHENOLIC MATERIAL; BLACK COLOR; 3 WIRE(S); UL, CSA APPROVAL; GROUNDING; 2 POLE(S); 1.38 INCH FACE OUTER DIAMETER; 125 VOLT 20 AMP RATING; HUBBELLOCK[R], TWIST-LOCK[R] BRAND |
| MSDS Form Number | * |
| Material | Phenolic |
| Material Mounting Hardware | Screw Mounting |
| Material Quality | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Poles | 2-Pole;2 |
| Number Of Wires | 3-Wire;3 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V0;Environmental - Moisture Resistance - IP30 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C,Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #14 AWG - #10 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 1 |
| Product Description | H/LOCK RCPT, 2P3W, 20A 125V |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Hubbellock, Industrial, Flush Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black |
| ProductLine | HUBW |
| Rating | 125 Volt 20 Amp |
| Size | 3.28 in x 1.62 in x 1.65 in |
| Special Features | Auto Ejects Improperly Made Connection |
| Standard | UL 498 |
| Type | Receptacle;Single |
| UNSPSC | 39121406 |
| UPC | 78358501754 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125 V |
| Voltage Rating Description | 125 V |
| Wattage | 2,500 W |
| Wire Size | #14 to #10 |
