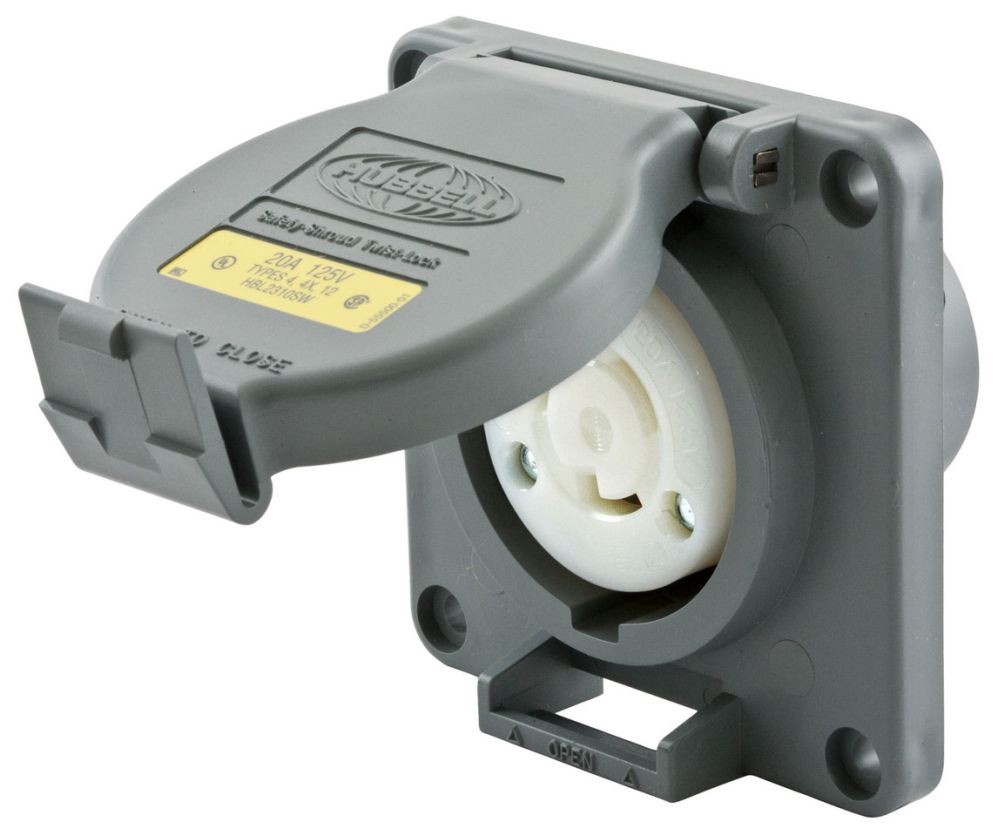

HUBW HBL2310SW

UT S/SHRD RCPT, 20A 125V, L5-20R,GY

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS
UT S/SHRD RCPT, 20A 125V, L5-20R,GY

Mouse over image to zoom, click to enlarge

Description:
UT S/SHRD RCPT, 20A 125V, L5-20R,GY

UPC:  78358523100

Part Number: HBL2310SW

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $161.00 / EA
Your Price:  $98.83 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo HBL2310SW
Additional Information Wire Size 18 to 16 AWG; Contact Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial
Amperage Rating 20 A
Application Heavy Duty Industrial Shrouded Watertight
Approval UL 94/498, CSA C22.2, Fed.Spec W-C-596
Base Price 0.0000
Brand ID WIRING DEVICE-KELLEMS |
Brand Name Hubbell Wiring Device-Kellems;Twist-Lock[R], Safety-Shroud[R]
Catalog Number HBL2310SW
Color Gray/White;Gray
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration L5-20R
Connection Screw Terminal
Constructional Feature Moisture Resistant
CountryOfOrigin PR
Current Amperage Rating 20 A
Current Rating 20 A;20 Amp
DDCATEGORY 573
Description Long Locking Devices, Twist-Lock, Watertight Safety-Shroud, Receptacle, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20R, Screw Terminal, PBT housing and flange, Gray.
Description Short Locking Devices, Twist-Lock, Watertight Safety Shroud, Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Gray
Dielectric Strength Withstands 2,000V minimum
Directory CIS
EU RoHS Indicator Yes
Environmental Conditions Watertight
FEATURES Bullets UL type 4X environmental seal while in use and when closed;High impact, thermoplastic housing for heavy-duty industrial environments;Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected;Catalog number and color coded voltage rating are visible even when in use
Families 573
Family Description Receptacles & Surge Protectors
Ground Type Grounding
Horsepower Maximum 1
Image Location * Image
Industry ELX
InvoiceDescription WT S/SHRD RCPT, 20A 125V, L5-20R,GY;LKG RCPT-NMA L5-20R
Item Number 23100
Item Type 20A Watertight Safety-Shroud Receptacle
Long Description TWIST-LOCK RECEPTACLE, SINGLE TYPE; THERMOPLASTIC MATERIAL; GRAY COLOR; L5-20R CONFIGURATION; 3 WIRE(S); UL 94/498, CSA C22.2, FED.SPEC W-C-596 APPROVAL; 125 VOLT AC 1-PHASE VOLTAGE RATING; SCREW MOUNT MOUNTING; 20 AMP CURRENT RATING; GROUNDING
MSDS Form Number *
Material Thermoplastic
Material Mounting Hardware Screw Mounting
Mounting Screw Mount
NEMA Rating L5-20R
Noun *
Number Of Poles 2
Number Of Wires 3
OEM Brand Name Hubbell Wiring Device-Kellems
Performance Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C, Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Phase 1
Product Description UT S/SHRD RCPT, 20A 125V, L5-20R,GY
Product Keywords WEBREADY
Product Name Locking Devices, Twist-Lock, Watertight Safety Shroud, Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Gray
ProductLine HUBW
Size 3.75 in x 3.75 in x 2.69 in
Special Features Shrouded Watertight Construction
Standard UL Listed, CSA Certified To Type 4, 4X And Type 12
Sub Brand Twist-Lock Devices
Type Device;Single
UNSPSC 39121406
UPC 78358523100
Vendor Name HUBBELL WIRING DEVICE/KELLEMS
Vendor Number 783585
Vendor Short Name HUBW
Voltage Rating 125 V;125 Volt AC 1-Phase
Voltage Rating Description 125 VAC
Wattage 2,500 W
Wire Size #16 AWG to #8 AWG
Wiring Back

Resources

CatalogNumber HBL2310SW
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
