| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2321VBK |
| Additional Information | Blade Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C |
| Amperage Rating | 20 A |
| Application | Extra Heavy Duty Industrial |
| Approval | UL 94/498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Twist-Lock[R], Valise[R] |
| Cable Range | 0.325 - 0.720 in |
| Catalog Number | HBL2321VBK |
| Color | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | L6-20P |
| Connection | Screwed Terminal |
| Constructional Feature | Impact Resistant, Crush Resistant |
| Cord Diameter | 0.325-0.720 in |
| Cord Size | 0.325 to 0.72 Inch |
| Cord Type | All Listed Portables |
| CountryOfOrigin | US |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A;20 Ampere |
| DDCATEGORY | 574 |
| Decorative Color | Black |

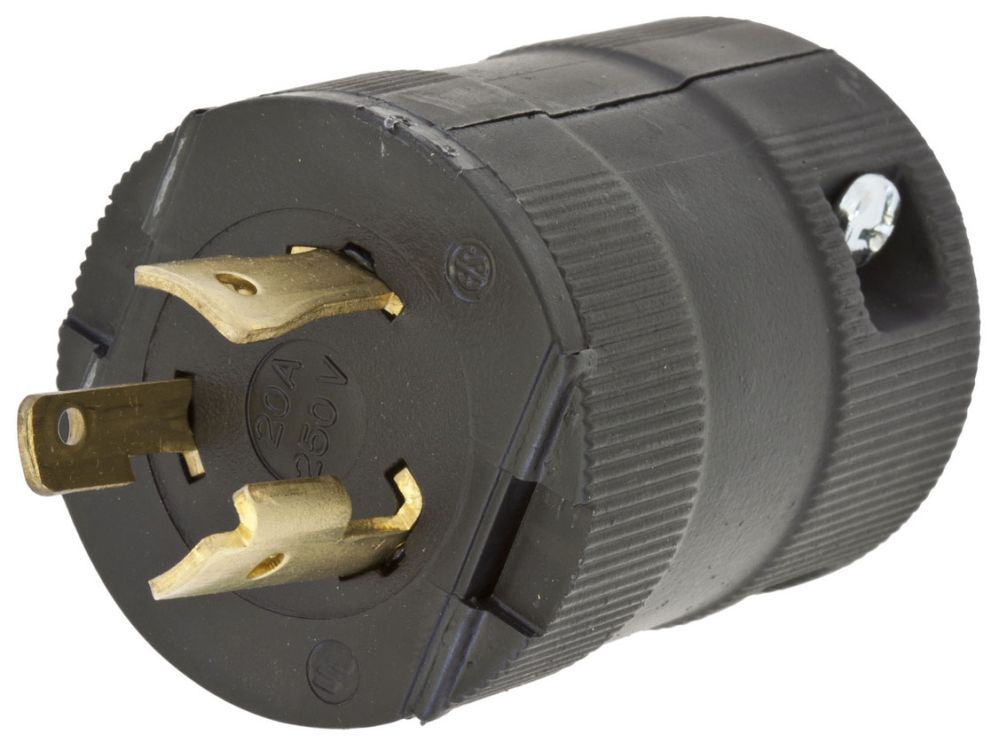

| Description Long | Locking Devices, Twist-Lock, Valise, Male Plug, 20A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-20P, Screw Terminal, Black Nylon. |
| Description Short | Locking Devices, Twist-Lock, Valise, Male Plug, 20A 250V, 2-Pole 3-Wire Grounding, L6-20P, Screw Terminal, Black |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | One piece all-black body design uses less fasteners for ease of assembly;Powerful cord grip prevents conductor slippage and strain on wiring terminals;Totally insulated impact and crush resistant nylon body;Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 250 VAC |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Horsepower Maximum | 2 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG VAL PLUG, 20A 250V, L6-20P, BK;2P 20A 250V PLUG |
| Item Number | 04304 |
| Long Description | LOCKING PLUG, POLARIZED TYPE; NYLON MATERIAL; BLACK COLOR; L6-20P CONFIGURATION; 3 WIRE(S); UL 94/498, CSA C22.2 APPROVAL; 250 VAC VOLTAGE RATING; 20 AMPERE CURRENT RATING; GROUNDING; 2 POLE(S); IMPACT RESISTANT, CRUSH RESISTANT |
| MSDS Form Number | * |
| Material | Nylon |
| Material Mounting Hardware | Cord Mounted |
| Model | HBL |
| Mounting | Cord |
| NEMA Rating | L6-20P |
| Noun | * |
| Number Of Poles | 2-Pole;2 |
| Number Of Wires | 3-Wire;3 |
| Performance | Electrical - Current Interrupting - Certified for full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C Minimum -40C (w/o impact);Environmental - Terminal Identification - Terminals identified in accordance with UL 498;Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only. |
| Phase | 1 |
| Product Description | LKG VAL PLUG, 20A 250V, L6-20P, BK |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Valise, Male Plug, 20A 250V, 2-Pole 3-Wire Grounding, L6-20P, Screw Terminal, Black |
| ProductLine | HUBW |
| Size | 1.78 in x 1.78 in x 2.50 in |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards RoHS Compliance Status | CM |
| Type | Plugs;Polarized |
| UNSPSC | 39121402 |
| UPC | 78358504304 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 250;250 VAC |
| Voltage Rating Description | 250 VAC |
| Wattage | 5 W |
| Wire Size | #18 AWG to #10 AWG |
