| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2366 |
| Amperage Rating | 20 A |
| Application | Insulgrip |
| Base Price | 0.0000 |
| Connection | Screw Terminal |
| CountryOfOrigin | US |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A |
| DDCATEGORY | 573 |

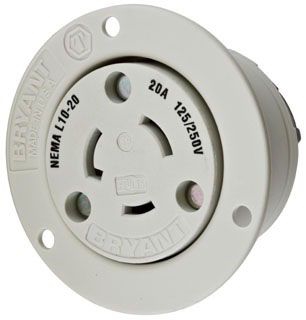

| Description Long | Locking Devices, Twist-Lock, Industrial, Insulgrip Flanged Receptacle, 20A 125/250V, 3-Pole 3-Wire Non-Grounding, NEMA L10-20R, Screw Terminal, Nylon casing, Back wired, White. |
| Description Short | Locking Devices, Twist-Lock, Industrial, Flanged Receptacle, 20A 125/250V, 3-Pole 3-Wire Non-Grounding, L10-20R, Screw Terminal, White |
| Dielectric Strength | Withstands 2,000V minimum |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson);Backwired terminations for ease of installation;Mounting screws included |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 125/250 VAC |
| Families | 573 |
| Family Color | White |
| Family Description | Receptacles & Surge Protectors |
| InvoiceDescription | LKG FLG-RCPT, 20A 125/250V, L10-20R, WH;20A 125/250 FLG-RCPT |
| Material | Nylon |
| Material Mounting Hardware | Screw Mounting |
| Mounting | Screw Mount |
| NEMA Rating | L10-20R |
| Number Of Poles | 3-Pole |
| Number Of Wires | 3-Wire |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C, Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 1 |
| Product Description | LKG FLG-RCPT, 20A 125/250V, L10-20R, WH |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Industrial, Flanged Receptacle, 20A 125/250V, 3-Pole 3-Wire Non-Grounding, L10-20R, Screw Terminal, White |
| ProductLine | HUBW |
| Size | Standard Sized Product |
| Special Features | Standard |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards RoHS Compliance Status | CM |
| Type | Flanged Receptacle |
| UNSPSC | 39121406 |
| UPC | 78358512897 |
| Voltage Rating | 125/250 VAC |
| Voltage Rating Description | 125/250 VAC |
| Wattage | 5,000 W |
| Wire Size | #16 to #8 |
