| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2421 |
| Additional Information | Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596 |
| Amperage Rating | 20 A |
| Application | Extra Heavy Duty Industrial |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems;Twist-Lock [R], Insulgrip [R] |
| Cable Range | 0.350 - 1.150 in |
| Carton Quantity | 30 |
| Catalog Number | HBL2421 |
| Color | Black/White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | L15-20P |
| Connection | Terminal Screws |
| Constructional Feature | Chemical Resistant |
| Cord Diameter | 0.350-1.150 in |
| Cord Size | 0.35 to 1.15 Inch |
| Cord Type | All Listed Portables |
| CountryOfOrigin | PR |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A;20 Amp |
| DDCATEGORY | 574 |
| Directory | CIS |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Superior cord grip design protects terminations from excess strain.;Clear, funnel shaped wire entry for ease of termination.;Integral dust shield protects wiring chamber from dust or contaminants. |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 3 Phase 250 VAC |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Horsepower Maximum | 3 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG PLUG, 20A 3P 250V, L15-20P, B/W;GRD LKG PLUG-N L15-20P |
| Item Number | 03819 |
| Item Type | 20A Male Insulgrip Plug |
| Long Description | LOCKING PLUG, POLARIZED TYPE; NYLON MATERIAL; BLACK/WHITE COLOR; L15-20P CONFIGURATION; 4 WIRE(S); UL 498, CSA C22.2 APPROVAL; 250 VOLT AC 3-PHASE VOLTAGE RATING; 20 AMP CURRENT RATING; GROUNDING; 3 POLE(S); CHEMICAL RESISTANT |
| MSDS Form Number | * |
| Material | Nylon |
| Material Mounting Hardware | Cord Mounted |
| Mounting | Cord Mounted |
| NEMA Rating | L15-20P |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C, Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 496 |
| Phase | 3 |
| Product Description | LKG PLUG, 20A 3P 250V, L15-20P, B/W |
| Product Keywords | WEBREADY |

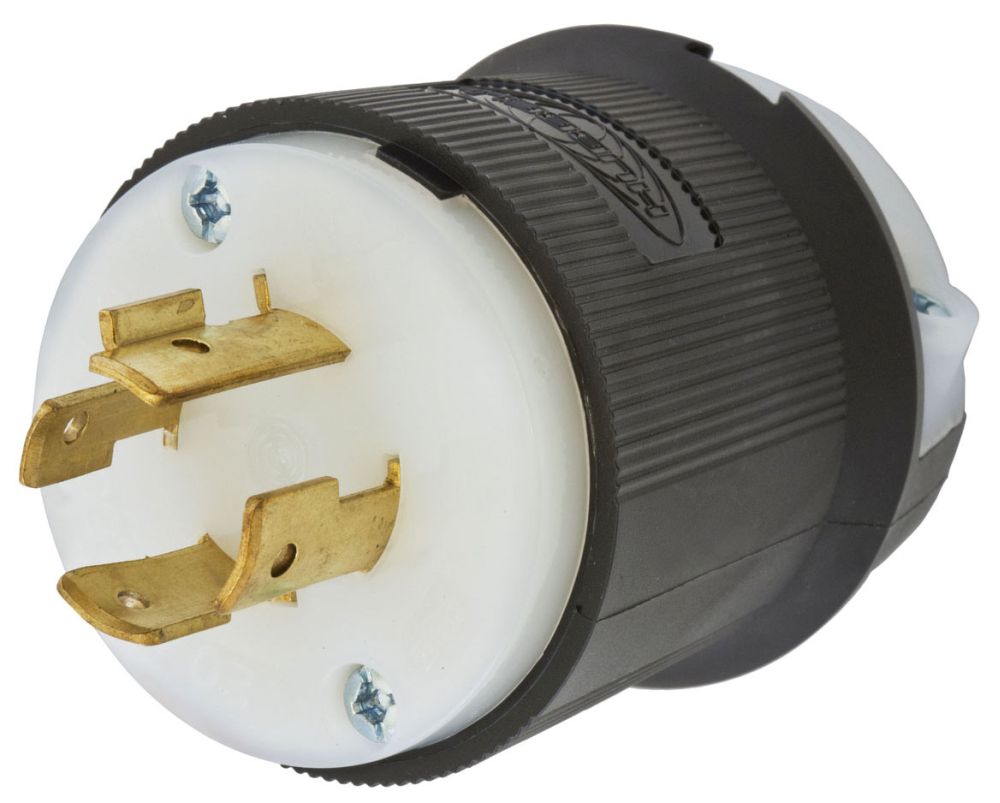

| Product Name | Locking Devices, Twist-Lock, Industrial, Male Plug, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, Black and White | |
| ProductLine | HUBW |
| Size | 2.33 in x 2.33 in x 2.75 in |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Sub Brand | Twist-Lock Devices |
| Type | Plugs;Polarized |
| UNSPSC | 39121402 |
| UPC | 78358503819 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 3 Phase 250 VAC;250 Volt AC 3-Phase |
| Wattage | 5,000 W |
| Wire Size | #16 AWG to #8 AWG |
