| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2421SW |
| Additional Information | Wire Size 16 to 8 AWG; Blade Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial |
| Amperage Rating | 20 A |
| Application | Extra Heavy Duty Industrial |
| Approval | UL 94/498, CSA C22.2, Fed.Spec W-C-596 |
| Base Price | 0.0000 |
| Brand Name | Twist-Lock[R], Safety-Shroud[R] |
| Cable Range | 0.350 - 1.150 in |
| Catalog Number | HBL2421SW |
| Color | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | L15-20P |
| Connection | Screwed Terminal |
| Constructional Feature | Impact/Moisture Resistant |
| Cord Diameter | 0.350-1.150 in |
| Cord Range | "0.350""-1.150"" (9-29)" |
| Cord Size | 0.35 to 1.15 Inch |
| Cord Type | All Listed Portables |
| CountryOfOrigin | US |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A;20 Amp |
| DDCATEGORY | 574 |
| Decorative Color | Black |

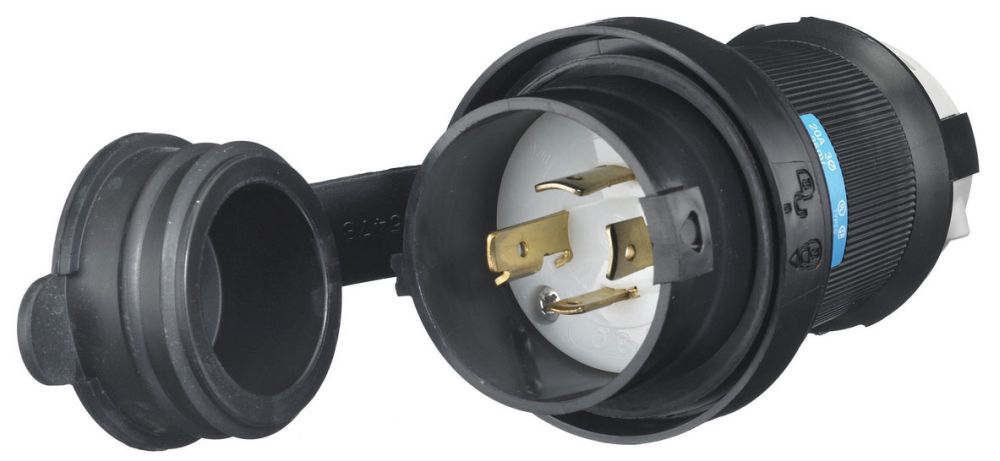

| Description Long | Locking Devices, Twist-Lock, Watertight Safety-Shroud, Male Plug, 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-20P, Screw Terminal, Black PBT housing, White PBT clamps. |
| Description Short | Locking Devices, Twist-Lock, Watertight Safety Shroud, Male Plu, 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, Black and White |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Watertight |
| FEATURES Bullets | Impact resistant shroud protects blades against bending and breaking.;Reduces exposure to arcing when connecting or disconnecting under load.;Superior cord grip design protects terminations from excess strain. |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 3 Phase 250 VAC |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Horsepower Maximum | 3 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG WT S/SHRD PLG, 20A3P 250V, L15-20P;LKG PLUG-NMA L15-20P |
| Item Number | 23136 |
| Long Description | LOCKING PLUG, PBT MATERIAL; BLACK COLOR; L15-20P CONFIGURATION; 4 WIRE(S); UL 94/498, CSA C22.2, FED.SPEC W-C-596 APPROVAL; 250 VOLT AC 3-PHASE VOLTAGE RATING; 20 AMP CURRENT RATING; GROUNDING; 3 POLE(S); IMPACT/MOISTURE RESISTANT |
| MSDS Form Number | * |
| Material | Composite;PBT |
| Material Mounting Hardware | Cord Mounted |
| Model | HBL |
| Mounting | Cord |
| NEMA Rating | L15-20P |
| Noun | * |
| Number Of Poles | 3-Pole;3 |
| Number Of Wires | 4-Wire;4 |
| Pallet Quantity | 960 | |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No 0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75C, Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 3 |
| Product Description | LKG WT S/SHRD PLG, 20A3P 250V, L15-20P |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Watertight Safety Shroud, Male Plu, 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal and White |
| ProductLine | HUBW |
| Size | 2.94 in x 2.94 in x 4.40 in |
| Special Features | Standard Product |
| Standard | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| Standards RoHS Compliance Status | CM |
| Type | Plugs |
| UNSPSC | 39121402 |
| UPC | 78358523136 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 250;250 Volt AC 3-Phase |
| Voltage Rating Description | 3 Phase 250 VAC |
| Wattage | 5 W |
| Wire Size | #16 AWG to #8 AWG |
