| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2426 |
| Additional Information | Wire Size 16 to 8 AWG; Wiring Back; Contact Material Brass; Enclosure Rating IP20; Operating Temperature -40 to 75 Deg C; Includes Mounting Screw; Application Industrial |
| Amperage Rating | 20 A |
| Application | Insulgrip |
| Approval | UL 94/498, CSA C22.2, Fed.Spec W-C-596 |
| Base Price | 0.0000 |
| Brand Name | Twist-Lock[R], Insulgrip[R] |
| Catalog Number | HBL2426 |
| Color | White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | L15-20R |
| Connection | Screw Terminal |
| CountryOfOrigin | US |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A;20 Amp |
| DDCATEGORY | 573 |

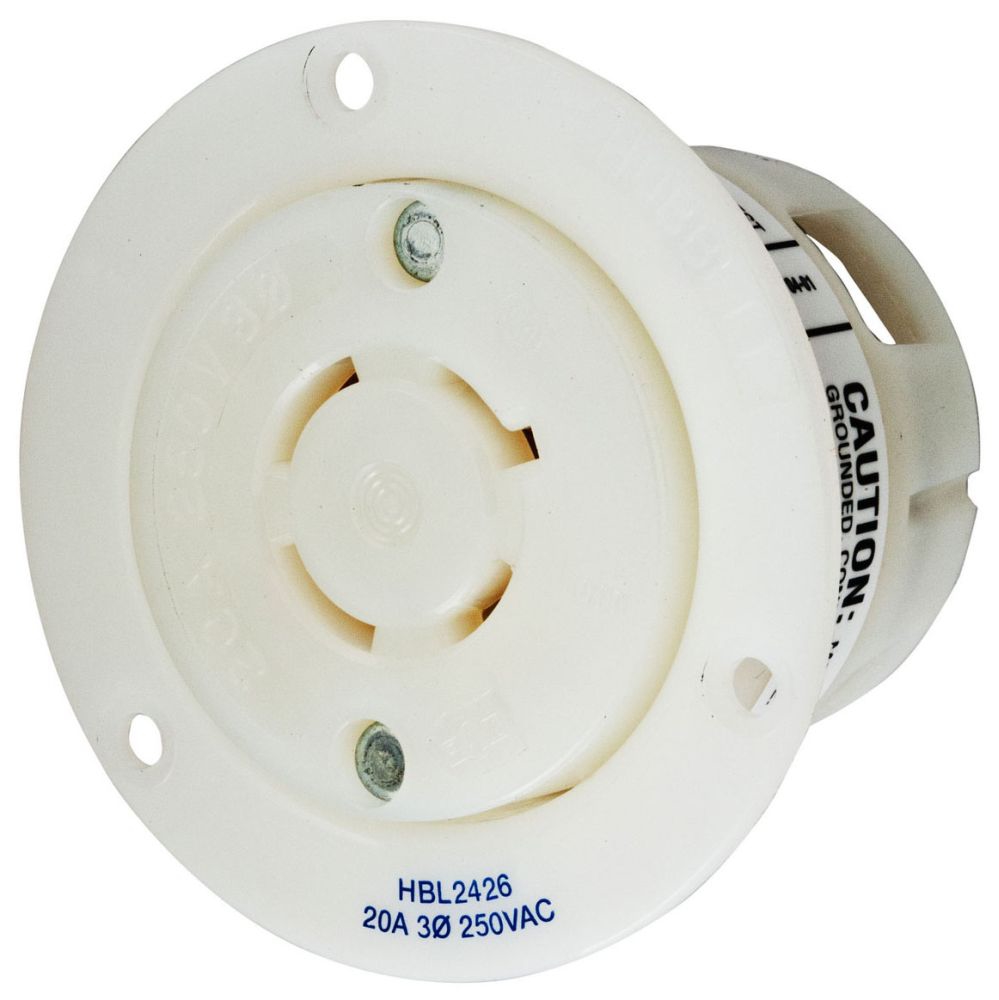

| Description Long | Locking Devices, Twist-Lock, Industrial, Insulgrip Flanged Receptacle, 20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-20R, Screw Terminal, Nylon casing, Back wired, White. |
| Description Short | Locking Devices, Twist-Lock, Industrial, Flanged Receptacle, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20R, Screw Terminal, White |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson);Backwired terminations for ease of installation;Mounting screws included |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 3 Phase 250 VAC |
| Families | 573 |
| Family Color | White |
| Family Description | Receptacles & Surge Protectors |
| Ground Type | Grounding |
| Horsepower Maximum | 3 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG FLG-RCPT, 20A 3P 250V, L15-20R, WH;FLGD OUTLT-NM L15-20R |
| Item Number | 03826 |
| Long Description | FLANGED RECEPTACLE, FLANGED TYPE; NYLON MATERIAL; WHITE COLOR; L15-20R CONFIGURATION; 4 WIRE(S); UL 94/498, CSA C22.2, FED.SPEC W-C-596 APPROVAL; 250 VOLT AC 3-PHASE VOLTAGE RATING; 20 AMP CURRENT RATING; GROUNDING; 3 POLE(S) |
| MSDS Form Number | * |
| Material | Nylon |
| Material Mounting Hardware | Screw Mounting |
| Mounting | Screw Mount |
| NEMA Rating | L15-20R |
| Noun | * |
| Number Of Poles | 3-Pole;3 |
| Number Of Wires | 4-Wire;4 |
| Pallet Quantity | 1540 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C, Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 3 |
| Product Description | LKG FLG-RCPT, 20A 3P 250V, L15-20R, WH |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Industrial, Flanged Receptacle, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20R, Screw Terminal, White |
| ProductLine | HUBW |
| Size | 3.06 in x 3.06 in x 2.27 in |
| Special Features | Standard |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards RoHS Compliance Status | CM |
| Type | Flanged Receptacle;Flanged |
| UNSPSC | 39121406 |
| UPC | 78358503826 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 3 Phase 250 VAC;250 Volt AC 3-Phase |
| Voltage Rating Description | 3 Phase 250 VAC |
| Wattage | 5,000 W |
| Wire Size | #16 to #8 |
