| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2430SR |
| Additional Information | Wire Size 16 to 8 AWG (Solid/Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596 |
| Amperage Rating | 20 A |
| Application | Heavy Duty Industrial Shrouded |
| Approval | UL 498, CSA C22.2 |
| Brand Name | Twist-Lock[R], Safety-Shroud[R] |
| Catalog Number | HBL2430SR |
| Color | Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | L16-20R |
| Connection | Screw Terminal |
| Constructional Feature | Impact/Corrosion Resistant |
| CountryOfOrigin | US |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A;20 Amp |
| DDCATEGORY | 573 |
| Decorative Color | Gray and White |

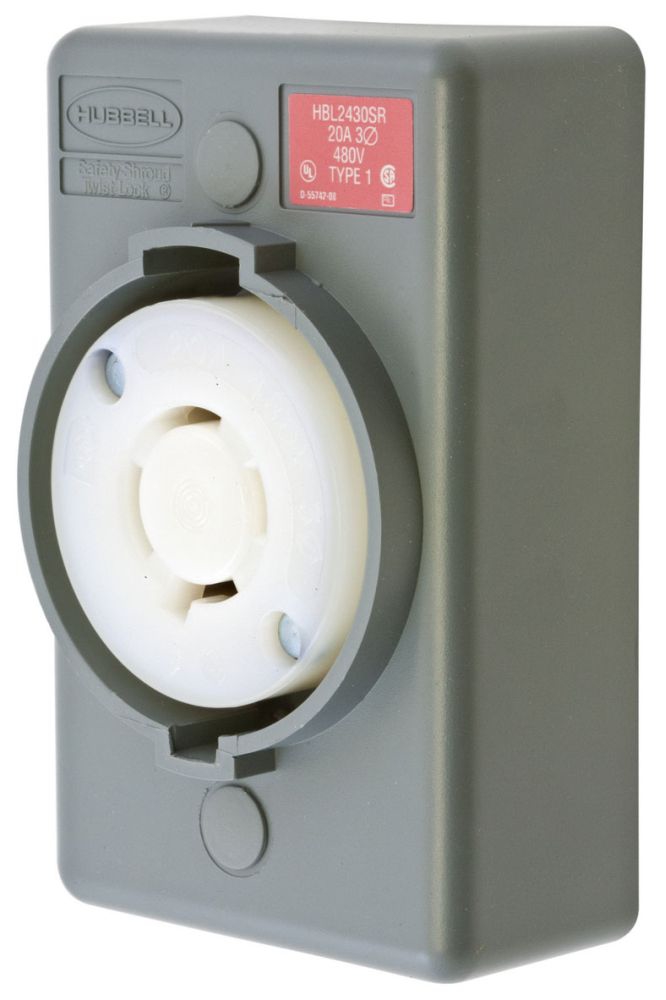

| Description Long | Locking Devices, Twist-Lock, Safety-Shroud, Surface Mount Receptacle, One Gang, 20A 3-Phase Delta 480V AC, 3-Pole 4- Wire Grounding, NEMA L16-20R, Screw Terminal, Gray. |
| Description Short | Locking Devices, Twist-Lock, Safety Shroud, Surface Mount Receptacle, 20A 3-Phase Delta 480V AC, 3-Pole 4- Wire Grounding, L16-20R, Screw Terminal, Gray |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected;Catalog number and color coded voltage rating are visible even when in use;Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 3-Phase Delta 480 VAC |
| Families | 573 |
| Family Description | Receptacles & Surge Protectors |
| Ground Type | Grounding |
| Horsepower Maximum | 5 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG S/SHRD RCPT, L16-20R, SURF MT, GY;LKG RCPT-NMA L16-20R |
| Item Number | 23458 |
| Long Description | TWIST-LOCK RECEPTACLE, SINGLE TYPE; REINFORCED THERMOPLASTIC POLYESTER (HOUSING) MATERIAL; GRAY COLOR; L16-20R CONFIGURATION; 4 WIRE(S); UL 498, CSA C22.2 APPROVAL; 480 VOLT AC 3-PHASE VOLTAGE RATING; SURFACE MOUNTING; 20 AMP CURRENT RATING; GROUNDING |
| MSDS Form Number | * |
| Material | Reinforced Thermoplastic Polyester (Housing) |
| Material Mounting Hardware | Screw Mounting |
| Material Quality | Thermoplastic |
| Mounting | Screw Mount;Surface |
| NEMA Rating | L16-20R |
| Noun | * |
| Number Of Gang S | 1-Gang |
| Number Of Poles | 3-Pole;3 |
| Number Of Wires | 4-Wire;4 |
| Pallet Quantity | 1320 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C, Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 3 |
| Product Description | LKG S/SHRD RCPT, L16-20R, SURF MT, GY |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Safety Shroud, Surface Mount Receptacle, 20A 3-Phase Delta 480V AC, 3-Pole 4- Wire Grounding, L16-20R, Screw Terminal |
| ProductLine | HUBW |
| Size | 4.56 in x 2.84 in x 1.71 in |
| Special Features | Surface Mount |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards RoHS Compliance Status | CM |
| Type | Surface Mount Receptacle;Single |
| UNSPSC | 39121406 |
| UPC | 78358523458 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 3-Phase Delta 480 VAC;480 Volt AC 3-Phase |
| Voltage Rating Description | 3-Phase Delta 480 VAC |
| Wattage | 9,600 W |
| Wire Size | #16 to #8 |
| Wiring | Back |
