| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2451 |
| Additional Information | Wire Size 16 to 8 AWG; Blade Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial |
| Amperage Rating | 20 A |
| Application | Extra Heavy Duty Industrial |
| Approval | UL 94/498, CSA C22.2, Fed.Spec W-C-596 |
| Base Price | 0.0000 |
| Brand Name | Twist-Lock[R], Insulgrip[R] |
| Cable Range | 0.350 - 1.150 in |
| Catalog Number | HBL2451 |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Color | Black/White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | L19-20P |
| Connection | Screwed Terminal |
| Constructional Feature | Moisture Resistant, Dust Shield |
| Cord Diameter | 0.350-1.150 in |
| Cord Range | "0.350""-1.150"" (9-29)" |
| Cord Size | 0.35 to 1.15 Inch |
| Cord Type | All Listed Portables |
| CountryOfOrigin | US |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A;20 Amp |
| DDCATEGORY | 574 |
| Decorative Color | Black |

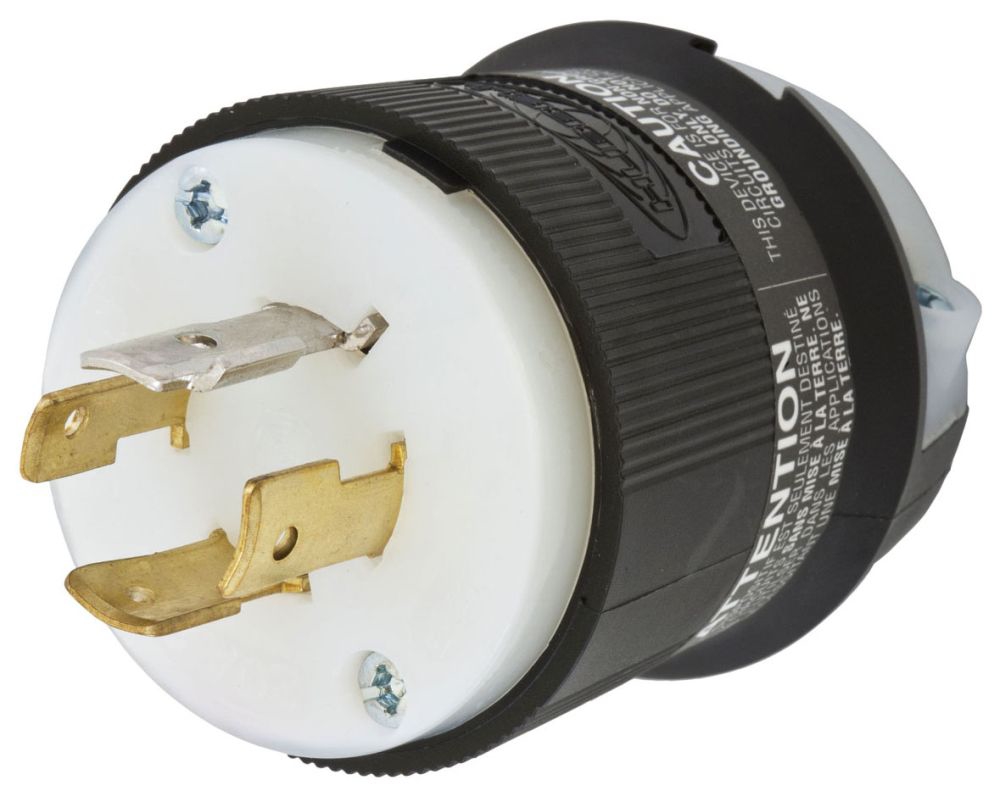

| Description Long | Locking Devices, Twist-Lock, Industrial, Male Insulgrip Plug, 20A 3-Phase Y 277/480V AC, 4-Pole 4-Wire Non-Grounding, NEMA L19- 20P, Screw Terminal, Black and White Nylon |
| Description Short | Locking Devices, Twist-Lock, Industrial, Male Plug, 20A 3-Phase 277/480V AC, 4-Pole 4-Wire Non-Grounding, L19- 20P, Screw Terminal, Black and White |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Clear, funnel shaped wire entry for ease of termination.;Integral dust shield protects wiring chamber from dust or contaminants.;Superior cord grip design protects terminations from excess strain. |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 3 Phase WYE 277/480 VAC |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Non-Grounding |
| Horsepower Maximum | 5 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG+PLG,+20A+3PH+277/480V,+L19+20R,+B/W;LKG PLUG -NEMA L19-20P |
| Item Number | 03839 |
| Long Description | LOCKING PLUG, NYLON MATERIAL; BLACK/WHITE COLOR; L19-20P CONFIGURATION; 4 WIRE(S); UL 94/498, CSA C22.2, FED.SPEC W-C-596 APPROVAL; 277/480 VOLT AC STAR 3-PHASE VOLTAGE RATING; 20 AMP CURRENT RATING; NON-GROUNDING; 4 POLE(S) |
| MSDS Form Number | * |
| Material | Nylon |
| Material Mounting Hardware | Cord Mounted |
| Model | HBL |
| Mounting | Cord |
| NEMA Rating | L19-20P |
| Noun | * |
| Number Of Poles | 4-Pole;4 |
| Number Of Wires | 4-Wire;4 |
| Pallet Quantity | 3060 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C, Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 3 |
| Product Description | LKG+PLG,+20A+3PH+277/480V,+L19+20R,+B/W |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Industrial, Male Plug, 20A 3-Phase 277/480V AC, 4-Pole 4-Wire Non-Grounding, L19- 20P, Screw Terminal, Black and White | |
| ProductLine | HUBW |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Type | Plugs |
| UNSPSC | 39121402 |
| UPC | 78358503839 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 3 Phase WYE 277/480;277/480 Volt AC Star 3-Phase |
| Wattage | 9 W |
| Wire Size | #16 AWG to #8 AWG |
