| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL25615 |
| Additional Information | Size 4.81 Inch W x 3.03 Inch Dia; Grade Hospital; Includes Epoxy Kit; Excludes Cord Clamp |
| Amperage Rating | 60 AMP |
| Application | Hospital Use Devices |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Hubbellock[R] |
| Catalog Number | HBL25615 |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Connection | Screwed Terminal |
| Cord Size | 0.83 to 1.3 Inch |
| Cord Type | All Portable |
| CountryOfOrigin | PR |
| DDCATEGORY | 574 |
| Decorative Color | Gray |

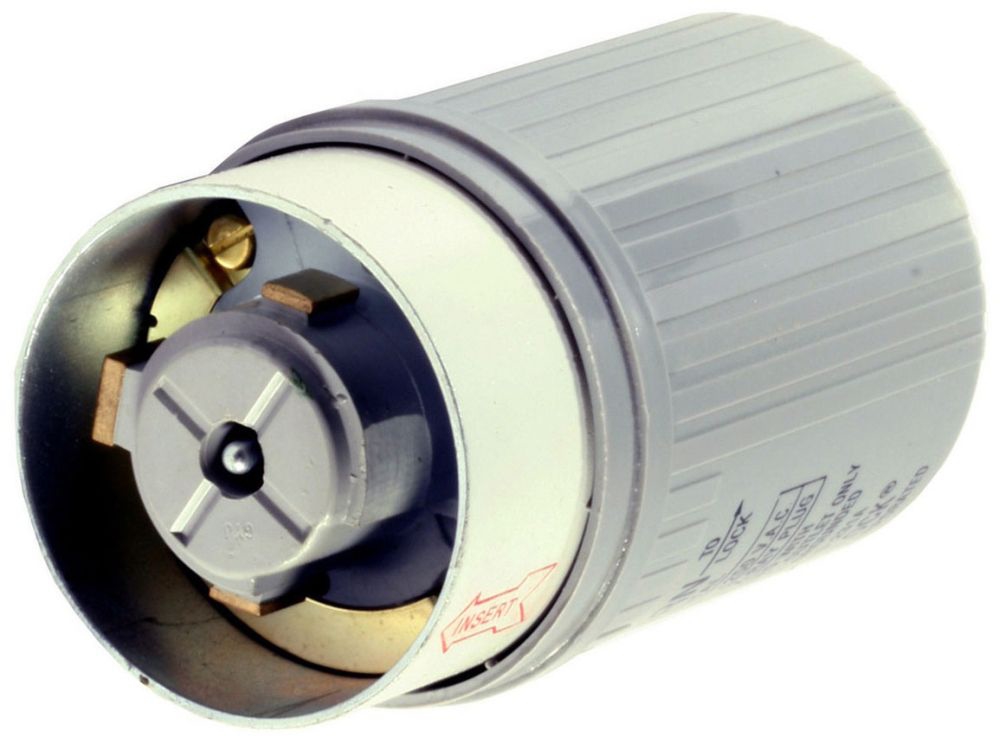

| Description Long | Hubbellock, Mobile X-Ray Male Plug, 60A 250V, 2-Pole 3-Wire Grounding, Non NEMA, Screw Terminal, with Epoxy Kit |
| Description Marketing Copy | The Hubbellock devices feature an exclusive design unlike any other in the industry. The unique design is built to provide the safest heavy duty device even in some of the harshest environments. These Hubbellock plugs and connector bodies are built with a super tough nylon housing for high impact resistance and a one of kind interior design for superior safety that Hubbell is known for. The male contacts are molded into the nose for damage resistance and completely eliminate the chance of deformity. Additionally, the plug as well as the connector retains power mechanical cord grips that not only secure the cable but also clamp down on the conductors in order to provide unrivaled strain relief. Inside the connector is Hubbell's unique safety design. With unparalleled box terminations the connector interior holds a spring-loaded safety shutter to provide the ultimate arc protection. Furthermore the exceptional heat and impact resistance is maintained by the thermoplastic interior contributing to a longer lasting device. In all, the one of a kind function of the Hubbellock devices provide a safe and dependable performance in the most demanding applications. |
| Description Short | Hubbellock, Mobile X-Ray, Male Plug 60A |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | 60A 250V;Male Plug;Mobile X-Ray |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | MOBILE X-RAY PLUG, 2P3W, 60A 250V, EPOXY;XRAY PLUG 2P3W60A600V |
| Item Number | 01575 |
| Long Description | MOBILE X-RAY PLUG, STEEL COVER MATERIAL; 3 WIRE(S); UL, CSA APPROVAL; GROUNDING; 2 POLE(S); 0.83 TO 1.3 INCH CORD SIZE; 250 VAC 60 AMPERE PLUG RATING; HUBBELLOCK[R] BRAND; SIZE 4.81 INCH W X 3.03 INCH DIA; GRADE HOSPITAL; INCLUDES EPOXY KIT |
| MSDS Form Number | * |
| Material | Composite;Steel Cover |
| Model | HBL256 |
| Mounting | Cord |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Plug Rating | 250 VAC 60 Ampere |
| Product Description | MOBILE X-RAY PLUG, 2P3W, 60A 250V, EPOXY |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Hubbellock, Mobile X-Ray, Male Plug, 60A 250V, 2-Pole 3-Wire Grounding, Non NEMA, ScrewTerminal, Gray, With Epoxy Kit |
| ProductLine | HUBW |
| Size | Standard Sized |
| Special Features | Epoxy Filled |
| Standard | UL 498 |
| Type | Male Plug |
| UNSPSC | 39121402 |
| UPC | 78358501575 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 250 |
| Wattage | 15000 W |
| Wire Size | #6 to #4 |
