| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL25CM11 |
| Additional Information | Blade Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C |
| Amperage Rating | 20 A |
| Application | Extra Heavy Duty Industrial/Marine |
| Approval | UL 94/498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Twist-Lock[R], Insulgrip[R] |
| Catalog Number | HBL25CM11 |
| Color | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | L21-20P |
| Constructional Feature | Impact Resistant, Chemical Resistant |
| Cord Range | "0.350""-1.150"" (9-29)" |
| Cord Size | 0.35 to 1.15 Inch |
| Cord Type | All Listed Portables |
| CountryOfOrigin | US |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A;20 Ampere |
| DDCATEGORY | 574 |
| Decorative Color | Yellow |

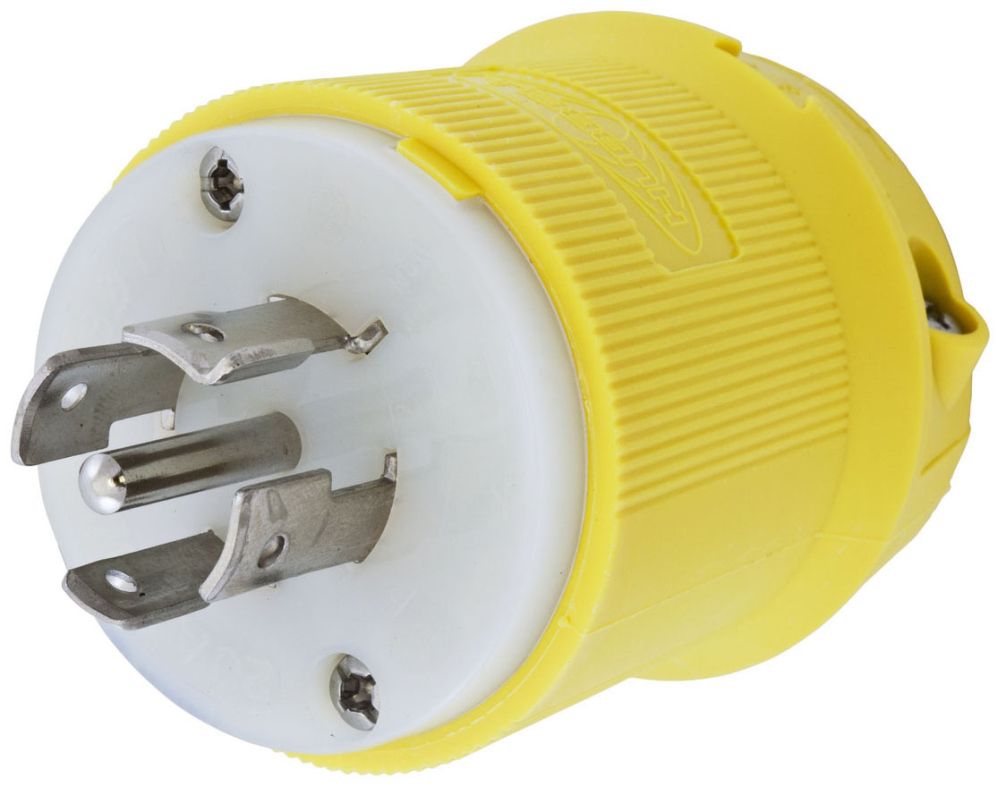

| Description Long | Twist-Lock Corrosion Resistant Insulgrip Plug, 20A, 3 Phase Y 120/208V AC, 4-Pole, 5 Wire Grounding, NEMA L21-20P Nylon |
| Description Short | Twist-Lock Corrosion Resistant Insulgrip Plug 20A |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Corrosion Resistant |
| FEATURES Bullets | Integral dust shield protects wiring chamber from dust or contaminants;Ribbed nylon housing provides a secure grip and impact and chemical resistance;Superior cord grip design protects terminations from excess strain |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 120/208 VAC |
| Families | 574 |
| Family Color | Yellow |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG PLUG,CM,20A 3PH120/208V,L21-20P,YL;LKG PLUG-NMA L15-20P |
| Item Number | 03871 |
| Listings | CSA C22.2 No.42;Fed.Spec. W-C-596;UL 498 |
| Long Description | CHEM-MARINE PLUG, POLARIZED TYPE; NYLON MATERIAL; YELLOW COLOR; L21-20P CONFIGURATION; 5 WIRE(S); UL 94/498, CSA C22.2 APPROVAL; 120/208 VAC STAR 3-PHASE VOLTAGE RATING; 20 AMPERE CURRENT RATING; GROUNDING; 4 POLE(S); IMPACT RESISTANT, CHEMICAL RESISTANT |
| MSDS Form Number | * |
| Material | Nylon |
| Material Mounting Hardware | Cord Mounted |
| Model | HBL |
| NEMA Rating | L21-20P |
| Noun | * |
| Number Of Poles | 4-Pole;4 |
| Number Of Wires | 5-Wire Grounding;5 |
| Performance | Electrical - Dielectric Voltage - Withstand 2,000V minimum;Electrical-Current Interrupting - Certified for current interrupting at full rated current;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Minimum -40C (w/o impact) |
| Phase | 3 |
| Product Description | LKG PLUG,CM,20A 3PH120/208V,L21-20P,YL |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Corrosion Resistant Insulgrip Plug, 20A, 3 Phase Y 120/208V AC, 4 Pole, 5 Wire Grounding, NEMA L21-20P, Yellow Nylon |
| ProductLine | HUBW |
| Size | 2.75 in x 2.33 in x 2.33 in |
| Special Features | Corrosion Resistant |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Type | Polarized |
| UNSPSC | 39121403 |
| UPC | 78358503871 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 120/208;120/208 VAC Star 3-Phase |
| Voltage Rating Description | 120/208 VAC |
| Wattage | 4 W |
| Wire Size | #16 to #8 |
