| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL25W47BK |
| Amperage Rating | 15 A |
| Application | Industrial/Commercial |
| Base Price | 0.0000 |
| Color | Black |
| Conductor Range | #14AWG to #12AWG |
| Connection | Terminal Screws |
| Cord Diameter | 0.300-0.625 in |
| CountryOfOrigin | US |
| Current Amperage Rating | 15 A |
| DDCATEGORY | 574 |

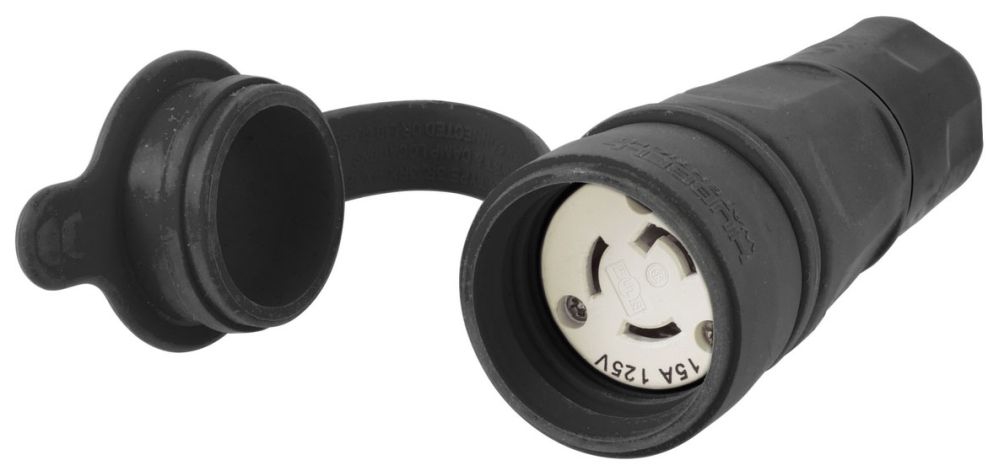

| Description Long | Watertight Twist-Lock Connector, 15A, 125V AC, 2-Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-15R |
| Description Short | Watertight Twist-Lock Connector, 15A |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Water Tight |
| FEATURES Bullets | Smooth body design minimizes collection points simplifying the wash down process;Stainless steel hardware and corrosion-resistant connection points;Strain relief nut always seals on the body, minimizing debris collection |
| FV Current Amperage Rating | 15 A |
| FV Voltage Rating Description | 125 V |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Insulation | Insulated Body |
| InvoiceDescription | WATERTIGHT CONN,L5-15R, 15A/125V, BK;15A/125V WT CONN |
| Material | Composite |
| Mounting | Cord |
| NEMA Rating | L5-15R |
| Number Of Conductors | 3 |
| Number Of Poles | 2-Pole |
| Performance | "Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30C max per UL498 at rated current;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40C (without impact) to +60C continuous;Environmental - UV resistance - All exposed materials are UV stabilized;Mechanical - Cord Accommodation - 0.375""-0.625"" (9.5-15.9)" |
| Product Description | WATERTIGHT CONN,L5-15R, 15A/125V, BK |
| Product Keywords | WEBREADY |
| Product Name | Watertight Devices, Twist-Lock Connector, 15A, 125V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-15R, Black |
| ProductLine | HUBW |
| Size | 1.85 in x 1.85 in x 4.62 in |
| Special Features | Water-Tight |
| Standard | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Temperature Rating Maximum | 167.00000 F |
| Type | Connector Body |
| UNSPSC | 39121421 |
| UPC | 78358543386 |
| Voltage Rating | 125 |
| Voltage Rating Description | 125 V |
