| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2611SW |
| Additional Information | Wattage 3750 Watt; Wire Size 16 to 8 AWG; Overall Dimension 2.77 Inch Length x 2.77 Inch Width x 4.4 Inch Height; Blade Material Brass; Enclosure NEMA 4/4X/12, IP66; Operating Temperature Rating -40 to 75 Deg C; Application Extra Heavy Duty Industrial |
| Amperage Rating | 30 A |
| Application | Extra Heavy Duty Industrial |
| Approval | UL 94/498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Twist-Lock[R], Safety-Shroud[R] |
| Cable Range | 0.325 - 0.930 in |
| Catalog Number | HBL2611SW |
| Color | Black/White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | L5-30P |
| Connection | Screwed Terminal |
| Constructional Feature | Impact Resistant, Water Tight |
| Cord Diameter | 0.325-0.930 in |
| Cord Range | "0.325""-0.930"" (9-24)" |
| Cord Size | 0.325 to 0.93 Inch |
| Cord Type | All Listed Portables |
| CountryOfOrigin | US |
| Current Amperage Rating | 30 A |
| Current Rating | 30 A;30 Amp |
| DDCATEGORY | 574 |
| Decorative Color | Black |

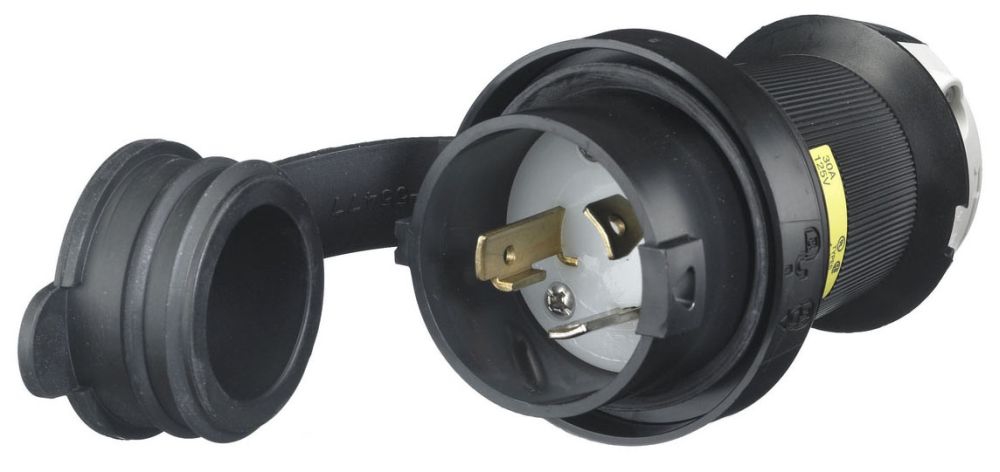

| Description Long | Locking Devices, Twist-Lock, Watertight Safety-Shroud, Male Plug, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-30P, Screw Terminal, Black PBT housing, White PBT clamps. |
| Description Short | Locking Devices, Twist-Lock, Watertight Safety Shroud, Male Plug, 30A 125V, 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal, Black andWhite |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Watertight |
| FEATURES Bullets | Impact resistant shroud protects blades against bending and breaking.;Reduces exposure to arcing when connecting or disconnecting under load.;Superior cord grip design protects terminations from excess strain. |
| FV Current Amperage Rating | 30 A |
| FV Voltage Rating Description | 125 V |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Horsepower Maximum | 2 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG WT S/SHRD PLUG, 30A 125V, L5-30P;LKG PLUG-NMA L5-30P |
| Item Number | 23160 |
| Long Description | LOCKING PLUG, POLARIZED TYPE; VALOX MATERIAL; BLACK/WHITE COLOR; L5-30P CONFIGURATION; 3 WIRE(S); UL 94/498, CSA C22.2 APPROVAL; 125 VOLT AC VOLTAGE RATING; 30 AMP CURRENT RATING; GROUNDING; 2 POLE(S); IMPACT RESISTANT, WATER TIGHT |
| MSDS Form Number | * |
| Material | Composite;Valox |
| Material Mounting Hardware | Cord Mounted |
| Mounting | Cord |
| NEMA Rating | L5-30P |
| Noun | * |
| Number Of Poles | 2-Pole;2 |
| Number Of Wires | 3-Wire;3 |
| Pallet Quantity | 960 | |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75C Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 1 |
| Product Description | LKG WT S/SHRD PLUG, 30A 125V, L5-30P |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Watertight Safety Shroud, Male Plug, 30A 125V, 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal, Black andWhite |
| ProductLine | HUBW |
| Size | 2.77 in x 2.77 in x 4.40 in |
| Special Features | Shrouded Watertight Construction |
| Standard | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| Standards RoHS Compliance Status | CM |
| Type | Plugs;Polarized |
| UNSPSC | 39121402 |
| UPC | 78358523160 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125;125 Volt AC |
| Voltage Rating Description | 125 V |
| Wattage | 3 W |
| Wire Size | #16 AWG to #8 AWG |
