| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2615 |
| Additional Information | Overall Dimension 2.88 Inch Diameter x 2 Inch Height; Wire Size 16 to 8 AWG; Enclosure Rating IP20; Terminal Type Screw; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596 |
| Amperage Rating | 30 A |
| Application | Extra Heavy Duty Industrial |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS | |
| Brand Name | Hubbell Wiring Device-Kellems;Twist-Lock [R], Insulgrip [R] |
| Catalog Number | HBL2615 |
| Color | White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | L5-30P |
| Connection | Screw Terminals |
| Constructional Feature | Moisture Resistant |
| CountryOfOrigin | PR |
| Current Amperage Rating | 30 A |
| Current Rating | 30 A;30 Amp |
| DDCATEGORY | 574 |

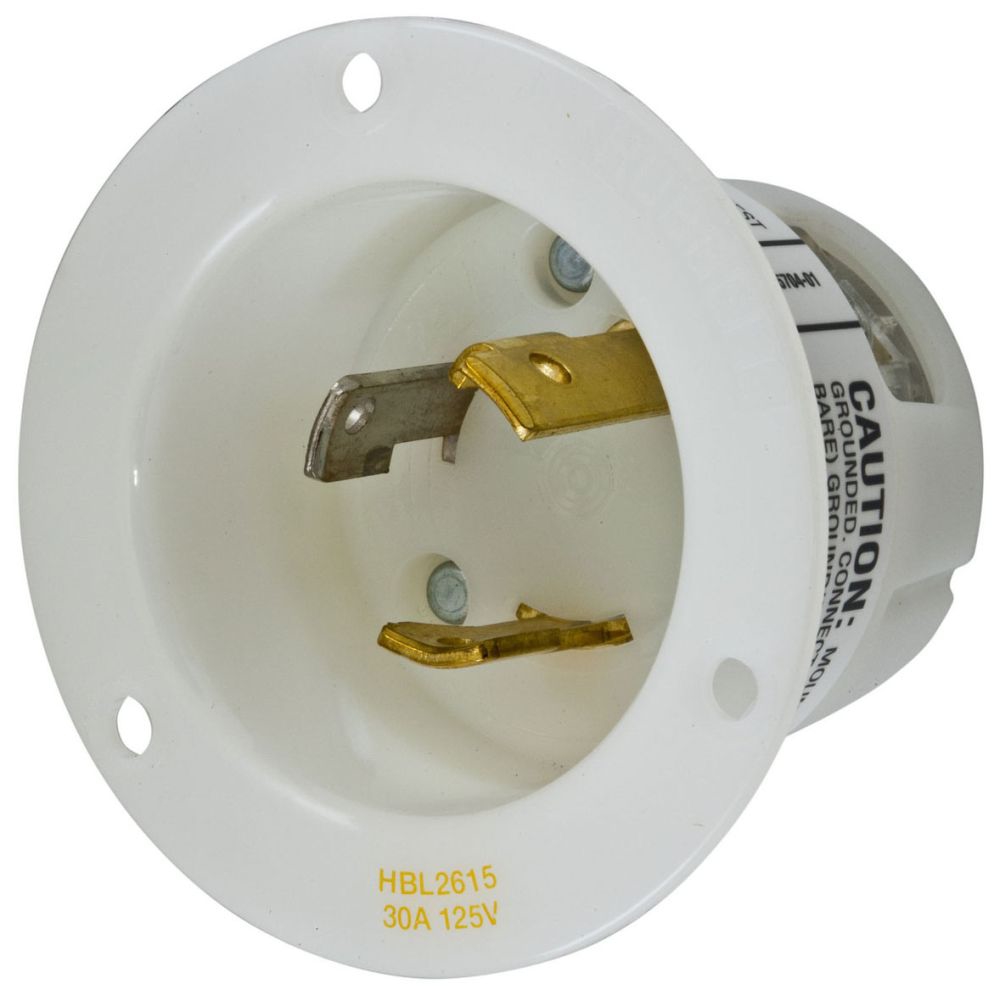

| Description Long | Locking Devices, Twist-Lock, Industrial, Flanged Inlet, 30A 125V 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal, White |
| Description Short | Locking Devices, Twist-Lock, Industrial, Flanged Inlet, 30A 125V 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal, White |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Backwired terminations for ease of installation;#10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson);Mounting screws included |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Image Location | * Image |
| Industry | ELX |
| Insulation | Insulated Body |
| InvoiceDescription | LKG FLG-INLT, 30A 125V, L5-30P, WH;FLGD INLET-NEMA L5-30P |
| Item Number | 03879 |
| Item Type | 30A Grounding Insulgrip Flanged Inlet |
| Long Description | TWIST-LOCK INLET, POLARIZED TYPE; NYLON MATERIAL; WHITE COLOR; L5-30P CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2 APPROVAL; 125 VOLT AC VOLTAGE RATING; 30 AMP CURRENT RATING; GROUNDING; 2 POLE(S); MOISTURE RESISTANT; TWIST-LOCK [R], INSULGRIP [R] BRAND |
| MSDS Form Number | * |
| Material | Nylon |
| Material Mounting Hardware | Screw Mounting |
| Mounting | Screw Mount |
| NEMA Rating | L5-30P |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C. Minimum -40C (w/o impact);Mechanical - Cord Grip Accomodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 1 |
| Product Description | LKG FLG-INLT, 30A 125V, L5-30P, WH |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Industrial, Flanged Inlet, 30A 125V 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal, White |
| ProductLine | HUBW |
| Size | 2.88 in x 2.88 in x 2.09 in |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Sub Brand | Twist-Lock Devices |
| Type | Flanged Inlet;Polarized |
| UNSPSC | 39121406 |
| UPC | 78358503879 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125 VAC;125 Volt AC |
| Voltage Rating Description | 125 VAC |
| Wattage | 3,750 W |
| Wire Size | #16 AWG to #8 AWG |
