| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2620SW |
| Additional Information | Wire Size 16 to 8 AWG (Solid/Stranded Copper); Enclosure Rating 4/4X/12/IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596 |
| Amperage Rating | 30 A |
| Application | Heavy Duty Industrial Shrouded Watertight |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems;Twist-Lock[R], Safety-Shroud[R], Gray Valox[R] |
| Carton Quantity | 5 |
| Catalog Number | HBL2620SW |
| Color | Gray/White;Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | L6-30R |
| Connection | Screw Terminal |
| CountryOfOrigin | PR |
| Cover Type | Water Tight |
| Current Amperage Rating | 30 A| |
| Current Rating | 30 Amp |
| DDCATEGORY | 573 |

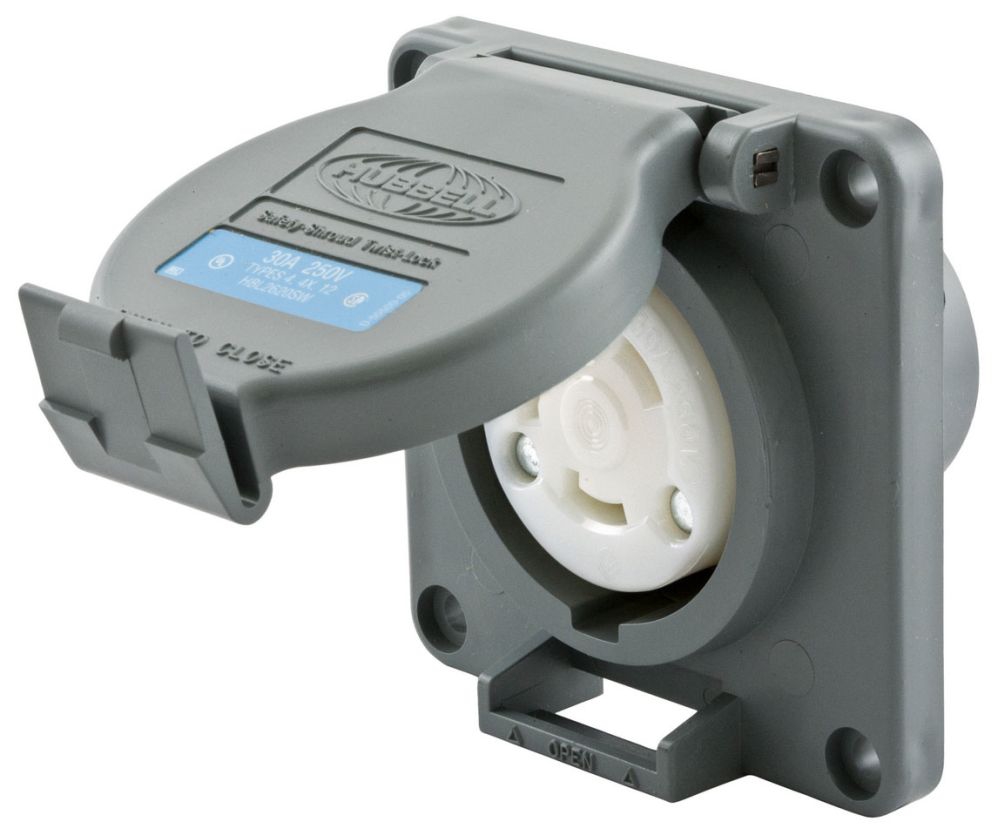

| Description Long | Locking Devices, Twist-Lock, Watertight Safety-Shroud, Receptacle, 30A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-30R, Screw Terminal, PBT housing and flange, Gray |
| Description Short | Locking Devices, Twist-Lock, Watertight Safety Shroud, Receptacle, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screw Terminal, Gray |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Watertight |
| FV Current Amperage Rating | 30 A |
| FV Voltage Rating Description | 250 VAC |
| Families | 573 |
| Family Description | Receptacles & Surge Protectors |
| Ground Type | Grounding |
| Horsepower Maximum | 2 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG WT S/SHRD RCPT, 30A 250V, L6-30R,GY;LKG RCPT-NMA L6-30R |
| Item Number | 23166 |
| Item Type | 30A Watertight Safety-Shroud Receptacle |
| Long Description | INTERLOCK RECEPTACLE, SINGLE TYPE; REINFORCED THERMOPLASTIC POLYESTER (HOUSING) MATERIAL; GRAY COLOR; L6-30R CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2 APPROVAL; 250 VOLT AC VOLTAGE RATING; 30 AMP CURRENT RATING; WATER TIGHT COVER TYPE; GROUNDING |
| MSDS Form Number | * |
| Material | Valox;Reinforced Thermoplastic Polyester (Housing) |
| Material Mounting Hardware | Screw Mounting |
| Mounting | Screw Mount |
| NEMA Rating | L6-30R |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Phase | 1 |
| Product Description | LKG WT S/SHRD RCPT, 30A 250V, L6-30R,GY |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Watertight Safety Shroud, Receptacle, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screw Terminal, Gray |
| ProductLine | HUBW |
| Size | 3.75 in x 3.75 in x 2.69 in |
| Special Features | Shrouded Watertight Construction |
| Standard | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| Sub Brand | Twist-Lock Devices |
| Type | Device;Single |
| UNSPSC | 39121406 |
| UPC | 78358523166 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 250 V;250 Volt AC |
| Voltage Rating Description | 250 VAC |
| Wattage | 7,500 W |
| Wire Size | #16 AWG to #8 AWG |
