| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2626 |
| Additional Information | Wire Size 16 to 8 AWG (Solid/Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596 |
| Amperage Rating | 30 A |
| Application | Heavy Duty Industrial |
| Approval | UL, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Hubbell Wiring Device-Kellems;Twist-Lock[R], Insulgrip[R] |
| Catalog Number | HBL2626 |
| Color | White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | L6-30R |
| Connection | Screw Terminal |
| CountryOfOrigin | US |
| Current Amperage Rating | 30 A |
| Current Rating | 30 A;30 Amp |
| DDCATEGORY | 573 |

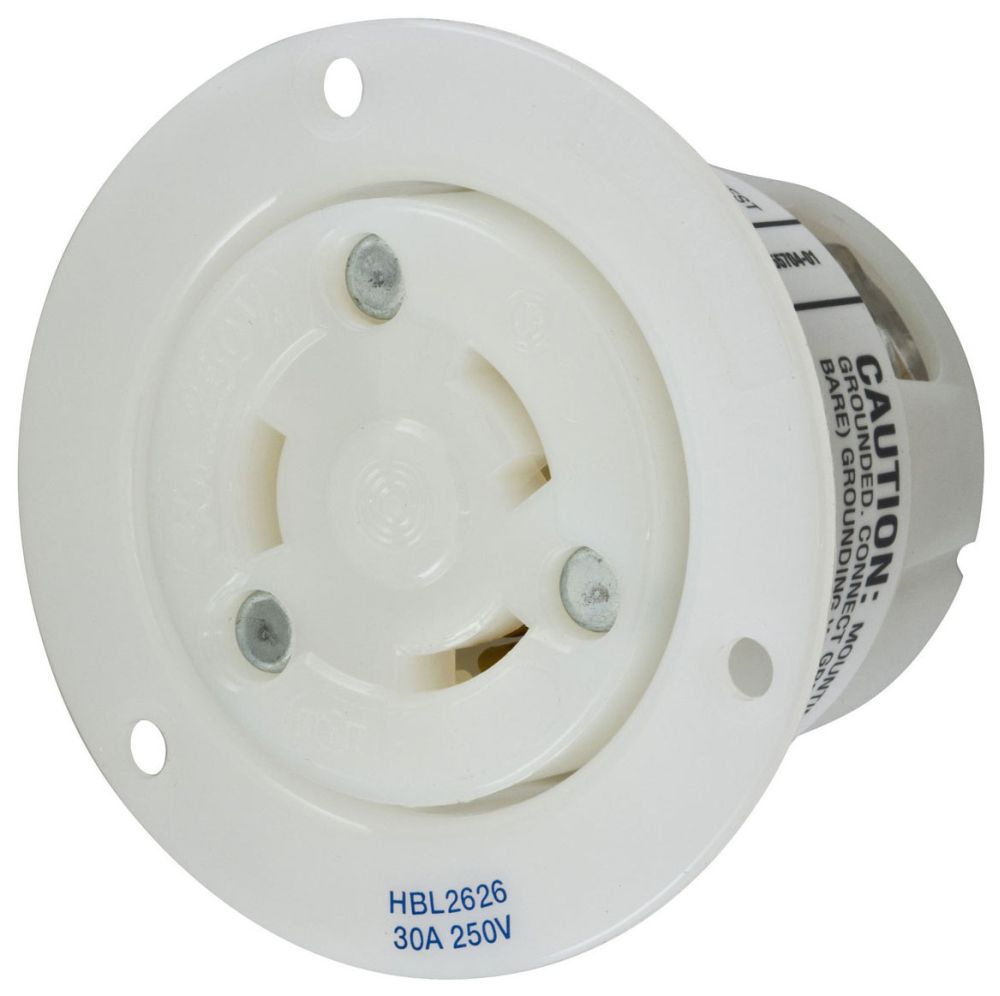

| Description Long | Locking Devices, Twist-Lock, Industrial, Flanged Receptacle, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screw Terminal, White. |
| Description Short | Locking Devices, Twist-Lock, Industrial, Flanged Receptacle, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screw Terminal, White |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Backwired terminations for ease of installation;#10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson);Mounting screws included |
| FV Current Amperage Rating | 30 A |
| Families | 573 |
| Family Description | Receptacles & Surge Protectors |
| Ground Type | Grounding |
| Horsepower Maximum | 2 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG FLG-RCPT, 30A 250V, L6-30R, WH;FLGD OUTLET-NMA L6-30R |
| Item Number | 03893 |
| Item Type | 30A Grounding Insulgrip Flanged Receptacle |
| Long Description | FLANGED RECEPTACLE, FLANGED TYPE; NYLON (HOUSING) MATERIAL; WHITE COLOR; L6-30R CONFIGURATION; 3 WIRE(S); UL, CSA C22.2 APPROVAL; 250 VOLT AC VOLTAGE RATING; 30 AMP CURRENT RATING; GROUNDING; 2 POLE(S); TWIST-LOCK[R], INSULGRIP[R] BRAND |
| MSDS Form Number | * |
| Material | Nylon;Nylon (Housing) |
| Material Mounting Hardware | Screw Mounting |
| Mounting | Screw Mount |
| NEMA Rating | L6-30R |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C, Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 1 |
| Product Description | LKG FLG-RCPT, 30A 250V, L6-30R, WH |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Industrial, Flanged Receptacle, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screw Terminal, White |
| ProductLine | HUBW |
| Size | 2.88 in x 2.88 in x 2.09 in |
| Special Features | Standard |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Sub Brand | Twist-Lock Devices |
| Type | Flanged Receptacle;Flanged |
| UNSPSC | 39121406 |
| UPC | 78358503893 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 250 VAC;250 Volt AC |
| Voltage Rating Description | 250 VAC |
| Wattage | 7,500 W |
| Wire Size | #16 AWG to #8 AWG |
