| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2661 |
| Additional Information | Temperature Rating -40 to 70 Deg C; Terminal Wire Size 16 to 8 AWG; Enclosure IP20; Includes Clear Polycarbonate Terminal Retainer, Brass Blades, #10 to 32 Brass (Phillips/Slotted/Robertson) Terminal Screw, Cold Rolled Steel Nickel Plated Terminal Clamp, |
| Amperage Rating | 30 A |
| Application | Extra Heavy Duty Industrial |
| Approval | UL 94, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Twist-Lock[R], Insulgrip[R] |
| Catalog Number | HBL2661 |
| Color | Black/White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | L10-30P |
| Connection | Screwed Terminal |
| Cord Range | "0.300""-0.950"" (7.6-24.1)" |
| Cord Size | 0.3 to 1.15 Inch |
| Cord Type | All Portable |
| CountryOfOrigin | US |
| Current Amperage Rating | 30 A |
| Current Rating | 30 A;30 Ampere |
| DDCATEGORY | 574 |
| Decorative Color | Black |

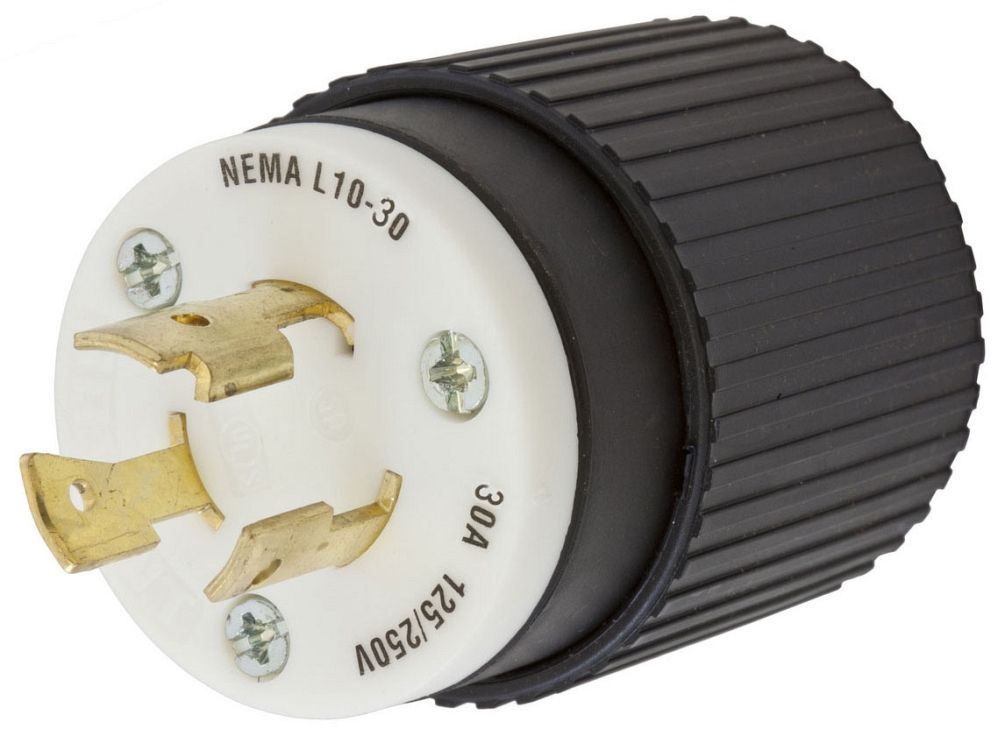

| Description Long | Locking Devices, Twist-Lock, Insulgrip Plug, 30A, 125/250V AC, 3 Pole, 3 Wire Non-Grounding, NEMA L10-30P, Black and white nylon |
| Description Short | Locking Devices, Twist-Lock, Insulgrip Plug, 30A, 125/250V AC, 3 Pole, 3 Wire Non-Grounding, NEMA L10-30P, Black and white nylon |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Watertight |
| FEATURES Bullets | Clear, funnel shaped wire entry for ease of termination;Integral dust shield protects wiring chamber from dust or contaminants;Superior cord grip design protects terminations from excess strain |
| FV Current Amperage Rating | 30 A |
| FV Voltage Rating Description | 125/250 VAC |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG PLUG, 30A 125/250V, L10-30P, B/W;30A 125/250V PLUG |
| Item Number | 45678 |
| Listings | CSA C22.2 No.42;Fed.Spec. W-C-596;UL 498 |
| Long Description | LOCKING DEVICE PLUG, NYLON MATERIAL; BLACK/WHITE COLOR; L10-30P CONFIGURATION; 4 WIRE(S); UL 94, CSA C22.2 APPROVAL; 125/250 VAC VOLTAGE RATING; 30 AMPERE CURRENT RATING; GROUNDING; 3 POLE(S); 0.3 TO 1.15 INCH CORD SIZE; TWIST-LOCK[R], INSULGRIP[R] BRAND |
| MSDS Form Number | * |
| Material | Nylon |
| Model | HBL |
| Mounting | Cord |
| NEMA Rating | L10-30P |
| Noun | * |
| Number Of Poles | 3-Pole;3 |
| Number Of Wires | 3-Wire Non-Grounding;4 |
| Performance | Electrical - Dielectric Voltage - Withstands 2,000V minimum;Electrical-Current Interrupting - Certified for current interrupting at full rated current;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Minimum -40C (w/o impact) |
| Phase | 1 |
| Product Description | LKG PLUG, 30A 125/250V, L10-30P, B/W |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Insulgrip Plug, 30A, 125/250V AC, 3 Pole, 3 Wire Non-Grounding, NEMA L10-30P, Black and white nylon |
| ProductLine | HUBW |
| Size | Standard Sized |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Standards RoHS Compliance Status | CM |
| Type | Male Plug |
| UNSPSC | 39121402 |
| UPC | 78358545678 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125/250;125/250 VAC |
| Voltage Rating Description | 125/250 VAC |
| Wattage | 7500 W |
| Wire Size | #16 AWG to #8 AWG |
