| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL26CM10 |
| Additional Information | Wire Size 16 to 8 AWG; Contact Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial |
| Amperage Rating | 30 A |
| Application | Marine Wiring Devices |
| Approval | UL 94/498, CSA C22.2, Fed.Spec W-C-596 |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS | |
| Brand Name | Hubbell Wiring Device-Kellems;Twist-Lock[R] |
| Catalog Number | HBL26CM10 |
| Color | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | L5-30R |
| Connection | Screw Terminal |
| Constructional Feature | Corrosion/Moisture Resistant |
| CountryOfOrigin | PR |
| Current Amperage Rating | 30 A |
| Current Rating | 30 A;30 Amp |
| DDCATEGORY | 573 |

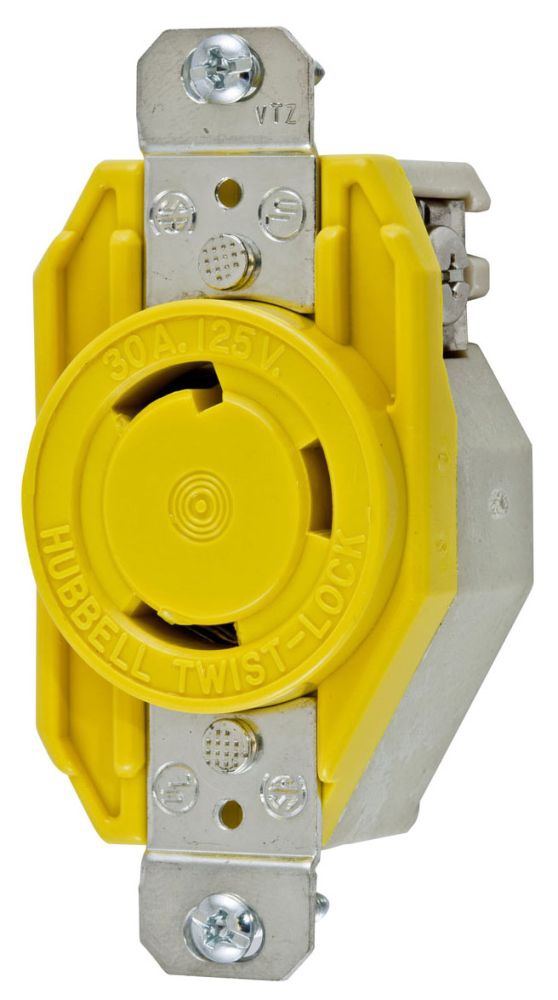

| Description Long | Locking Devices, Twist-Lock, Marine Grade, Corrosion Resistant Single Flush Receptacle, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-30R, Screw Terminal, Nylon face, Yellow. |
| Description Short | Locking Devices, Twist-Lock, Marine Grade, Flush Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Yellow |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Corrosion Resistant |
| FEATURES Bullets | Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection;Face color coding by voltage facilitates locating and mating of proper devices;Nickel plated brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems |
| Face Outer Diameter | 1.563 Inch |
| Families | 573 |
| Family Description | Receptacles & Surge Protectors |
| Ground Type | Grounding |
| Horsepower Maximum | 2 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG RCPT, CM, 30A 125V, L5-30R, YL;30A 125V T/L RCPT |
| Item Number | 80819 |
| Item Type | Single Flush Receptacles |
| Long Description | TWIST-LOCK RECEPTACLE, SINGLE TYPE; NYLON (FACE), RTP (BASE) MATERIAL; YELLOW COLOR; L5-30R CONFIGURATION; 3 WIRE(S); UL 94/498, CSA C22.2, FED.SPEC W-C-596 APPROVAL; 125 VOLT AC 1-PHASE VOLTAGE RATING; FLUSH MOUNT MOUNTING; 30 AMP CURRENT RATING |
| MSDS Form Number | * |
| Material | Nylon;Nylon (Face), RTP (Base) |
| Material Mounting Hardware | Screw Mounting |
| Model | HBL |
| Mounting | Screw Mount;Flush Mount |
| NEMA Rating | L5-30R |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 1 |
| Product Description | LKG RCPT, CM, 30A 125V, L5-30R, YL |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Marine Grade, Flush Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Yellow |
| ProductLine | HUBW |
| Size | 3.28 in x 1.70 in x 1.31 in |
| Special Features | Corrosion Resistant |
| Standard | Listed to UL 498;Fed.Spec. W-C-596;Certified to CSA C22.2 No.42 |
| Sub Brand | Twist-Lock Devices |
| Type | Single Flush Receptacle;Single |
| UNSPSC | 39121406 |
| UPC | 78358580819 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125 VAC;125 Volt AC 1-Phase |
| Voltage Rating Description | 125 VAC |
| Wattage | 3,750 W |
| Wire Size | #16 AWG to #8 AWG |
| Wiring | Back, Side |
