| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL26W49 |
| Amperage Rating | 20 A |
| Application | Industrial/Commercial |
| Base Price | 0.0000 |
| Connection | Screwed Terminal |
| Cord Diameter | 0.325-0.750 in |
| Cord Type | All Portable |
| CountryOfOrigin | PR |
| Current Amperage Rating | 20 A |
| DDCATEGORY | 574 |

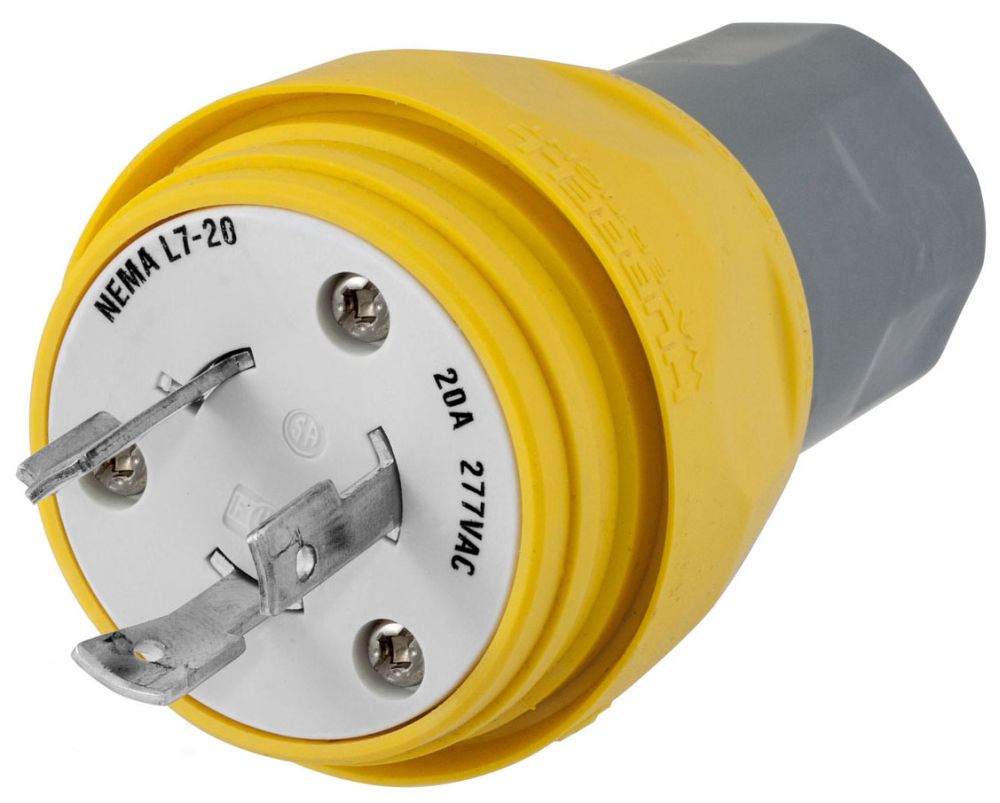

| Description Long | Watertight Devices, Twist-Lock Plug, 20A, 277V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L7-20P, Yellow |
| Description Short | PLUG, NEMA L7-20P, 20A 277VAC |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Watertight |
| FEATURES Bullets | Smooth body design minimizes collection points simplifying the wash down process;Stainless steel hardware and corrosion-resistant connection points;Strain relief nut always seals on the body, minimizing debris collection |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 277 VAC |
| Families | 574 |
| Family Color | Yellow |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| InvoiceDescription | PLUG, NEMA L7-20P, 20A 277VAC;20A/277V PLUG |
| Material | Elastomeric/Composite |
| Mounting | Cord |
| NEMA Rating | L7-20P |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Pallet Quantity | 850 |
| Performance | "Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30C max per UL498 at rated current;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40C (without impact) to +60C continuous;Environmental - UV resistance - All exposed materials are UV stabilized;Mechanical - Cord Accommodation - 0.375""-0.875"" (9.5-22.2)" |
| Phase | 1 |
| Product Description | PLUG, NEMA L7-20P, 20A 277VAC |
| Product Keywords | WEBREADY |
| Product Name | Watertight Devices, Twist-Lock Plug, 20A, 277V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L7-20P, Yellow |
| ProductLine | HUBW |
| Size | 2.51 in x 2.51 in x 3.96 in |
| Special Features | Watertight |
| Standard | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Standards RoHS Compliance Status | CM |
| Type | Plugs |
| UNSPSC | 39121402 |
| UPC | 78358513141 |
| Voltage Rating | 277 |
| Voltage Rating Description | 277 VAC |
| Wire Size | Max. Cord: 10/3 S, 10/4 S, 10/5 S;Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S |
