| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2710SR |
| Additional Information | Contact Material Brass; Number of Gangs 1; Temperature Rating -40 to 60 Deg C |
| Amperage Rating | 30 A |
| Application | Heavy Duty Industrial Shrouded |
| Approval | UL 94/498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Hubbell Wiring Device-Kellems;Twist-Lock[R], Safety-Shroud[R] |
| Carton Quantity | 10 |
| Catalog Number | HBL2710SR |
| Color | Gray/White;Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | L14-30R |
| Connection | Screw Terminal |
| Constructional Feature | Impact Resistant, Corrosion Resistant |
| CountryOfOrigin | PR |
| Current Amperage Rating | 30 A |
| Current Rating | 30 A;30 Ampere |
| DDCATEGORY | 573 |

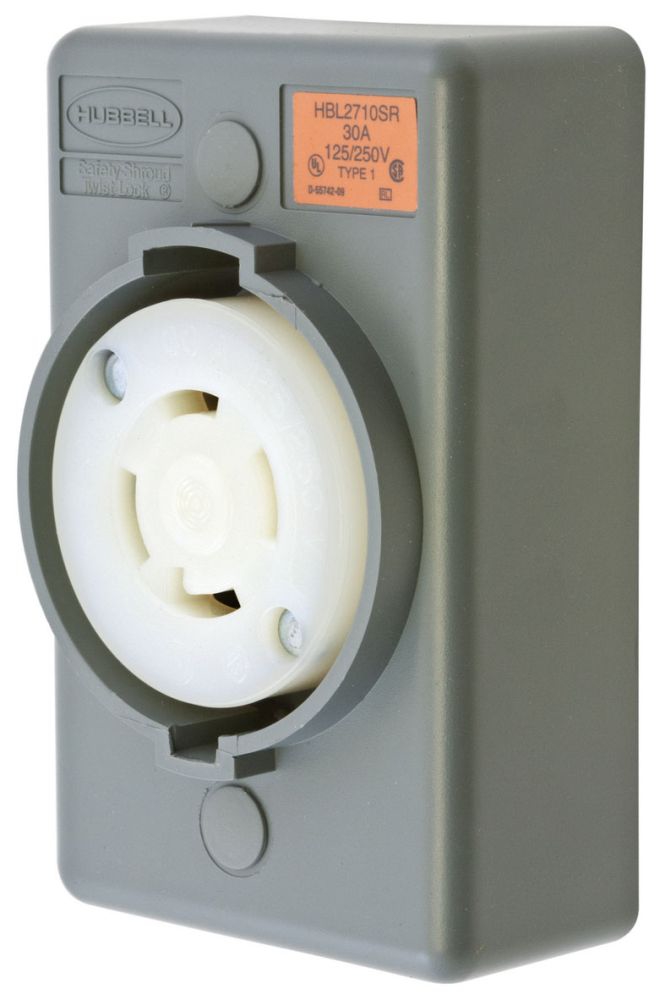

| Description Short | Locking Devices, Twist-Lock, Safety Shroud, Surface Mount Receptacle, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R, Screw Terminal, Gray |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected;Catalog number and color coded voltage rating are visible even when in use;Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments |
| Families | 573 |
| Family Description | Receptacles & Surge Protectors |
| Ground Type | Grounding |
| Horsepower Maximum | 2(2) |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG S/SHRD RCPT, L14-30R, SURF MT, GY;LKG RCPT-NMA L14-30R |
| Item Number | 23466 |
| Item Type | 30A Safety-Shroud Receptacle |
| Long Description | TWIST-LOCK RECEPTACLE, SINGLE LOCKING TYPE; VALOX MATERIAL; GRAY COLOR; L14-30R CONFIGURATION; 4 WIRE(S); UL 94/498, CSA C22.2 APPROVAL; 125/250 V VOLTAGE RATING; SURFACE MOUNT MOUNTING; 30 AMPERE CURRENT RATING; GROUNDING; 3 POLE(S) |
| MSDS Form Number | * |
| Material | Valox |
| Material Mounting Hardware | Screw Mounting |
| Model | HBL |
| Mounting | Screw Mount;Surface Mount |
| NEMA Rating | L14-30R |
| Noun | * |
| Number Of Gang S | 1-Gang |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C, Minimum -40C (w/o impact);Mechanical - Terminal Identification - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 1 |
| Product Description | LKG S/SHRD RCPT, L14-30R, SURF MT, GY |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Safety Shroud, Surface Mount Receptacle, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R, Screw Terminal, Gray |
| ProductLine | HUBW |
| Size | 4.56 in x 2.84 in x 1.71 in |
| Special Features | Surface Mount |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Sub Brand | Twist-Lock Devices |
| Type | Receptacle;Single Locking |
| UNSPSC | 39121406 |
| UPC | 78358523466 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125/250 V |
| Voltage Rating Description | 125/250 V |
| Wattage | 7,500 W |
| Wire Size | #16 AWG to #8 AWG |
| Wiring | Back |
