| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2775 |
| Additional Information | BLADE MATERIAL BRASS; OPERATING TEMPERATURE -40 TO 60 DEG C |
| Amperage Rating | 30 A |
| Application | Extra Heavy Duty Industrial |
| Approval | UL FS |
| Base Price | 0.0000 |
| Brand Name | Hubbell Wiring Device-Kellems;INSULGRIP[R] |
| Carton Quantity | 10 |
| Catalog Number | HBL2775 |
| Color | White;WHITE |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | L20-30P |
| Connection | Screw Terminals |
| CountryOfOrigin | US |
| Current Amperage Rating | 30 A |
| Current Rating | 30 A;30 AMPERE |
| DDCATEGORY | 574 |
| Description Long | Locking Devices, Twist-Lock, Industrial, Flanged Inlet, 30A 3-Phase Wye 347/600V AC, 4-Pole 4-Wire Non-Grounding, L20-30P, Screw Terminal, White |
| Description Short | Locking Devices, Twist-Lock, Industrial, Flanged Inlet, 30A 3-Phase Wye 347/600V AC, 4-Pole 4-Wire Non-Grounding, L20-30P, Screw Terminal, White |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Impact resistant thermoplastic construction;Backwired terminations for ease of installation;#10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson);Mounting screws included |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | NON GROUNDING |

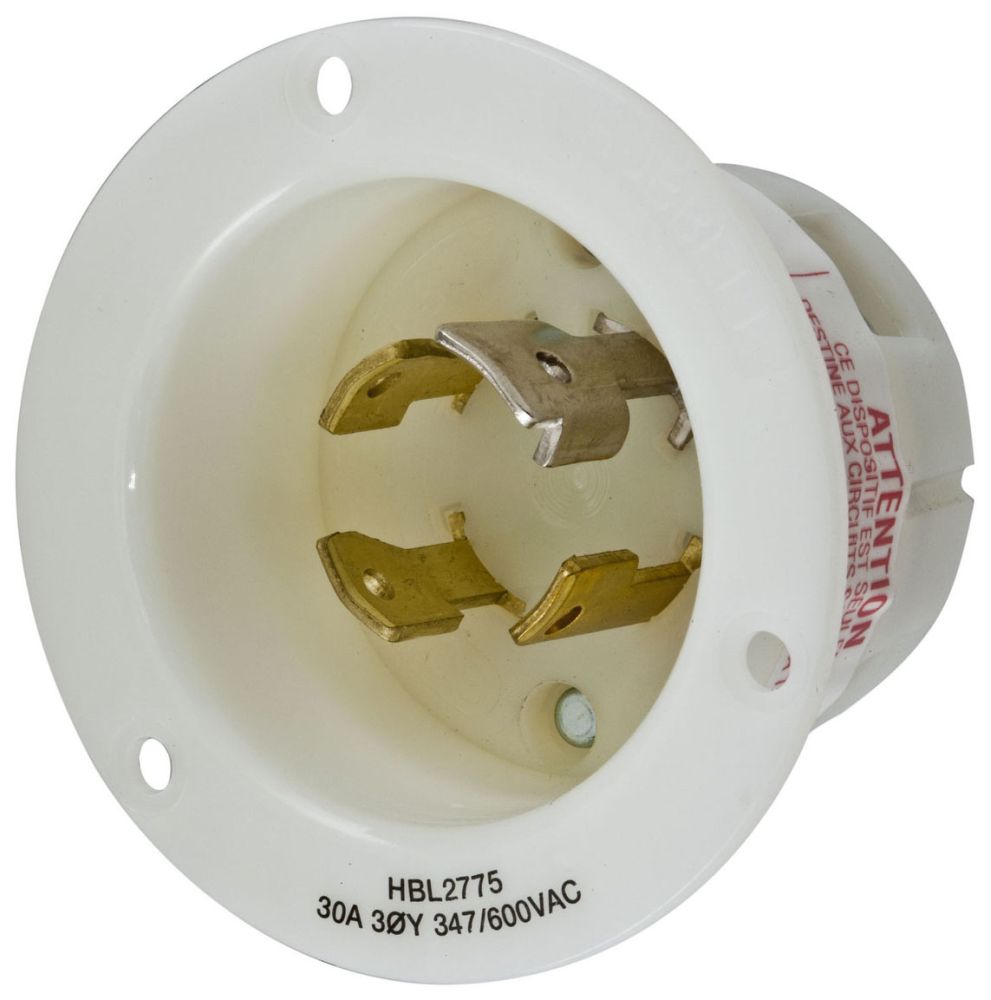

| Image Location | * Image |
| Industry | ELX |
| Insulation | Insulated Body |
| InvoiceDescription | LKG FLG-INLT, 30A 3PH 347/600V, L20-30P;FLGD INLET-NMA L20-30P |
| Item Number | 03953 |
| Item Type | 30A Non-Grounding Insulgrip Flanged Inlet |
| Long Description | TWIST-LOCK INLET, POLARIZED TYPE; NYLON CASING MATERIAL; WHITE COLOR; L20-30P CONFIGURATION; 4 WIRE(S); UL FS APPROVAL; 347/600 VAC STAR 3 PHASE VOLTAGE RATING; 30 AMPERE CURRENT RATING; NON GROUNDING; 4 POLE(S); INSULGRIP[R] BRAND; BLADE MATERIAL BRASS |
| MSDS Form Number | * |
| Material | Nylon;NYLON CASING |
| Material Mounting Hardware | Screw Mounting |
| Model | HBL |
| Mounting | Screw Mount |
| NEMA Rating | L20-30P |
| Noun | * |
| Number Of Poles | 4 |
| Number Of Wires | 4 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C. Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 3 |
| Product Description | LKG FLG-INLT, 30A 3PH 347/600V, L20-30P |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Industrial, Flanged Inlet, 30A 3-Phase Wye 347/600V AC, 4-Pole 4-Wire Non-Grounding, L20-30P, Screw Terminal, White |
| ProductLine | HUBW |
| Size | 3.06 in x 3.06 in x 2.27 in |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Sub Brand | Twist-Lock Devices |
| Type | Flanged Inlet;POLARIZED |
| UNSPSC | 39121406 |
| UPC | 78358503953 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 3 Phase WYE 347/600 VAC;347/600 VAC STAR 3 PHASE |
| Voltage Rating Description | 3 Phase WYE 347/600 VAC |
| Wattage | 18,000 W |
| Wire Size | #16 AWG to #8 AWG |
