| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL27W09 |
| Amperage Rating | 20 A |
| Application | Power Connection |
| Base Price | 0.0000 |
| Color | Yellow |
| Connection | Screw Terminals |
| Cord Diameter | 0.375-1.125 in |
| CountryOfOrigin | PR |
| Current Amperage Rating | 20 A |
| DDCATEGORY | 574 |

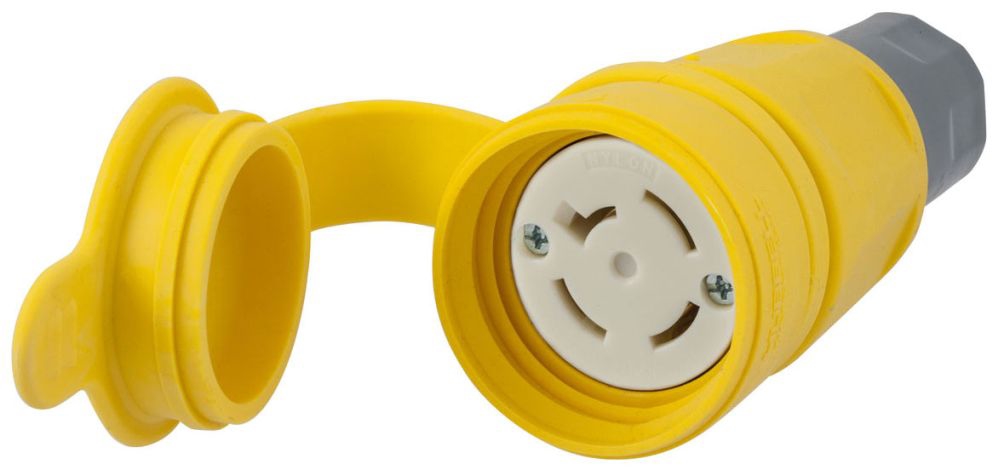

| Description Long | Watertight Twist-Lock Connector, 20A, 3 Phase WYE 120/208V AC, 4-Pole, 4 Wire, Thermoplastic elastomer, NON-NEMA |
| Description Short | Watertight Twist-Lock Connector, 20A |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Watertight |
| FEATURES Bullets | Smooth body design minimizes collection points simplifying the wash down process;Stainless steel hardware and corrosion-resistant connection points;Strain relief nut always seals on the body, minimizing debris collection |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 3-Phase Y 120/208 VAC |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| InvoiceDescription | WATERTIGHT CONN, 20A 3PH Y 120/208V;20A 3PH 120V WT CONN |
| Mounting | Cable |
| NEMA Rating | Non-NEMA |
| Number Of Poles | 4-Pole |
| Performance | "Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30C max per UL498 at rated current;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40C (without impact) to +60C continuous;Environmental - UV resistance - All exposed materials are UV stabilized;Mechanical - Cord Accommodation - 0.375""-0.875"" (9.5-22.2)" |
| Product Description | WATERTIGHT CONN, 20A 3PH Y 120/208V |
| Product Keywords | WEBREADY |
| Product Name | Watertight Devices, Twist-Lock Connector, 20A, 3 Phase WYE 120/208V AC, 4 Pole, 4 Wire, Thermoplastic elastomer, NON-NEMA, Yellow |
| ProductLine | HUBW |
| Size | 2.77 in x 2.77 in x 5.67 in |
| Special Features | Standard Product |
| Standard | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Type | Connector Body |
| UNSPSC | 39121421 |
| UPC | 78358545636 |
| Voltage Rating | 3-Phase Y 120/208 |
| Voltage Rating Description | 3-Phase Y 120/208 VAC |
