| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2801 |
| Amperage Rating | 30 A |
| Application | Extra Heavy Duty Industrial |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems |
| Carton Quantity | 30 |
| Catalog Number | HBL2801 |
| Color | Black/White |
| Connection | Terminal |
| Cord Type | All Portable |
| CountryOfOrigin | PR |
| DDCATEGORY | 0 |

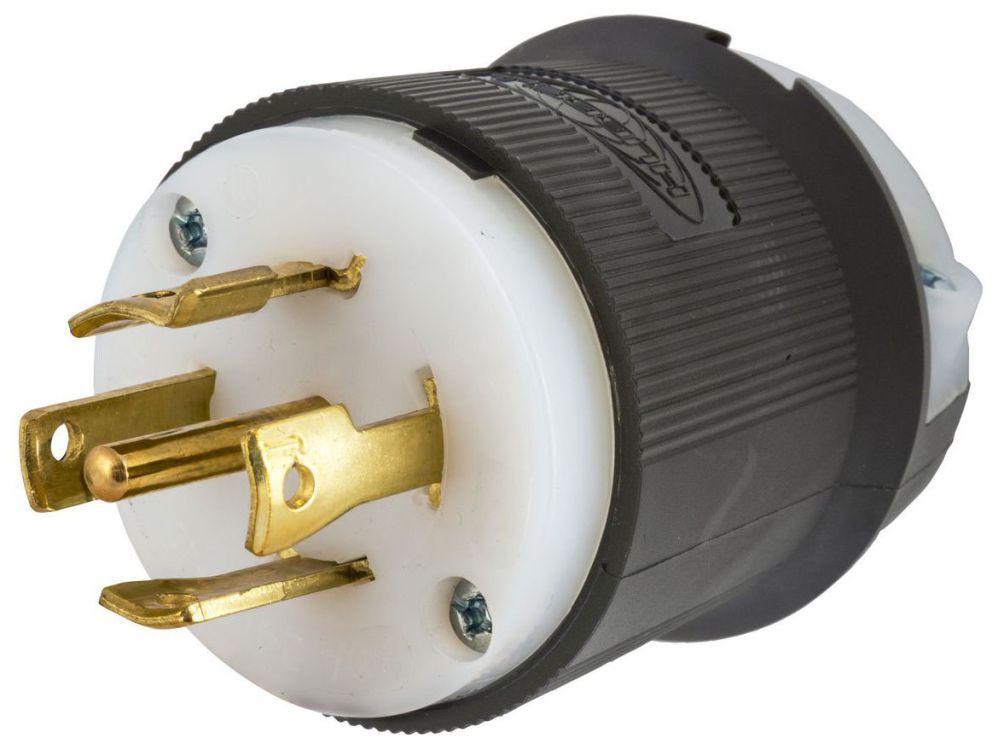

| Description Long | Locking Devices, Twist-Lock,Insulgrip Plug, 30A, 4 Pole, 5 Wire Grounding, 240/415 VAC, 3 Phase Y, NEMA L26-30P, Black and white Nylon |
| Description Short | Locking Devices, Twist-Lock,Insulgrip Plug, 30A, 4 Pole, 5 Wire Grounding, 240/415 VAC, 3 Phase Y, NEMA L26-30P, Black and white Nylon |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Ribbed nylon housing provides a secure grip and impact and chemical resistance;Superior cord grip design protects terminations from excess strain;Clear, funnel shaped wire entry for ease of termination;Integral, dust shield protects wiring chamber from dust or contaminants. |
| Families | 0 |
| Family Description | UnCategorized |
| InvoiceDescription | LKG PLUG, 30A 240/415 3PH, L26-30P, B/W;LOCKING PLUG |
| Item Type | 30A Insulgrip Plug |
| Listings | UL 498;Fed.Spec. W-C-596;CSA C22.2 No.42 |
| Material | Composite |
| Mounting | Cord Mounted |
| NEMA Rating | L26-30R |
| Number Of Poles | 4 |
| Number Of Wires | 5 |
| Performance | Electrical-Current Interrupting - Certified at full rated current;Electrical - Dielectric Voltage - 2,000V minimum;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Operating Temperatures - Maximum Continuous 75C;Minimum -40C (w/o impact);Environmental - Moisture Resistance - IP20 Suitability |
| Product Description | LKG PLUG, 30A 240/415 3PH, L26-30P, B/W |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Insulgrip Plug, 30A, 4 Pole, 5 Wire Grounding, 240/415 VAC, 3 Phase Y, NEMA L26-30P, Black and white Nylon |
| ProductLine | HUBW |
| Size | 2.21 in x 2.21 in x 2.75 in |
| Special Features | Standard Product |
| Standard | NEMA WD1 and WD5, UL498 |
| Sub Brand | Twist-Lock Devices |
| UNSPSC | 39121402 |
| UPC | 78358558032 |
| Voltage Rating | 240/415V AV |
| Wattage | Three |
| Wire Size | #16 AWG to #8 AWG |
