| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2810SR |
| Additional Information | CONTACT MATERIAL BRASS; NUMBER OF GANGS ONE; OPERATING TEMPERATURE -40 TO 60 DEG C |
| Amperage Rating | 30 A |
| Application | Heavy Duty Industrial Shrouded |
| Approval | UL FS, CSA |
| Base Price | 0.0000 |
| Brand Name | TWIST-LOCK[R] |
| Catalog Number | HBL2810SR |
| Color | GRAY |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | L21-30R |
| Connection | Screw Terminal |
| CountryOfOrigin | PR |
| Current Amperage Rating | 30 A |
| Current Rating | 30 A;30 AMPERE |
| DDCATEGORY | 573 |
| Decorative Color | Gray;White |

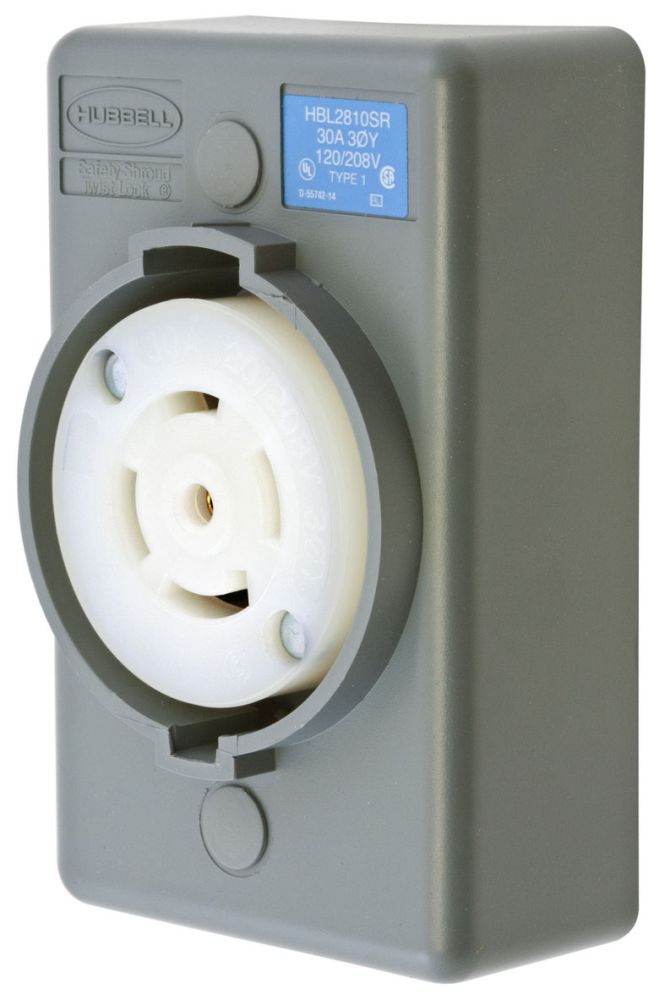

| Description Long | Locking Devices, Twist-Lock,Safety-Shroud Receptacle, 30A, 3 Phase Y 120/208V AC, 4 Pole, 5 Wire Grounding, NEMA L21-30R, RPT surface mounting, one gang, Gray |
| Description Short | Locking Devices, Twist-Lock,Safety-Shroud Receptacle, 30A, 3 Phase Y 120/208V AC, 4 Pole, 5 Wire Grounding, NEMA L21-30R, RPT surface mounting, one gang, Gray |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Accepts Hubbell shrouded and standard NEMA locking plugs;Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected;Catalog number and color coded voltage rating are visible even when in use;Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments |
| FV Current Amperage Rating | 30 A |
| Families | 573 |
| Family Description | Receptacles & Surge Protectors |
| Ground Type | GROUNDING |
| Horsepower Maximum | 3 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG S/SHRD RCPT, L21-30R, SURF MT, GY;LKG RCPT-NMA L21-30R |
| Item Number | 23506 |
| Listings | CSA C22.2 No.42;Fed.Spec. W-C-596;UL 498 |
| Long Description | TWIST-LOCK RECEPTACLE, SINGLE LOCKING TYPE; VALOX[R] MATERIAL; GRAY COLOR; L21-30R CONFIGURATION; 5 WIRE(S); UL FS, CSA APPROVAL; 120/208 VAC STAR 3 PHASE VOLTAGE RATING; SURFACE MOUNTING; 30 AMPERE CURRENT RATING; GROUNDING; 4 POLE(S) |
| MSDS Form Number | * |
| Material | VALOX[R] |
| Material Mounting Hardware | Screw Mounting |
| Material Quality | Valox |
| Mounting | Screw Mount;SURFACE |
| NEMA Rating | L21-30R |
| Noun | * |
| Number Of Gang S | 1-Gang |
| Number Of Poles | 4-Pole;4 |
| Number Of Wires | 5-Wire Grounding;5 |
| Performance | Electrical - Dielectric Voltage - Withstands 2,000V minimum;Electrical-Current Interrupting - Certified for current interrupting at full rated current;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Minimum -40C (w/o impact) |
| Phase | 3 |
| Product Description | LKG S/SHRD RCPT, L21-30R, SURF MT, GY |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Safety-Shroud Receptacle, 30A, 3 Phase Y 120/208V AC, 4 Pole, 5 Wire Grounding, NEMA L21-30R |
| ProductLine | HUBW |
| Rating | 120/208 V STAR 3 PHASE 30 AMPERE |
| Size | 4.56 in x 2.84 in x 1.71 in |
| Special Features | Surface Mount |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Type | Single Receptacle;SINGLE LOCKING |
| UNSPSC | 39121406 |
| UPC | 78358523506 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 120/208 VAC;120/208 VAC STAR 3 PHASE |
| Wattage | 6,240 W |
| Wire Size | #16 to #8 |
