| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL2811FC |
| Additional Information | Temperature Rating -40 to 70 Deg C; Terminal Wire Size 16 to 8 AWG; Enclosure IP20; Includes Clear Polycarbonate Terminal Retainer, Brass Blades, #10 to 32 Brass (Phillips/Slotted/Robertson) Terminal Screw, Cold Rolled Steel Nickel Plated Terminal Clamp, |
| Amperage Rating | 30 A |
| Application | Extra Heavy Duty Industrial |
| Approval | UL 94, CSA C22.2 |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems;Twist-Lock[R], Insulgrip[R] |
| Carton Quantity | 30 |
| Catalog Number | HBL2811FC |
| Color | Black/White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | L21-30P |
| Constructional Feature | Chemical Resistant |
| Cord Range | "0.350""-1.150"" (9-29)" |
| Cord Size | 0.35 to 1.15 Inch |
| Cord Type | All Listed Portables |
| CountryOfOrigin | PR |
| Current Amperage Rating | 30 A |
| Current Rating | 30 A;30 Ampere |
| DDCATEGORY | 574 |
| Description Long | Twist-Lock,Insulgrip Plug, 30A, 3 Phase Y 120/208V AC, 4-Pole, 5 Wire Grounding, NEMA L21 and white for flat cable |
| Description Short | Twist-Lock Insulgrip Plug 30A |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Ribbed nylon housing provides a secure grip and impact and chemical resistance;Superior cord grip design for flat cable protects terminations from excess strain;Clear, funnel shaped wire entry for ease of termination;Integral dust shield protects wiring chamber from dust or contaminants |
| FV Voltage Rating Description | 120/208 VAC | |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Horsepower Maximum | 3 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | CAT#HBL2811, FLAT CABLE MOD;30A INSGRP PLUG |
| Item Number | 03997 |
| Item Type | 30A Insulgrip Plug |
| Listings | UL 498;Fed.Spec. W-C-596;CSA C22.2 No.42 |
| Long Description | LOCKING DEVICE PLUG, NYLON MATERIAL; BLACK/WHITE COLOR; L21-30P CONFIGURATION; 5 WIRE(S); UL 94, CSA C22.2 APPROVAL; 120/208 VAC VOLTAGE RATING; 30 AMPERE CURRENT RATING; GROUNDING; 4 POLE(S); CHEMICAL RESISTANT; 0.35 TO 1.15 INCH CORD SIZE |
| MSDS Form Number | * |
| Material | Nylon |
| Material Mounting Hardware | Cord Mounted |
| Model | HBL |
| NEMA Rating | L21-30P |
| Noun | * |
| Number Of Poles | 4 |
| Number Of Wires | 5 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C;Minimum -40C (w/o impact) |
| Phase | 3 |
| Product Description | CAT#HBL2811, FLAT CABLE MOD |
| Product Keywords | WEBREADY |

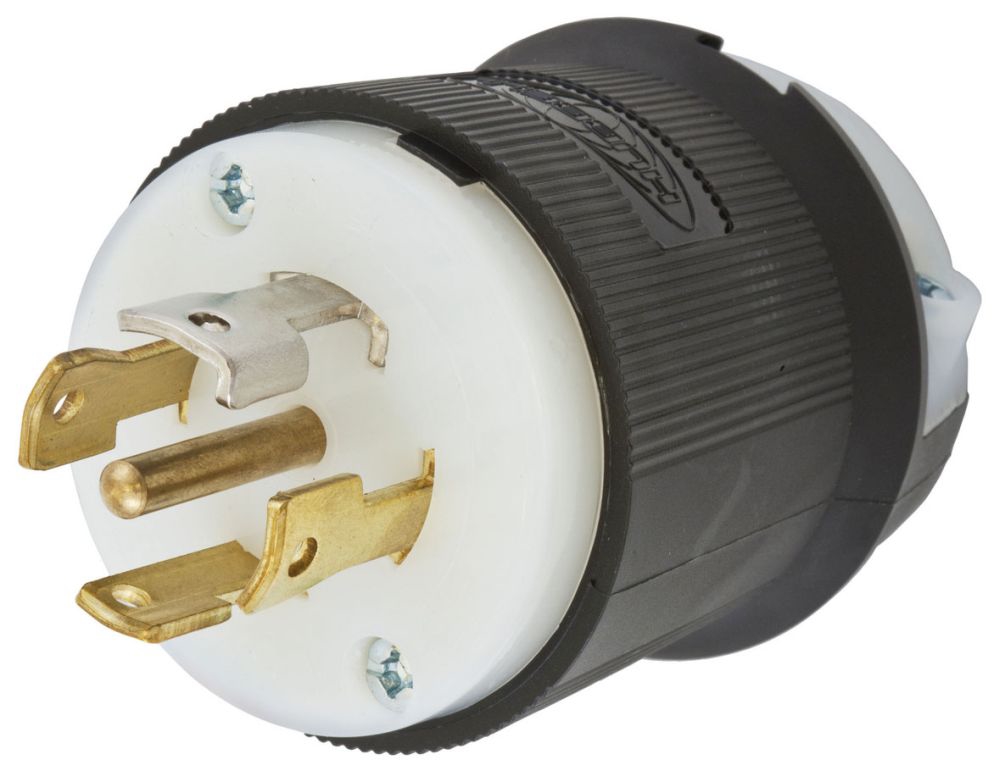

| Product Name | Locking Devices, Twist-Lock, Insulgrip Plug, 30A, 3 Phase Y 120/208V AC, 4 Pole, 5 Wire Grounding, NEMA L21-30P, Black and white for flat cable |
| ProductLine | HUBW |
| Size | 2.75 in x 2.33 in x 2.33 in |
| Special Features | Flat Cable Version |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| UNSPSC | 39121403 |
| UPC | 78358503997 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 120/208 VAC |
| Voltage Rating Description | 120/208 VAC |
| Wattage | 6,240 W |
| Wire Size | #16 AWG to #8 AWG |
