| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL28W76 |
| Additional Information | Enclosure Rating 4/4X/12/6/6P; Blade Material Brass; Temperature Rating -40 to 60 Deg C; Applicable Standard WD-1/6, ANSI |
| Amperage Rating | 30 A |
| Application | Industrial/Commercial |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems;Twist-Lock[R] |
| Carton Quantity | 10 |
| Catalog Number | HBL28W76 |
| Color | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | L16-30P |
| Connection | Screw Terminals |
| Constructional Feature | Corrosion Resistant, Water Tight |
| Cord Diameter | 0.385-1.050 in |
| Cord Size | 0.375 to 1 Inch |
| Cord Type | All Portable |
| CountryOfOrigin | CN |
| Current Amperage Rating | 30 A |
| Current Rating | 30 Amp |
| DDCATEGORY | 574 |

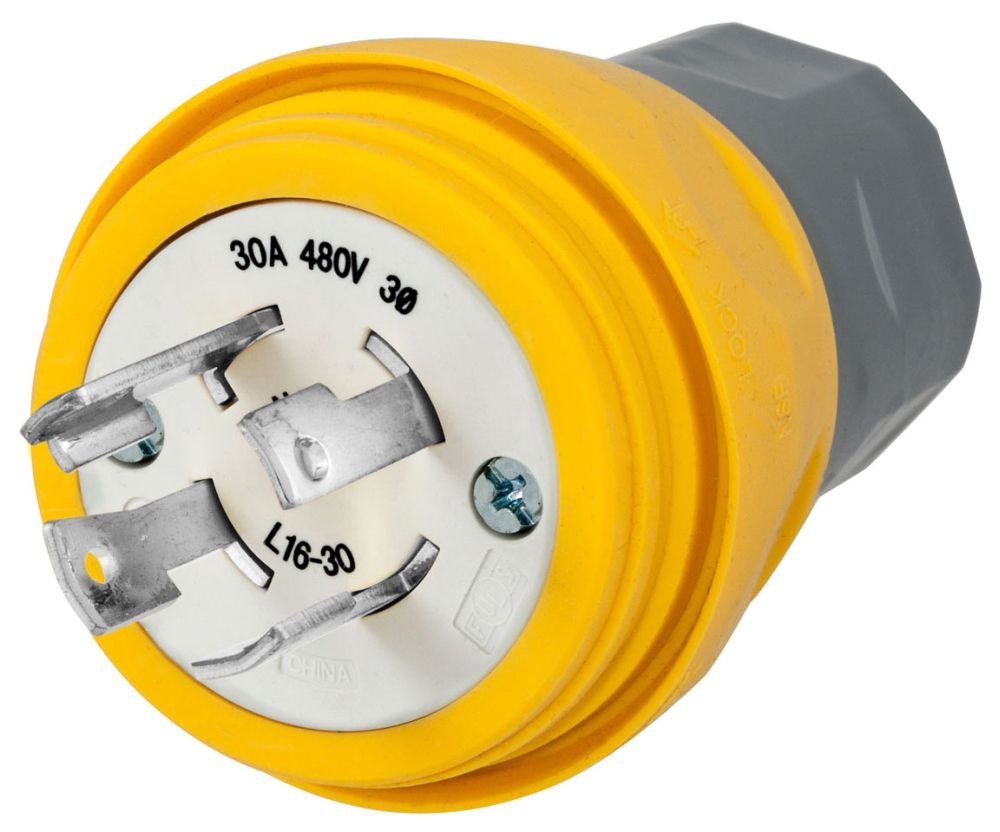

| Description Long | Watertight Devices, Twist-Lock Plug, 30A, 3 Phase 480V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-30P, Yellow. |
| Description Short | PLUG, W/TIGHT, 3P 30A 480V, L16-30P, YL |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Watertight |
| FEATURES Bullets | Smooth body design minimizes collection points simplifying the wash down process;Strain relief nut always seals on the body, minimizing debris collection;Stainless steel hardware and corrosion-resistant connection points |
| FV Current Amperage Rating | 30 A |
| FV Voltage Rating Description | 3 Phase 480 VAC |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | PLUG, W/TIGHT, 3P 30A 480V, L16-30P, YL;30A/480V WT PLUG |
| Item Number | 13172 |
| Item Type | 30A Watertight Twist-Lock Plug |
| Long Description | LOCKING DEVICE PLUG, POLARIZED TYPE; THERMOPLASTIC ELASTOMER MATERIAL; YELLOW COLOR; L16-30P CONFIGURATION; 4 WIRE(S); UL 498, CSA C22.2 APPROVAL; 480 VOLT AC 3-PHASE VOLTAGE RATING; 30 AMP CURRENT RATING; 3 POLE(S); CORROSION RESISTANT, WATER TIGHT |
| MSDS Form Number | * |
| Material | Elastomeric/Composite;Thermoplastic Elastomer |
| Mounting | Cord Mounted |
| NEMA Rating | L16-30P |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Performance | "Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30C max per UL498 at rated current;Environmental - UV resistance - All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40C (without impact) to +60C continuous;Mechanical - Cord Accommodation - 0.375""-1.000"" (9.5-25.4)" |
| Phase | 3 |
| Product Description | PLUG, W/TIGHT, 3P 30A 480V, L16-30P, YL |
| Product Keywords | WEBREADY |
| Product Name | Watertight Devices, Twist-Lock Plug, 30A, 3 Phase 480V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-30P, Yellow. |
| ProductLine | HUBW |
| Size | 2.77 in x 2.77 in x 3.94 in |
| Special Features | Watertight |
| Standard | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Sub Brand | Twist-Lock |
| Type | Plugs;Polarized |
| UNSPSC | 39121402 |
| UPC | 78358513172 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 3 Phase 480 VAC;480 Volt AC 3-Phase |
| Voltage Rating Description | 3 Phase 480 VAC |
| Wire Size | Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S |
