| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL29W76BK |
| Amperage Rating | 30 A |
| Application | Industrial/Commercial |
| Color | Black |
| Conductor Range | #14AWG to #10AWG |
| Connection | Terminal Screws |
| Cord Diameter | 0.385-1.050 in |
| CountryOfOrigin | PR |
| Current Amperage Rating | 30 A |
| DDCATEGORY | 574 |

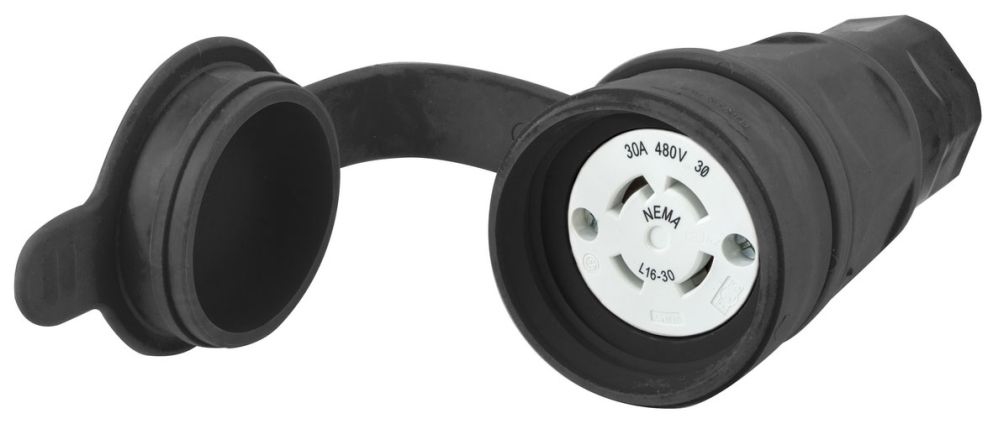

| Description Long | Watertight Twist-Lock Connector, 30A, 3 Phase 480V AC, 3-Pole, 4 Wire, Thermoplastic elastomer, NEMA L16 |
| Description Short | Watertight Twist-Lock Connector, 30A |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Water Tight |
| FEATURES Bullets | Smooth body design minimizes collection points simplifying the wash down process;Stainless steel hardware and corrosion-resistant connection points;Strain relief nut always seals on the body, minimizing debris collection |
| FV Current Amperage Rating | 30 A |
| FV Voltage Rating Description | 3 Phase 480 VAC |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Insulation | Insulated Body |
| InvoiceDescription | CONN, W/TIGHT, 3P 30A 480V, L16-30R, BK;3P 30A 480V CONN |
| Material | Elastomer/Composite |
| Mounting | Cord |
| NEMA Rating | L16-30R |
| Number Of Conductors | 4 |
| Number Of Poles | 3-Pole |
| Performance | "Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30C max per UL498 at rated current;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40C (without impact) to +60C continuous;Environmental - UV resistance - All exposed materials are UV stabilized;Mechanical - Cord Accommodation - 0.375""-1.000"" (9.5-25.4)" |
| Product Description | CONN, W/TIGHT, 3P 30A 480V, L16-30R, BK |
| Product Keywords | WEBREADY |
| Product Name | Watertight Devices, Twist-Lock Connector, 30A, 3 Phase 480V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-30R, Black |
| ProductLine | HUBW |
| Size | 2.77 in x 2.77 in x 5.67 in |
| Special Features | Watertight |
| Standard | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Standards RoHS Compliance Status | CM |
| Temperature Rating Maximum | 167.00000 F |
| Type | Connector Body |
| UNSPSC | 39121421 |
| UPC | 78358513190 |
| Voltage Rating | 3 Phase 480 |
| Voltage Rating Description | 3 Phase 480 VAC |
