| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL300MBK |
| Additional Information | Applicable Standard NEC, ANSI/NFPA 70 |
| Amperage Rating | 300 A |
| Application | High Ampacity Connections;Entertainment, Theme Park, Carnival Equipment, Concert, Movie Making |
| Approval | UL, CUL, CSA C22.2 |
| Base Price | 0.0000 |
| Cable Size | 6 to 2/0 AWG |
| Catalog Number | HBL300MBK |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Connection | Screwed Terminal |
| Connection Type | Double Set Screw |
| Contact Material | Brass |
| Cord Type | Listed SC/PPC Type |
| CountryOfOrigin | CN |
| Current Amperage Rating | 300 A |
| Current Rating | 300 Amp |
| DDCATEGORY | 574 |
| Decorative Color | Black |

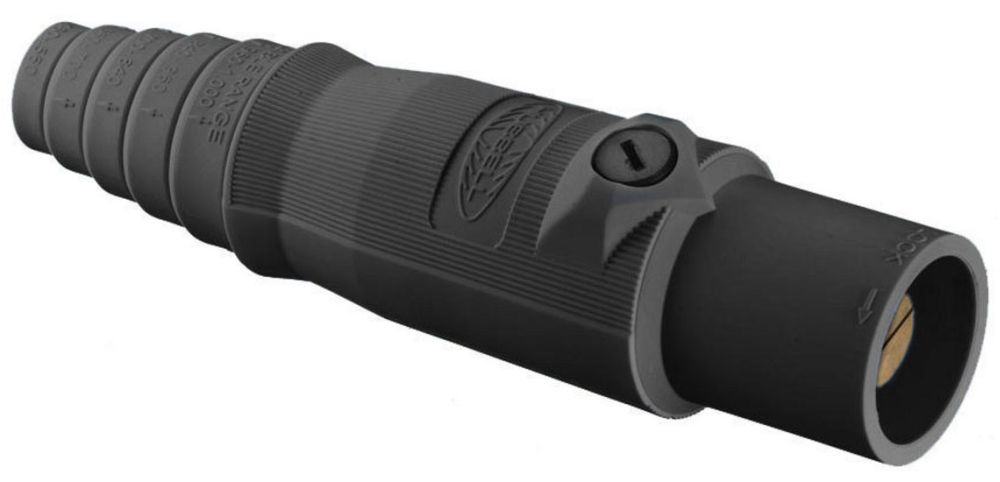

| Description Long | Heavy Duty Products, Single Pole Devices, Industrial Grade, Male, Plug, 300A, 600V AC/DC, Single Conductor, Double Set Screws, Black |
| Description Marketing Copy | Hubbell Wiring DeviceKellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve. |
| Description Short | Heavy Duty Products, Single Pole Devices, Industrial Grade, Male, Plug, 300A, 600V AC/DC, Single Conductor, Double Set Screws, Black |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Enclosure | NEMA 3R/4X/12 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Insulgrip Style Housing for Superior Gripping;Large Raised Alignment Arrow aids in the mating of devices;Non-Conductive Retaining Screw locks contacts in place |
| FV Current Amperage Rating | 300 A |
| FV Voltage Rating Description | 600V AC/DC |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Image Location | * Image |
| Industry | ELX |
| Insulator Color | Black |
| Insulator Material | Thermoplastic Elastomer |
| InvoiceDescription | SINGLEPOLE, 300A MALE PLUG, BLACK;300A BLK ML PLUG |
| Item Number | 11208 |
| Long Description | CAM TYPE IN-LINE PLUG, MALE TYPE; 1.95 INCH DIAMETER X 7.01 INCH LENGTH SIZE; DOUBLE SET SCREW CONNECTION TYPE; 6 TO 2/0 AWG CABLE SIZE; UL, CUL, CSA C22.2 APPROVAL; ENTERTAINMENT, THEME PARK, CARNIVAL EQUIPMENT, CONCERT, MOVIE MAKING APPLICATION |
| MSDS Form Number | * |
| Material | Composite |
| Model | 16 |
| Mounting | Cord |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Poles | 1 |
| Number Of Wires | 1 |
| Pallet Quantity | 1800 |
| Performance | 250V DC Maximum;Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #6 to 2/0 AWG |
| Phase | 1 |
| Product Description | SINGLEPOLE, 300A MALE PLUG, BLACK |
| Product Keywords | WEBREADY |
| Product Name | Heavy Duty Products, Single Pole Devices, Industrial Grade, Male, Plug, 300A, 600V AC/DC, Single Conductor, Double Set Screws, Black |
| ProductLine | HUBW |
| Series | Series 16 |
| Size | Standard Sized;1.95 Inch Diameter x 7.01 Inch Length |
| Special Features | Standard Product |
| Standard | National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12 |
| Type | Plugs;Male |
| UNSPSC | 39121402 |
| UPC | 78358511208 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 600 AC, 250 DC Max;600 Volt AC, 250 Volt DC |
| Voltage Rating Description | 600V AC/DC |
| Wattage | 240000 W |
| Wire Size | #4 to #2/0 |
